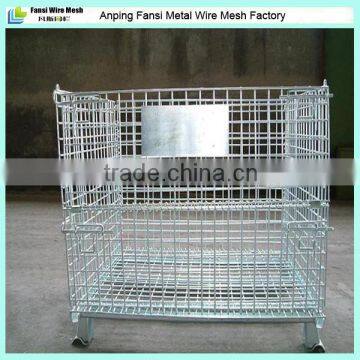

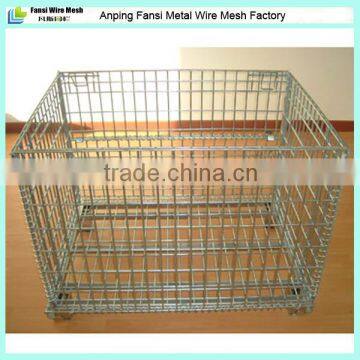

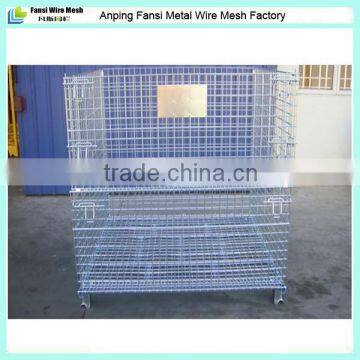

Half Open Collapsible Welded Mesh Container

Specifications

 Half open collapsible welded mesh container :

1.The specification

Welded Wire Container Type 1030*840*850

Technical Information:

This wire containers have an outside dimmension of 1030*840*850mm and an outside dimmension of 950*760*700mm.

Wire diameter applied for this container: 6mm
Opening sizes: 50x50mm
Feet height of wire container: 100mm
Loading capacity: 1300 kg

Volume: 0.52m3
Stack: 3
Surface treatment of wire: Zinc coated
Style: Half open containers

Wire Container Type 1200*1000*900

Technical Information:

This wire containers have an outside dimmension of 1230*1040*900mm and an outside dimmension of 1150*960*750mm.

Wire diameter applied for this container: 6.2mm
Opening sizes: 50x50mm
Feet height of wire container: 100mm
Loading capacity: 1700 kg

Volume: 0.84m3
Stack: 3
Surface treatment of wire: Zinc coated
Style: Half open containers

Wire Container Type 1000*800*850

Technical Information:

This wire containers have an outside dimmension of 1040*840*850mm and an outside dimmension of 950*760*700mm.

Wire diameter applied for this container: 6mm
Opening sizes: 50x100mm
Feet height of wire container: 100mm
Loading capacity: 800 kg
Weight: 46 kg
Volume: 0.52m3
Stack: 3
Surface treatment of wire: Zinc coated
Style: Half open containers

2. Folding illustrative picture

3.The material:Q235 low carbon steel wire,stainless steel wire etc.

4. Characters:

(1)using the high quality cold-rolled steel welded by hardening

(2)high strength,and large load capacity.

(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.

(4)Surface galvanized, beautiful oxidation resistance and long service life

(5)Using international standards, and supporting the use of the container, effectively improve space utilization.

(6)It can stack each other four levels, realize the three-dimensional storage.

(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.

(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework

(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.

(10)The bottom can be installed wheels, factory internal flow is very convenient

5. Technical:

Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production

6.Regular size:

7.Basic structure:

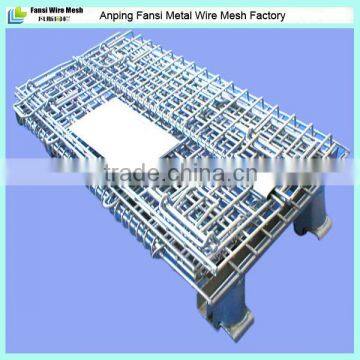

8.The foldable type:

9.Types:

10.Packing:

11.Warehouse:

12.Usage:

13.Loading container:
