Help CenterStrong Versatile Collapsible Mesh Storage Cage for Transport
Related Products
-
Collapsible and Stackable 50*50mm Wire BasketUS$ 45.58 - 75.54MOQ: 100 Sets -
Galvanized Steel 4 Layer Stacking Foldable Storage Cage(Factory)US$ 45.58 - 75.54MOQ: 100 Sets
-
4 Layer Stacking Foldable Mesh ContainerUS$ 45.58 - 75.54MOQ: 100 Sets
-
Warehouse Collapsible Welded Mesh Cage (Anping Factory)US$ 45.58 - 75.54MOQ: 100 Sets
-
Express Metal Folding Steel Storage Mesh CageUS$ 45.58 - 75.54MOQ: 100 Sets
Specifications
1.Collapsible mesh storage cage2.Warehouse using
3.Welded wire cage pallet
4.Low carbon steel wire
5.Foldable & stackable

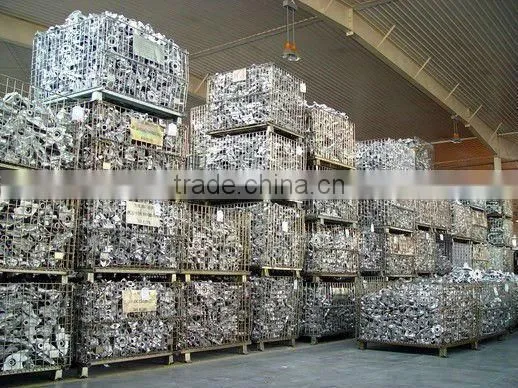

Strong versatile collapsible mesh storage cage for transport :
1.The specification
- A strong versatile storage cage ideal for transport or warehousing.
- It collapses in seconds without the need for any tools.
- Drop down gate with self-locking latches provides access even when stacked.
- With a load capacity of 1200kgs they can be stacked up to 4 high in a warehouse environment or 2 high in transport situations.
Description: Collapsible storage cage
Material: Steel construction with 6mm wire
Finish: Zinc plated
Dimensions: 1200 x 1000 x 860mm
Weight: 65kg
2.The folding type picture:
3. Folding illustrative picture
4.The material:Q235 low carbon steel wire,stainless steel wire etc.
5. Characters:
(1)using the high quality cold-rolled steel welded by hardening
(2)high strength,and large load capacity.
(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.
(4)Surface galvanized, beautiful oxidation resistance and long service life
(5)Using international standards, and supporting the use of the container, effectively improve space utilization.
(6)It can stack each other four levels, realize the three-dimensional storage.
(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.
(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework
(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.
(10)The bottom can be installed wheels, factory internal flow is very convenient
6. Technical:
Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production
7.Regular size:
stype |
overoll size(mm) |
Inner size(mm) |
Volumn |
wire diameter(mm) |
Mesh(cm) |
Weight(kg) |
Max. loading (kg) |
A-1 |
800*600*640 |
750*570*500 |
0.21 |
6.0 |
5*5 |
30 |
700 |
A-2 |
6.0 |
5*10 |
25 |
500 |
|||
B-1 |
1000*800*840 |
950*770*500 |
0.51 |
6.0 |
5*5 |
47 |
1200 |
B-2 |
6.0 |
5*10 |
42 |
800 |
|||
B-3 |
6.4 |
5*5 |
53 |
1500 |
|||
B-4 |
6.4 |
5*10 |
46 |
1000 |
|||
B-5 |
6.0 |
10*10 |
35 |
600 |
|||
B-6 |
5.0 |
5*5 |
35 |
600 |
|||
B-7 |
5.0 |
5*10 |
30 |
500 |
|||
C-1 |
1200*1000*890 |
1150*970*750 |
0.83 |
6.0 |
5*5 |
65 |
1500 |
C-2 |
6.0 |
5*10 |
56 |
1000 |
|||
C-3 |
6.4 |
5*5 |
73 |
2000 |
|||
C-4 |
6.4 |
5*10 |
62 |
1200 |
|||
C-5 |
6.0 |
10*10 |
46 |
1000 |
|||
C-6 |
5.0 |
5*5 |
47 |
1000 |
|||
C-7 |
5.0 |
5*10 |
40 |
800 |
|||
D-1 |
800*500*540 |
750*470*400 |
0.14 |
6.0 |
5*5 |
26 |
600 |
D-2 |
6.0 |
5*10 |
21 |
400 |
|||
E-1 |
1550*1120*990 |
1500*1090*850 |
1.39 |
6.0 |
5*5 |
84 |
1800 |
E-2 |
6.0 |
5*10 |
78 |
1500 |
8.Basic structure:
9.The foldable type:
10.Types:
11.Packing:
12.Warehouse:
13.Ready for shipment:
14.Usage:
15.Loading container:
