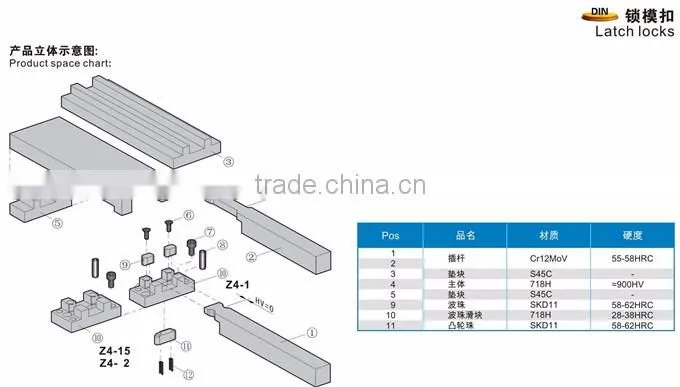

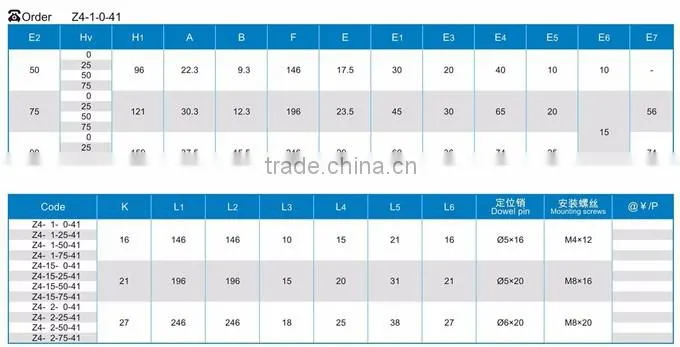

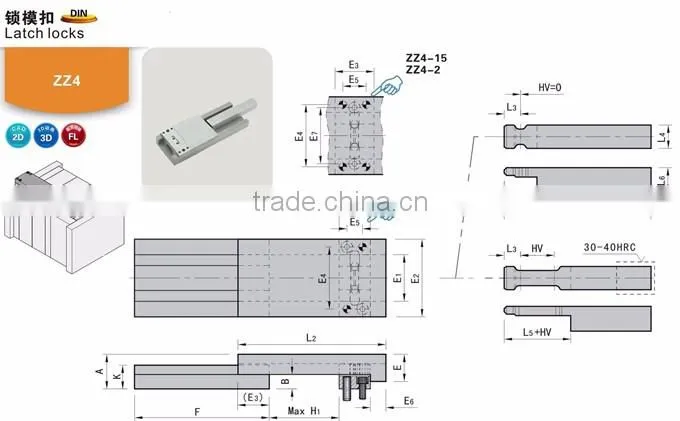

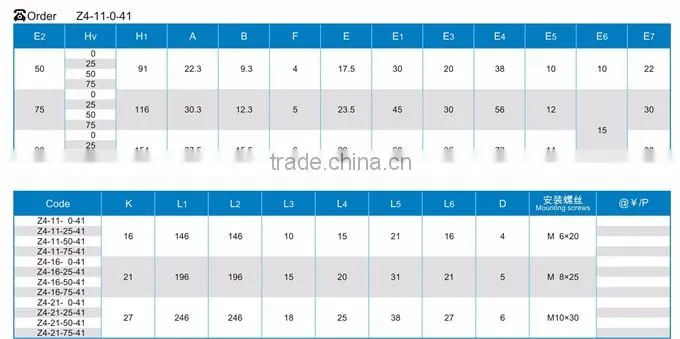

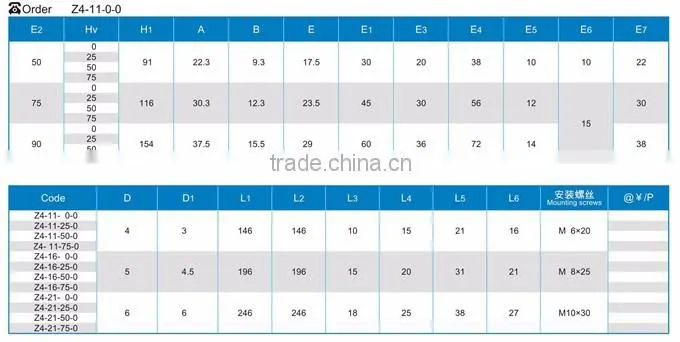

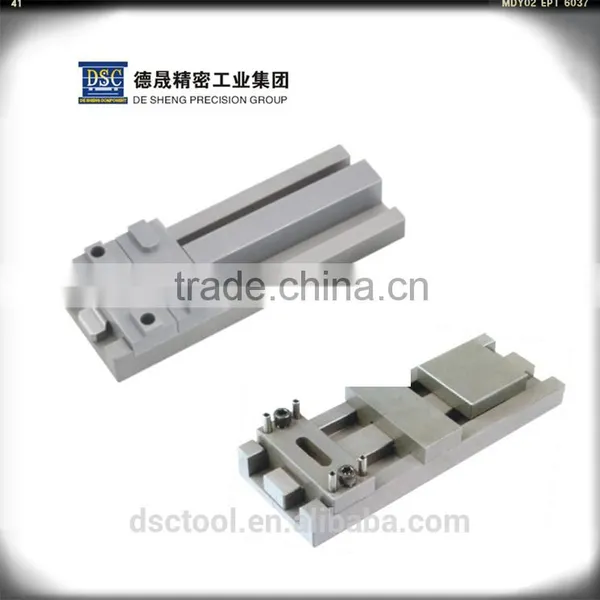

Help CenterProfessional High Precision Mold Part Z4 Latch Locks
Related Products
-
MPLK Latch Locks of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece -
MLK Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
DTP-03 Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
DTP-05 Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
DTP-08A Latch Lock Sets for Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
The state-of-the-art vacuum furnace heat treatment technology ensures the consistent quality of product. Various materials may be used depending on the operating condition.
It's reasonably designed to ensure high precision of product and smoothness at the joints, mainly fOr applications in molding, upsiding down edge and hole flanging.
Item name |
Plastic Injection Mould Slide holding devices |
Material |
SKD61 |
Hardness |
decided by material |
Heat treatment |
Carburising/Hot frequency/Vacuumed |
Standard |
DIN,AISI,JIS;ISO,DME;HASCO,STRACK,FIBRO,CUMSA,DAYTON, |
Tolerance |
0 --0.005mm or determined by material |
Delivery time |
Normally 5-7 working days |
Shipping mode |
by air (TNT, DHL, UPS, FEDEX )or by sea |
Payment terms |
T/T;Western Union;MoneyGram;Paypal |
|
Packaging |
Inner packing: packed by sponge or packed by vacuum plastic bags with anticorrosive/anti-rust oil. Out packing: cartons or upon customers' requirements. |
Features:
1. Due to double-slided locking system, safe and reliable.
2. The end of insert bar high frequency annealing treatment. easy to install and processing.
3. With the extended HV stroke latch bar, estensively usage.
Installtion instruction
1. Installed ball slide, request parallel with jiont face to install.
2. Installed insert bar, cut off insert bar length according to real demand and processing screw holes. Make sure mould is closed mould before locking tight the screw to do dowel pin holes. (Install insert bar with HV stroke, mould HV stroke shall be in completely opening condition. at the same eliminate the space between insert bar and ball. the to do with dowel pin holes.
3. Ball slide and insert bar symmetrical install on the mould, according to stroke to comfirm body length. Ensure various parts install correctly and normal runnoing, then to do with body and install fixed dowel pin holes.
4. Every mould suggest to symmetrical installed 2sets or or above 2sets, please notes same stroke and symmetrical install during opening mould, if no symmetrical install or different stroke will cause lath lock break.
5. Coordinate function test, check these parts of latch lock structure whether smoothly and stroke coincide or not.
6. First remove latch lock device to follow-up operation if need maintenance and change.
Packaging Details: Inner plastic bags and outer cartons or as per customers' requirements
Delivery Detail: 1-7 days
De Sheng Precision Mold Industrial Co., Ltd. is a specialized manufacturer for plastic mold and die components, with more than 20 years of professional experience in manufacturing, technology, sales and service.What we believe in principles are:
Competitive in Price
As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price
Quality in Material
We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60etc., are our regular materials in stock.
Precision in Size
How precision we can do in size is can meet MISUMI standard.
Fast in Delivery
Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.
Warranty in usage
We hope customer won’t worry the lifespan of our components, warranty is guaranted with every parts accordingly after shipped.
Precision / interchangeability:
Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping).In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.
High surface quality of the working surface.
With many years of manufacturing experience in this line of business, our engineers in the production line guarantees the high quality on the surface of every part, especially the working surface, thus help to extend the performance life of every part we make for customers.
Q: Are you a factory or trading company?
A: We are a factory, we have been producing hardware for more than 10 years.
Q: How does your factory do as quality control?
A: Quality is the soul of our factory. We have material inspection, process inspection, and full inspection before shipment to ensure excellent quality
.
Q: What is the material for the hardware?
A: Stainless Steel/ Brass/ Bronze /Iron/ Aluminum
Q: what is surface treatment do you have?
A: Zinc plated, nickel plated, tin plated, brass plated, silver plated, gold plated, anodizing, Heat treatment, salt fog test, chain plating, hanging plating, rolling plating, etc.
