Help CenterLLL Latch Lock Setsf Mould Parting Locks for Plastic Mold
Related Products
-
Z174 Z274 Latch Lock Setsf Mould Parting Locks for Plastic MoldUS$ 0.50 - 1.00MOQ: 1 Piece -
Professional High Precision Mold Part Z4 Latch LocksUS$ 0.50 - 1.00MOQ: 1 Piece
-
MPLK Latch Locks of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
MLK Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
DTP-03 Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
The state-of-the-art vacuum furnace heat treatment technology ensures the consistent quality of product. Various materials may be used depending on the operating condition.
It's reasonably designed to ensure high precision of product and smoothness at the joints, mainly fOr applications in molding, upsiding down edge and hole flanging.
Item name |
Plastic Injection Mould Slide holding devices |
Material |
SKD61 |
Hardness |
decided by material |
Heat treatment |
Carburising/Hot frequency/Vacuumed |
Standard |
DIN,AISI,JIS;ISO,DME;HASCO,STRACK,FIBRO,CUMSA,DAYTON, |
Tolerance |
0 --0.005mm or determined by material |
Delivery time |
Normally 5-7 working days |
Shipping mode |
by air (TNT, DHL, UPS, FEDEX )or by sea |
Payment terms |
T/T;Western Union;MoneyGram;Paypal |
|
Packaging |
Inner packing: packed by sponge or packed by vacuum plastic bags with anticorrosive/anti-rust oil. Out packing: cartons or upon customers' requirements. |
Features:
1. Compact structure, small installation space.
2. Mechanical mold locking design, safety and dependable, right opening mold, no reacting firce.
3. No mold locking load, apply to low pressure mold locking shaping.
4. No auto-lock function of closed mould, no matter first or seccord joint face during closed mould, don't worry interference phenomenon.
5. The end of insert bar adopt high frequency annealing treament, Convennient second processing.
Installtion instruction
1. Drawing 1: Install the cam holder on the movable mold.
2. Drawing 2: Install the slide holder eith tHe cam holder. it might cause a looseness between the cam lock and the slide lock.
3. Drawing 3: In order to eliminate looseness between the cam lock and slide lock, insert the releasebar temporarily fix the slide holder while pulling it parallel to the cam holder, ream the holes and press-fit the dowel pins.
4. Drawing 4: Install the die in the molding machine, cut the release bar to the necessary length, from the bolt holes and reamer pliot holes, temporarily fix the release bar, check the sliding opration for thr parting lock, and then ream the holes and press-fix the dowel pins.

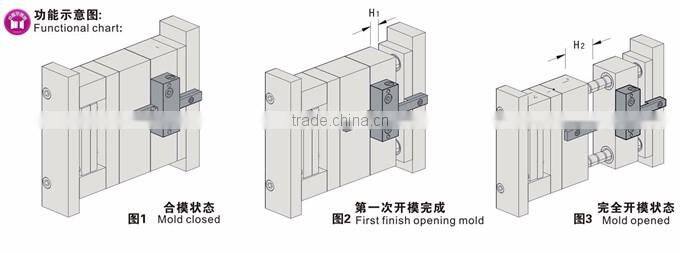

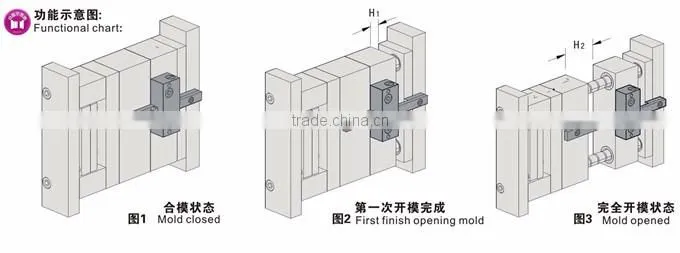

5. Drawinf 5: When the front of insert bar distance from locking base S position, first opening mould stroke will be completely open.
6. Latch lock is precition device, please rely on fixed position and symmetry install, choose corresponding quantity (2set above) anf code according to different mould size and load. (reserve three code to choose)
7. Guarantee all install insert bar of latch lock stroke can release from pull hool and lock base when opening mould. otherwise only reply on press will break latch lock.
8. Coordinate function test, check these parts of lacth lock structure whether smoothly and stroke coincide or not.
9. First remove latch lock device to follow-up opration if need maintenance and change.
Packaging Details: Inner plastic bags and outer cartons or as per customers' requirements
Delivery Detail: 1-7 days
De Sheng Precision Mold Industrial Co., Ltd. is a specialized manufacturer for plastic mold and die components, with more than 20 years of professional experience in manufacturing, technology, sales and service.What we believe in principles are:
Competitive in Price
As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price
Quality in Material
We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60etc., are our regular materials in stock.
Precision in Size
How precision we can do in size is can meet MISUMI standard.
Fast in Delivery
Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.
Warranty in usage
We hope customer won’t worry the lifespan of our components, warranty is guaranted with every parts accordingly after shipped.
Precision / interchangeability:
Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping).In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.
High surface quality of the working surface.
With many years of manufacturing experience in this line of business, our engineers in the production line guarantees the high quality on the surface of every part, especially the working surface, thus help to extend the performance life of every part we make for customers.
Q: Are you a factory or trading company?
A: We are a factory, we have been producing hardware for more than 10 years.
Q: How does your factory do as quality control?
A: Quality is the soul of our factory. We have material inspection, process inspection, and full inspection before shipment to ensure excellent quality
.
Q: What is the material for the hardware?
A: Stainless Steel/ Brass/ Bronze /Iron/ Aluminum
Q: what is surface treatment do you have?
A: Zinc plated, nickel plated, tin plated, brass plated, silver plated, gold plated, anodizing, Heat treatment, salt fog test, chain plating, hanging plating, rolling plating, etc.
