GGS Latch lock sets mould parting locks for Plastic mold slide lock

The state-of-the-art vacuum furnace heat treatment technology ensures the consistent quality of product. Various materials may be used depending on the operating condition.

    It's reasonably designed to ensure high precision of product and smoothness at the joints, mainly fOr applications in molding, upsiding down edge and hole flanging.

Features:

  1. Designed for two steps opening molds, The gradual scale allows selection of the first opening.

  2.After selecting the required stoke, fix the scale lever with the spacer.

The working principle of products:

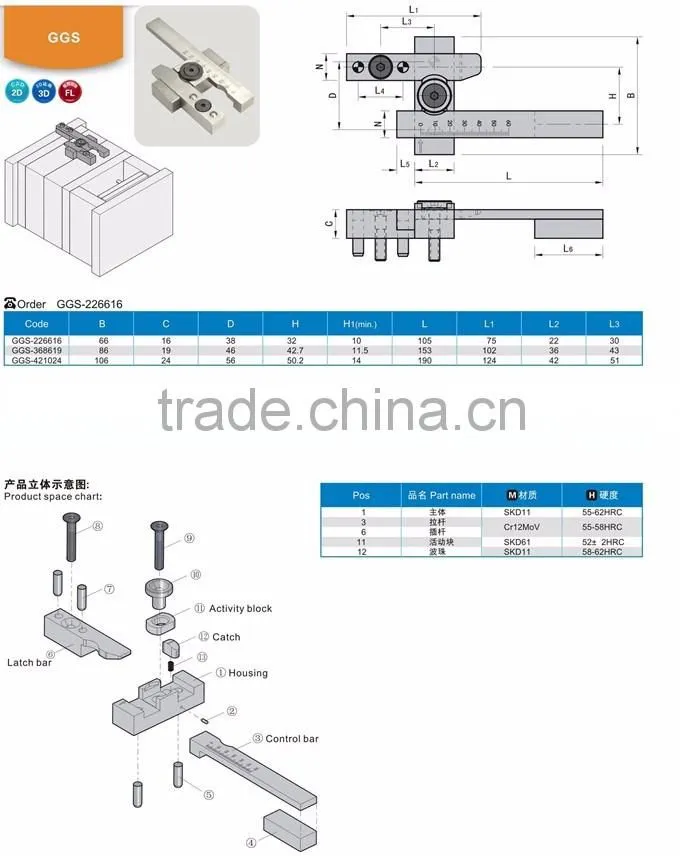

   After the 1st mold opened, the arrow of the housing(1)will point to 0 calibration of the control bar(3), the activity block is on moving, till insert into R groove of the control bar (3)completely.

   When the activity block on moving, the Latch bar(6)is opening till out of housing completely, The catch (12)are bouncing under the force of spring, and lock the activity block, this is the 2nd mold opened finish.

   The Latch bar insert into the housing again in the 1st mold closed, the latch bar press the catch, and release the activity block till the 2nd mold closed finish.

Installtion instruction

  A minimum of two or more latch lock must be mounted symmetricallly

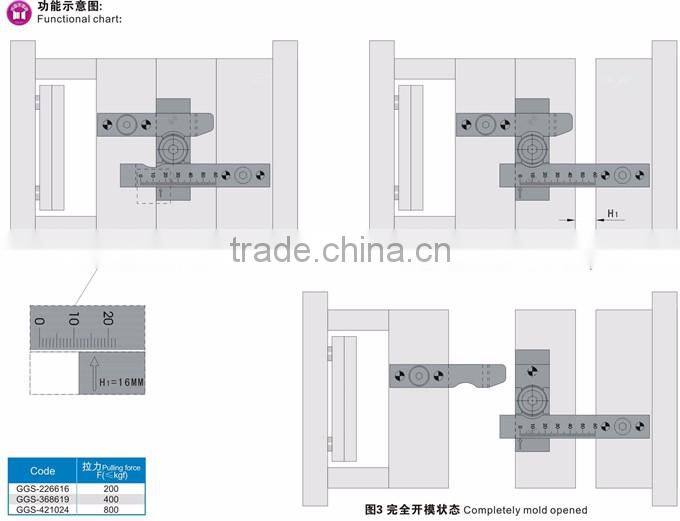

  The latchlock control of the mold opening and closing sequence on mold bases.

  Mold opening sequence: View1>View2>View3

  Mold closing sequence: View3>View2>View1

Packaging Details:             Inner plastic bags and outer cartons or as per customers' requirements

   Delivery Detail:                   1-7 days
