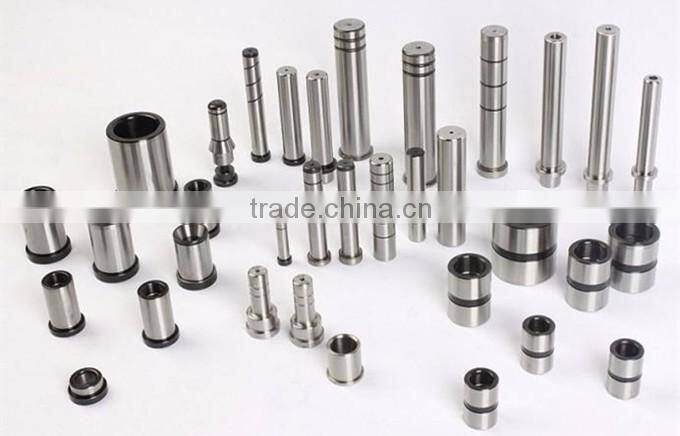

Help CenterStripper Guide Bushings for Mold Button Dies
Related Products
-
Straight Stripper Guide Bushings LOCTITE Adhesive for Mold Button DiesUS$ 0.50 - 1.00MOQ: 1 Piece -
Misumi Standard Straight Stripper Guide Bushings LOCTITE Adhesive for Mold Button DiesUS$ 0.50 - 1.00MOQ: 1 Piece
-
MPLK Latch Locks of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
MLK Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
-
DTP-03 Latch Lock Sets of Mould Parting Locks Plastic Injection MouldUS$ 0.50 - 1.00MOQ: 1 Piece
Features
Supports extremely small strokes of less than 1mm.
The solid lubricants distributed on the surface are suitable for extremely small
strokes, and this product is ideal as a stripper guide bushing.
There are no restrictions on the sliding direction. It supports strokes, rocking, and rotation movement.
Has excellent friction coefficient and wear resistance, making it suitable for high-speed strokes.
New technologies result in a larger solid lubricant content than other sintered bushings.
This allows the product to maintain stable performance over a long period of time.
Although it can be used oil-free, its performance will be further enhanced with the
use of initial break-in greasing or lubrication.
Notes
Because the bushing is impregnated with lubricating oil, do not clean the inner face.
Accurate measurement of the surface roughness is not possible due to the small
pores in the material. However, the finishing method is the
same as for other types of guide bushings.
Range of use
Lubrication condition : No lubrication
Service temperature range :
Maximum allowable speed : 60m/min
Mechanical properties
Thermal expansion coefficient :
Density : 5.8g/cm3
Test data
Test machine : Reciprocating motion test machine
Bushing :
Guide pin : VGPS20
Surface pressure : 1.2N/mm2
Speed : 30m/min, 300spm
Stroke : 50mm
Lubrication : Application of initial breaking-in grease
The state-of-the-art vacuum furnace heat treatment technology ensures the consistent quality of product. Various materials may be used depending on the operating condition.
It's reasonably designed to ensure high precision of product and smoothness at the joints, mainly for applications in molding, upsiding down edge and hole flanging.
Packaging Details: Inner plastic bags and outer cartons or as per customers' requirements
Delivery Detail: 1-7 days
De Sheng Precision Mold Industrial Co., Ltd. is a specialized manufacturer for plastic mold and die components, with more than 20 years of professional experience in manufacturing, technology, sales and service.What we believe in principles are:
Competitive in Price
As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price
Quality in Material
We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60etc., are our regular materials in stock.
Precision in Size
How precision we can do in size is can meet MISUMI standard.
Fast in Delivery
Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.
Warranty in usage
We hope customer won’t worry the lifespan of our components, warranty is guaranted with every parts accordingly after shipped.
Precision / interchangeability:
Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping).In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.
High surface quality of the working surface.
With many years of manufacturing experience in this line of business, our engineers in the production line guarantees the high quality on the surface of every part, especially the working surface, thus help to extend the performance life of every part we make for customers.
Q: Are you a factory or trading company?
A: We are a factory, we have been producing hardware for more than 10 years.
Q: How does your factory do as quality control?
A: Quality is the soul of our factory. We have material inspection, process inspection, and full inspection before shipment to ensure excellent quality
.
Q: What is the material for the hardware?
A: Stainless Steel/ Brass/ Bronze /Iron/ Aluminum
Q: what is surface treatment do you have?
A: Zinc plated, nickel plated, tin plated, brass plated, silver plated, gold plated, anodizing, Heat treatment, salt fog test, chain plating, hanging plating, rolling plating, etc.
