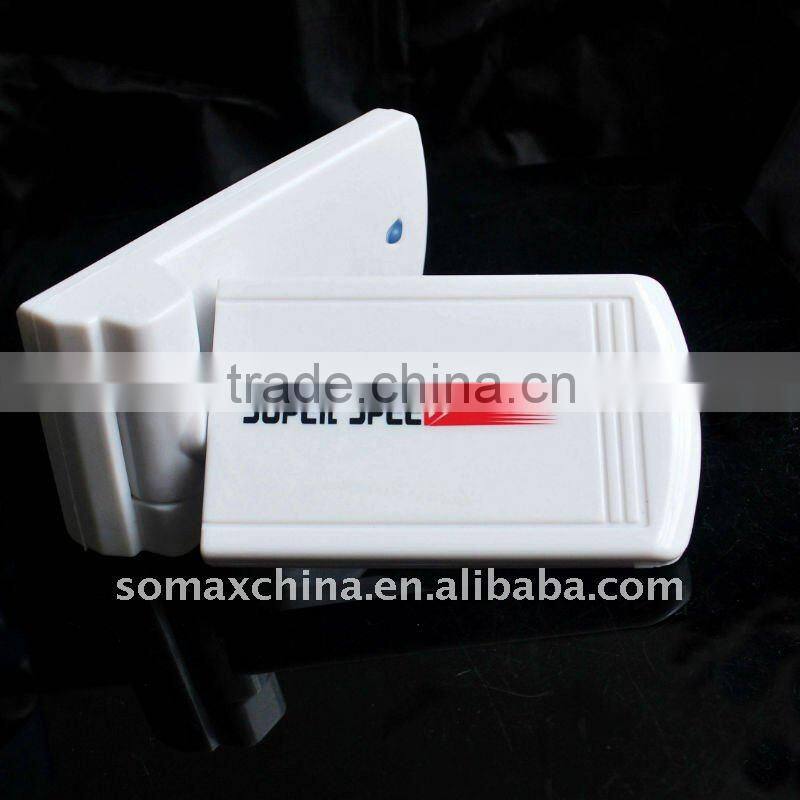

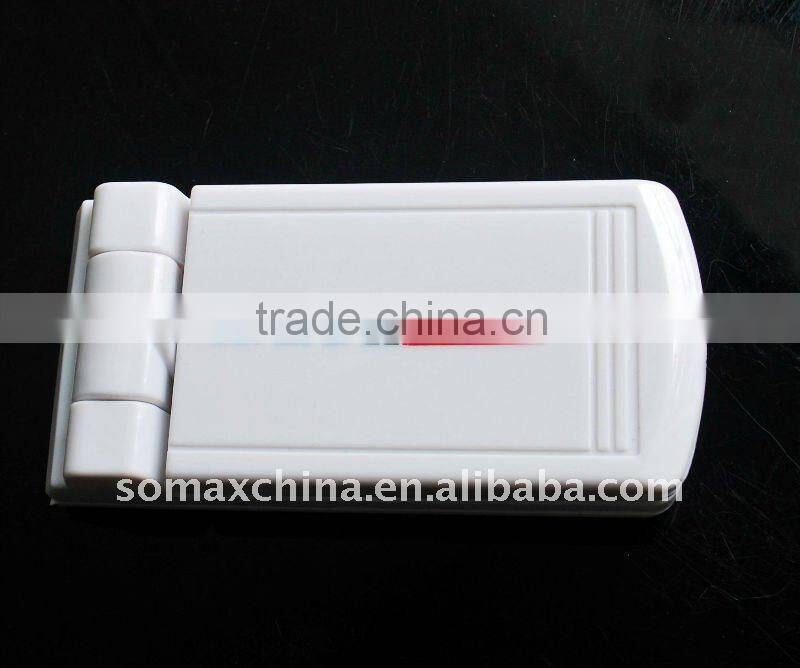

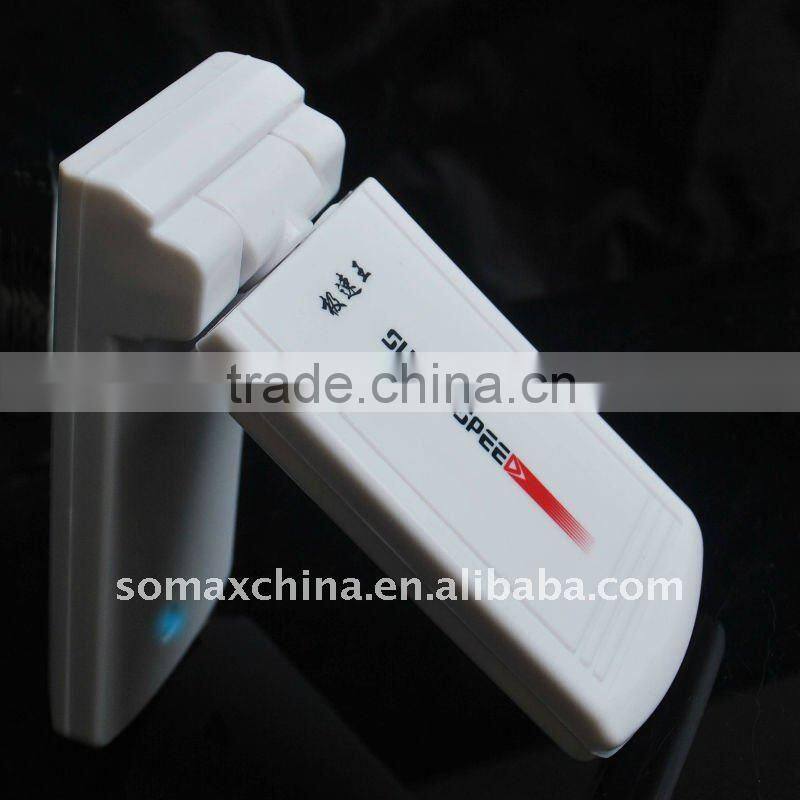

Low Cost 300 Mbps Wireless Netword Card

Specifications

1.1000 Mbps
2.Compatible with all computers
3.High security
4.Power up to 500mW
5. CE, FCC and RoS



Low Cost 1000 Mbps Wireless Netword Card






Product Description

1. RTL8187L Modem
2. 802.11N 1000Mbps wireless USB adaptor
3. Ralink RT3072chipset
4. High peak rate WiFi adapter
5. Software AP function.
6. With detachable 2dBi external antenna.

Ralink RTL8187L Modes
Main Features:
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps;
802.11n: (20MHz) MCS0-15, Support up to 144Mbps; (40MHz) MCS0-15, Support up to 1000Mbps
MIMO, OFDM, Peak rate 300Mbps, Peak throughput: TX 80Mbps, RX 160Mbps
Power Management
Wi-Fi Certification: 802.11 a/b/g, 802.11n, WPA, WPA2, WMM, WMM-PS
WHQL, Cisco CCX
Hardware
Chipset: Ralink RTL8187L
Host interface: USB2.0/1.1 type A (4 pin header)
LEDs; Link/Acticity

RF
Antenna: Builted-in PCB On Board (2T2R) (or external use Hirose, or compliance)
Frequency: 2412~2483.5 MHz, ISM band
Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;
802.11n: (HT20), 13+/-1.5dBm, 802.11n: (HT40), 10+/-1.5dBm,
Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps
802.11n: (HT20), -65dBm@MSC7, 802.11n: (HT40), -61dBm@MSC7
Software
Operation System: Windows CE/2000/XP/Vista; Linux; Mac OS X
Security: WEP 64/128, WPA, WPA2, 802.1x, and 802.11I Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage Range: DC 5.0V ± 5%
Operating Temperature: 0° C - 50° C
Storage Temperature: -20° C - 70° C
Operating Humility: RH 95% (Non-Condensing)
Storage Humidity: RH 95% (Non-Condensing)
Physical Specification
Dimentions: 95x26x13.2 mm



:
