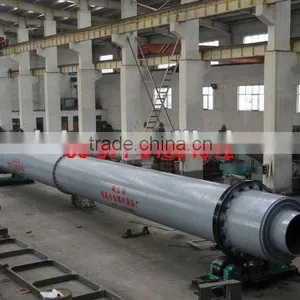

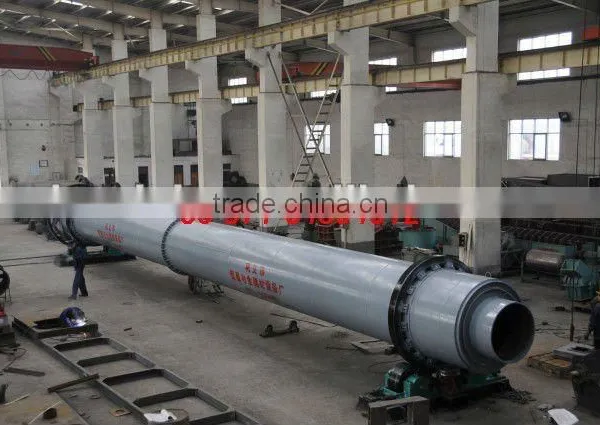

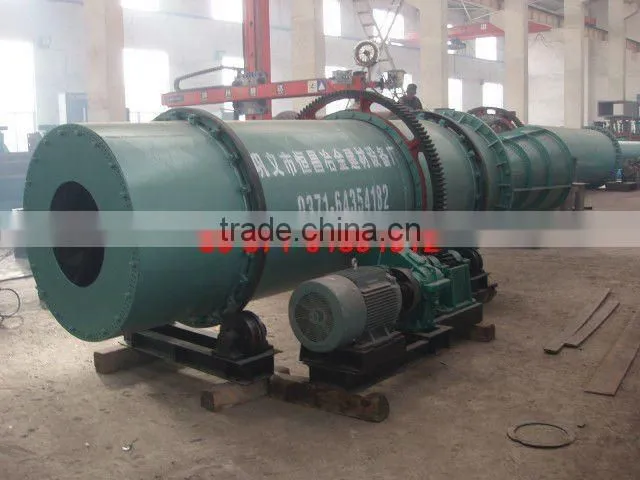

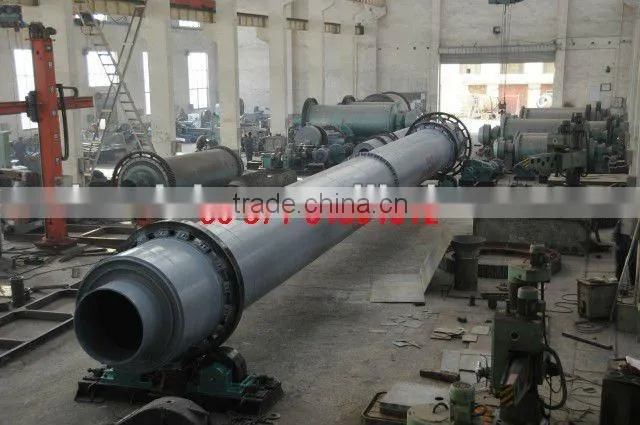

Brewer's grains drying machine
Introduction:
It is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
Structure:
1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating,.
2. Catch wheel : including two kinds mechanical wheel and hydraulic pressure
3. Gears: single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable , energy-saving, and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed , zoom and floating. The structure is simple , replacement is convenient and won’t hurt cylinder.
Working principle:
The brewer's grains drying machine calcining system equipment made has adopted the advanced hydraulic thrust roller device, the high measuring precession plunger pump, the variable speed adjusted valve, the contact graphite block sealing device and the other national advanced technologies. In order to raise up automation degree, the industrial TV has been used at the kiln head for monitoring of kiln, the simulation phosphor screen has been used for display of process flow; the infrared scanning system has been adopted for calcining zone to directly reflect the burning conditions on the computer. With the use of these new of these new technologies, it is direct in vision, convenient in operation and reliable in use. Therefore, the thermal condition can be stabilized and the running rate of equipment can be raised. Compared to same sized equipment, its running rate has been raised 10% up, production has been increased 5-10% and heat consumption has been reduced 15% down.
Technical parameter:
Specifications |
The size of the kiln |
Capacity |
Speed |
Power (kw) |
Weight |
||
Diameter (mm) |
Length (mm) |
Gradient (%) |
|||||
φ1.4×33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
φ1.6×36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
φ1.8×45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
φ1.9×39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
φ2.0×40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
φ2.2×45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
φ2.5×40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
φ2.5×50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
55 |
187.37 |
