Gabion mesh factory/2*1*1 m gabion retaining baskets Anping, Hengshui China Manufacture
Technical standard according to ASTM as following list:
1) All the gabion mesh/wire/box sizes specifications according to ASTMA975.
2) Zinc-Coated SteelWire as perASTM_A641, Class 3 Coating, soft temper.
3) PVC (Polyvinyl Chloride) Coated, Hot-dip Galvanized First.
4) Zn - 5Al - MM Coated SteelWire as perASTMA 856/A 856M, Class 3 coating, soft temper
Main specifications of the 2x1x1gabion box/gabion basket :
Item |
Mesh Hole Type |
Type 1: Wire diameter |
Type 2: Wire diameter |
Zinc coating |
Tensile strength |
Mesh wire |
80 x100mm, 100 x120mm, or as request |
2.7±0.1mm |
3.0±0.1mm |
240±10 g/m2 |
485 MPa max |
Selvedge wire |
3.4±0.1mm |
4.0±0.1mm |
260±10 g/m2 |
485 MPa max |
|
Binding wire |
2.2±0.1mm |
2.2±0.1mm |
220±10 g/m2 |
515 MPa ma |
Specification of Gabion Basket:
Specification of Double twisted hexagonal mesh | |||
|
Opening (mm) |
Wire Diameter (mm) |
PVC Wire Diameter Inside/outside (mm) |
Max Breadth (m) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4.3 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4.3 |
Others we can do as your requirement | |||
Size |
Note |
Tolerance |
|||
Length(m) |
Width(m) |
High(m) |
Diaphragm |
Volume(m3) |
L +/-3% W+/-5% H+/-5% |
2.0 |
1.0 |
0.3 |
1 |
0.6 |
|
3.0 |
1.0 |
0.3 |
2 |
0.9 |
|
4.0 |
1.0 |
0.3 |
3 |
1.2 |
|
2.0 |
1.0 |
0.5 |
1 |
1.0 |
|
3.0 |
1.0 |
0.5 |
2 |
1.5 |
|
4.0 |
1.0 |
0.5 |
3 |
2.0 |
|
1.0 |
1.0 |
1.0 |
0 |
1.0 |
|
1.5 |
1.0 |
1.0 |
0 |
1.5 |
|
2.0 |
1.0 |
1.0 |
1 |
2.0 |
|
3.0 |
1.0 |
1.0 |
2 |
3.0 |
|
4.0 |
1.0 |
1.0 |
3 |
4.0 |
|
Application
1.Control and guide of water or flood
2.Flood bank or guiding bank
3.Preventing of rock breaking
4.Water and soil protection
5.Bridge protection
6.Strengthening structure of soil
7.Protection engineering of seaside area.

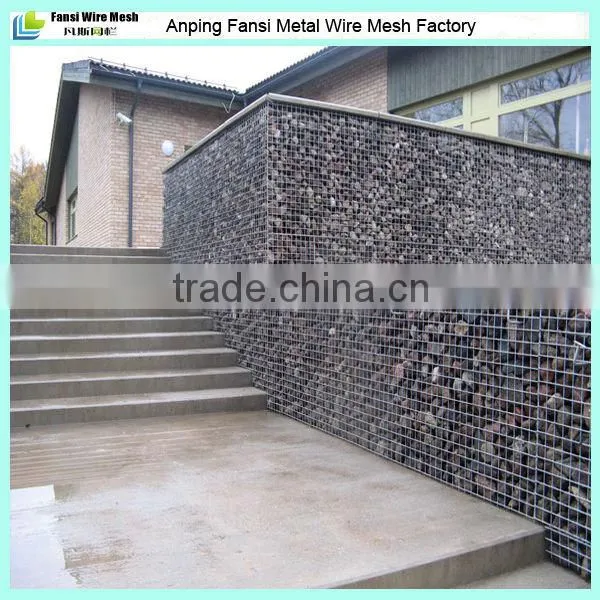

Galvanized/Galfan finishing gabion retaining wall price, gabion baskets for sale
PVC Coated gabion retaining wall price, gabion baskets for sale
Detailed information:
1. Materials: Low carbon steel wire, stainless steel wire, electro galvanized wire, hot-galvanized wire, heavily galvanized wire, pvc-coated wire.
2. Weaving processing: twisted before galvanized, weaving after galvanized.
3. Available:
· Electro Galvanized before Weaving
· Electro Galvanized After Weaving
· Hot Dipped Galvanized before Weaving
· Hot Dipped Galvanized after Weaving
· PVC Coated Before or After Weaving
|
4.Uses: (1).Strengthen the slopes (4).The work of Gabion are considered to be a perfect solution in demanding geotechnical conditions, because you can easily assemble. |
|
|
5. Roads and railways: Gabion is used where it is necessary to stabilize the road or rail. It is used primarily for the expansion or construction of roads on the slopes. Furthermore, in the construction of railway embankments, and so on. Another option is the use of Gabion noise barriers, where the effect is compared with soundproof concrete improved by selecting suitable plants. |
6.Rivers:
|
Gabion provides clear advantages in the management of watercourses. Gabion works better than the concrete lining, which destroys any connection between water flow and its surrounding areas and prevents the growth of plants. |
7. Gabion Basket applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.
8. Gabion cage features:
1)An economy. Just a stone into a cage sealing
2) construction is simple, no special skills.
3)strong to withstand natural damage and corrosion resistance and resistance to adverse climate impacts.
4)Can withstand a wide range of deformation, but not collapse.
5) silt stones is conducive to plant production, and the natural environment as a whole.
6 )has a good permeability to prevent the damage caused by the hydrostatic
7)Save on shipping costs. Can be folded up and transport, assembly on site.
9.Usage:
10.Working:
Workers checking the depth of subgrade reinforcement gravel on a pavement patch. |
Workers installing gabion baskets on the South Fork Salmon River Road. |
11.Workshop:
12.Warehouse:
13.Loading:
