Specifications
1.Anping galvanized gabion basket2.ISO9001:2008
3.Galvanized gabions
4.Anti-corrosion gabion basket
5.2x1x1m gabion basket
Anping supplier cheap&hot sale galvanized gabion baskets
1. Materials: Low carbon steel wire, stainless steel wire, electro galvanized wire, hot-galvanized wire, heavily galvanized wire, pvc-coated.

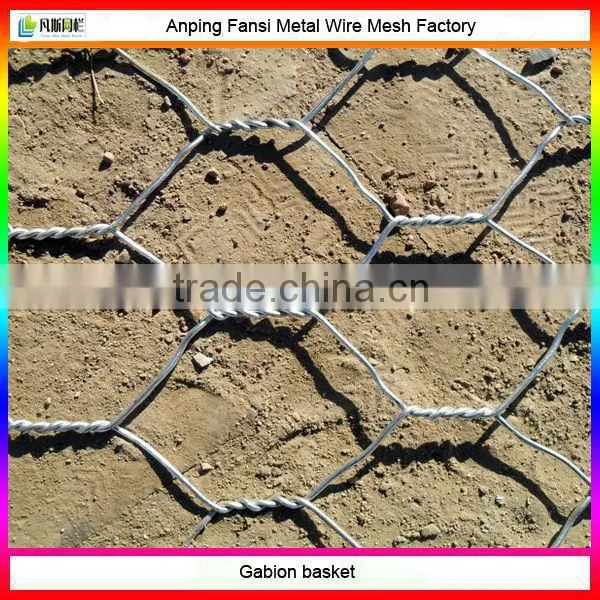

2. Weaving processing: twisted before galvanized, weaving after galvanized.

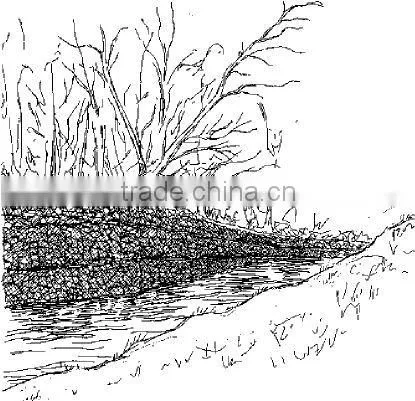

Figure 1. Gabion revetment on streambank
3. Gabion Revetments:
Gabions are stone-filled galvanized or coated wire baskets placed along a streambank. Gabions are particularly effective for protecting the submerged part of the streambank. They provide the same basic protection as riprap, but can be utilized when the streambank slope cannot be cut back due to physical constraints (e.g., roads, utilities or buildings) or when larger rock is not readily available.
Figure 2. Gabion basket as it arrives from manufacturer for assembly
4.Sizing: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.
5. Gabion cage features:
1)An economy. Just a stone into a cage sealing
2) construction is simple, no special skills.
3)strong to withstand natural damage and corrosion resistance and resistance to adverse climate impacts.
4)Can withstand a wide range of deformation, but not collapse.
5) silt stones is conducive to plant production, and the natural environment as a whole.
6 )has a good permeability to prevent the damage caused by the hydrostatic
7)Save on shipping costs. Can be folded up and transport, assembly on site.
Figure 3. Use wire reinforcements to retain rectangular shape and increase stability
Figure 4. Wire the baskets shut and wire them to each other
6.Common Specification:
Gabion Basket | ||
Mesh Opening (mm) |
Wire Diameter(Zinc Wire) (mm) |
Wire Diameter
(Zinc+PVC Coating)/
Inner/Outside(mm) |
60X80 |
D2.0-2.8 |
D2.0/3.0-2.5/3.5 |
80X100 |
D2.0-3.2 |
D2.0/3.0-2.8/3.8 |
100X120 |
D2.0-3.4 |
D2.0/3.0-2.8/3.8 |
7. Gabion Basket applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.

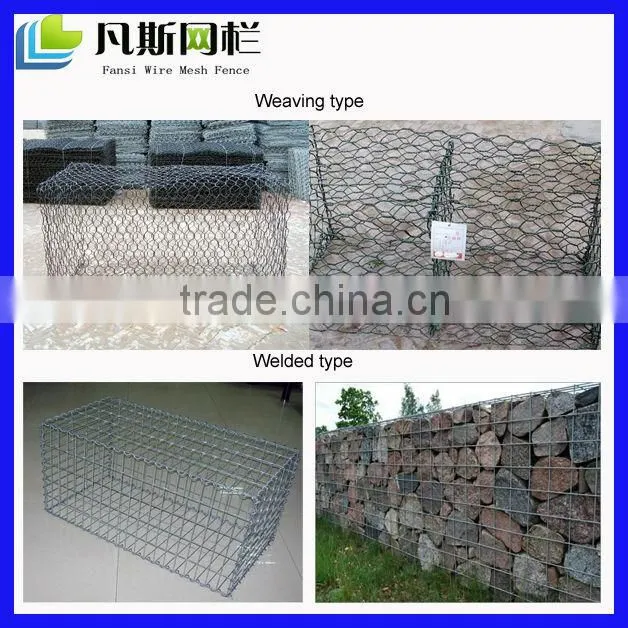

Types:
8.Advantages:
1)Designed for high velocity flows
2)Can be installed where tight physical constraints exist
3)Easily fits contours of streambank
4)Openings provide positive drainage of streambank
5)Freeze & thaw sequences shift stones with minimal impact to structure
6)Heavy machinery may not need to be used
7)Minimal maintenance costs

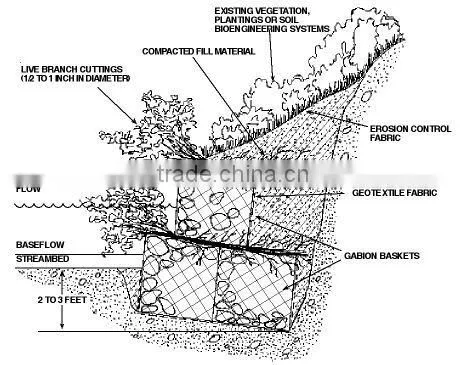

Figure 5. Cross section of vegetated gabion revetment
9.Working:
Workers checking the depth of subgrade reinforcement gravel on a pavement patch. |

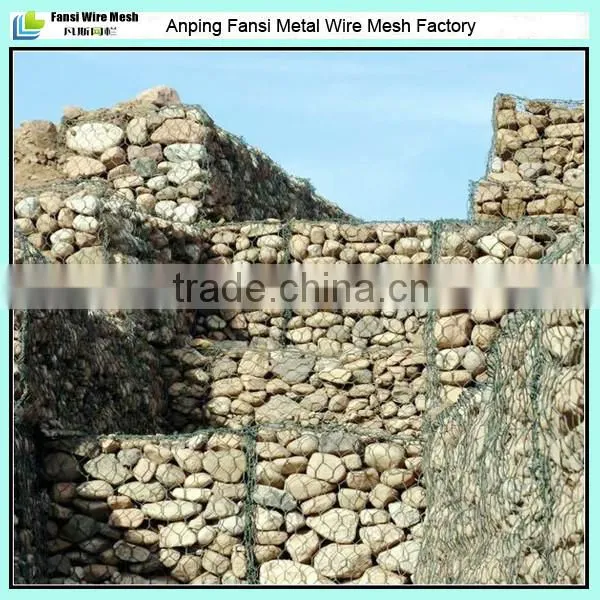

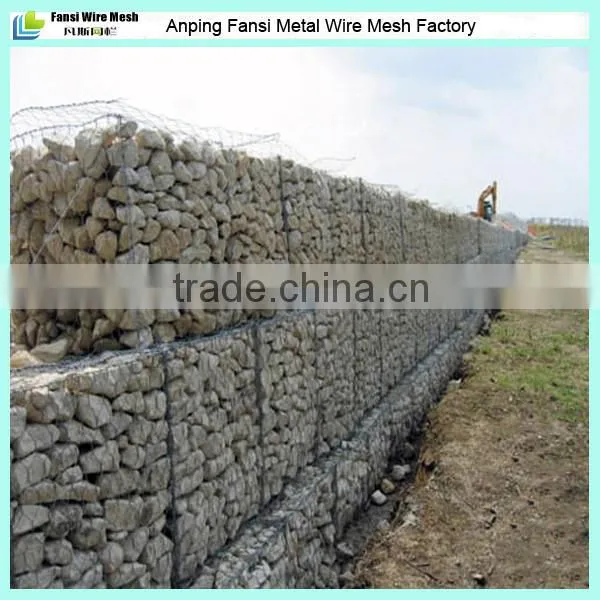

Workers installing gabion baskets on the South Fork Salmon River Road. |
10.Workshop:
11.Warehouse:
12.Loading:
