Energy-saving conveyor belt dryer for mining
- 10 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Hengchang | Model Number: | Specification | Voltage: | Customized |
Power(W): | refers to catalogue | Dimension(L*W*H): | refers to catalogue | Weight: | refers to catalogue |
Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

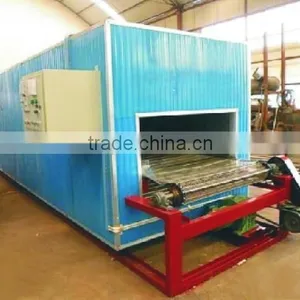

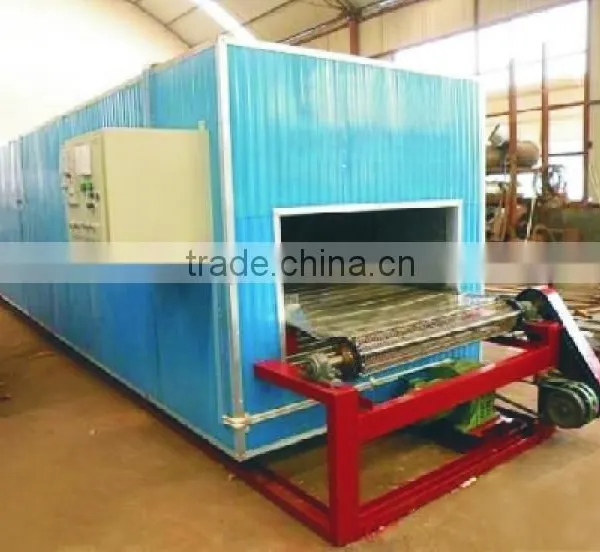

Energy-saving conveyor belt dryer for mining
Introduction of mesh band dryer:
Mesh band dryer conveys raw material by steel mesh for drying, and very suitable for flow process. It is widely used in chemical industry, food industry, medicine industry, building materials, electronic industries, especially good at drying material in slice shape, strip particles. It has the advantages of low investment, high drying speed, high evaporation strength, high efficiency, and good quality of product.
Working principle of mesh band dryer:
Mesh band dryer is a horizontal dryer with multi-section combination, this dryer is mainly used for drying in humidity state when the intensity is not high pellet or ball. The length of a dryer is according to the humidity and the output of the material. Material feed from the top and run back and forth from the top down to the Discharge port at the bottom of the drying box.Drying time for 15% humidity coal ash briquettes is approximately 90-120 minutes, customer can adjust the conveyor speed according to the humidity requirement of the finished ball, belt speed is adjustable in order to achieve good product quality.
Applications of mesh band dryer:
Mesh band dryer is widely used in chemical industry, food industry, medicine industry, building materials, electronic industries, especially good at drying material in slice shape, strip particles. It has the advantages of low investment, high drying speed, high evaporation strength, high efficiency, and good quality of product
Technical Parameters of mesh band dryer:
Model | Mesh Width (mm) | Drying Length (m) | Drying Area (m2) | Layer | Layer Distance (mm) | Running Speed (m/min) | Power (Kw) | Capacity (t/h) |
HJWD6 | 600 | 6-12 | 3.6-36 | 1-5 | 400-600 | 0.06-1 | 1.1-2.2 | 6-10 |
HJWD8 | 800 | 6-12 | 4.8-48 | 1-5 | 400-600 | 0.06-1 | 1.1-2.2 | 8-15 |
HJWD10 | 1000 | 6-16 | 6-80 | 1-5 | 400-600 | 0.06-1 | 1.1-2.2 | 10-20 |
HJWD12 | 1200 | 8-16 | 7.2-96 | 1-5 | 400-600 | 0.06-1 | 1.1-3 | 12-25 |
HJWD16 | 1600 | 8-22 | 12.8-105 | 1-5 | 400-600 | 0.06-1 | 1.1-3 | 15-30 |
HJWD20 | 2000 | 10-26 | 20-260 | 1-5 | 400-600 | 0.06-1 | 1.5-4 | 18-35 |
HJWD24 | 2400 | 12-30 | 29-360 | 1-5 | 400-600 | 0.06-1 | 3-7.5 | 20-40 |
HJWD30 | 3000 | 12-40 | 36-600 | 1-5 | 400-600 | 0.06-1 | 5-11 | 25-50 |
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, sand and stone crushing equipments, Briquetting equipments, coal preparation equipments, drying and calcine equipments, cement plant equipments and compound fertilizer equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide mineral processing flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
If you are interested in our products or need more detail information, please don't hesitate to contact us.
