Gabion baskets/gabion box /gabion walls(factory) Quality Choice

Gabion baskets/gabion box /gabion walls(factory)

1.Gabion materials: hot dipped galvanized wire and  PVC coated  galvanized wire , PVC color : darkgree, gray ,black

2.Gabion mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm

3.Gabion selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

4.Gabion mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm

5.Gabion Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight

6.Gabion Zinc coating : 220-290g/m2

7.Gabion size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request

8.Gabion With diaphragms

Gabion specification

Detailed information:

1. Materials: Low carbon steel wire, stainless steel wire, electro galvanized wire, hot-galvanized wire, heavily galvanized wire, pvc-coated wire.

2. Weaving processing: twisted before galvanized, weaving after galvanized.

3. Available:

· Electro Galvanized before Weaving
· Electro Galvanized After Weaving

· Hot Dipped Galvanized before Weaving
· Hot Dipped Galvanized after Weaving
· PVC Coated Before or After Weaving

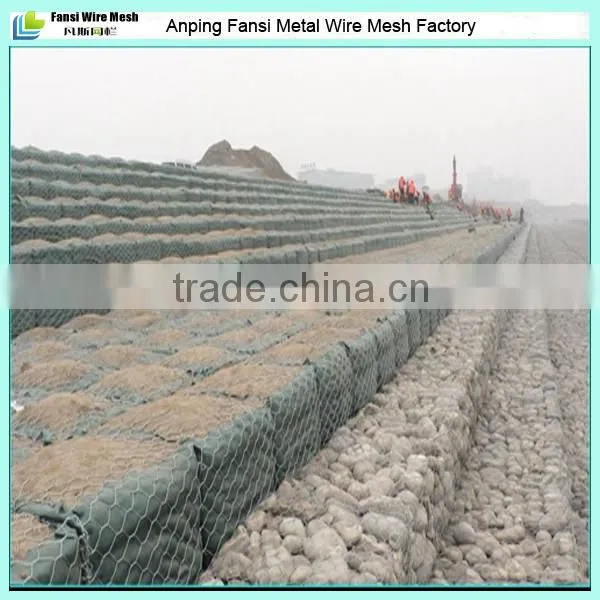

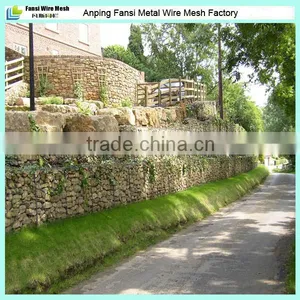

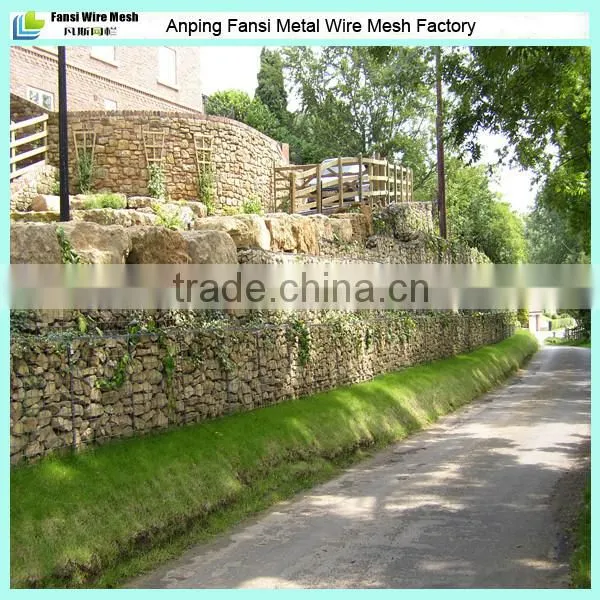

4.Uses: (1).Strengthen the slopes (2).Gabion offers a unique way to protect against erosion and landslides. (3).Gabion retaining walls are used for their flexibility, robustness and high drainage capacity. (4).The work of Gabion are considered to be a perfect solution in demanding geotechnical conditions, because you can easily assemble.
5. Roads and railways: Gabion is used where it is necessary to stabilize the road or rail. It is used primarily for the expansion or construction of roads on the slopes. Furthermore, in the construction of railway embankments, and so on. Another option is the use of Gabion noise barriers, where the effect is compared with soundproof concrete improved by selecting suitable plants.

6.Rivers:

Gabion provides clear advantages in the management of watercourses. Gabion works better than the concrete lining, which destroys any connection between water flow and its surrounding areas and prevents the growth of plants.

7.Specification:

8.Gabion Sizes:

Gabion types:

Weaving:

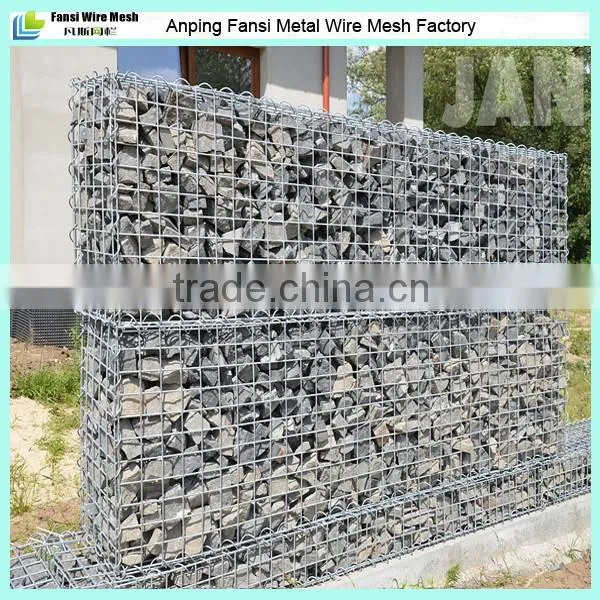

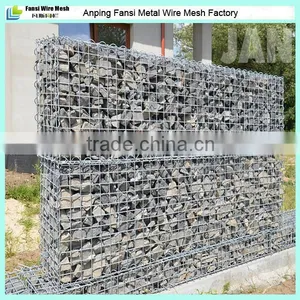

Welded:

10. Gabion Basket applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.

11. Gabion cage features:
1)An economy. Just a stone into a cage sealing
2) construction is simple, no special skills.
3)strong to withstand natural damage and corrosion resistance and resistance to adverse climate impacts.
4)Can withstand a wide range of deformation, but not collapse.
5) silt stones is conducive to plant production, and the natural environment as a whole.
6 )has a good permeability to prevent the damage caused by the hydrostatic
7)Save on shipping costs. Can be folded up and transport, assembly on site.

12.Gabion Box Sizes:
This Gabion Wall has been designed and constructed to retain the site boundary along the length of a new access road to a new industrial development. The gabions were filled with crushed concrete and faced with 6g stone fill.

Gabion walling is being used to construct an access track along the length of an existing train station. The access track will be used by a pilling rig that will be required to place new foundation when the existing station is demolished and the new railway station constructed. The gabion wall is constructed both sides of railway line and has to be constructed and backfilled in 4m lengths. This limits the chance of slipage to the embankment.

13.Working:

14.Workshop:

15.Warehouse:

16.Loading:
