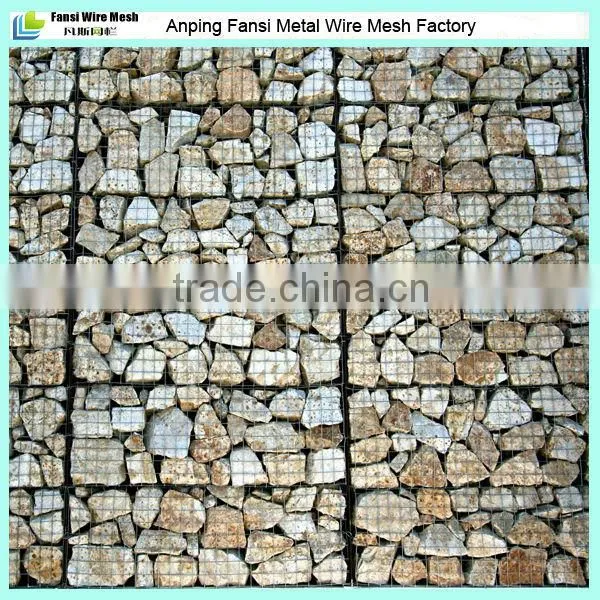

Manufacturer of the erosion control gabion baskets Anping, Hengshui China Supplier
1.Gabion materials: hot dipped galvanized wire and PVC coated galvanized wire , PVC color : darkgree, gray ,black
2.Gabion mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Gabion selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.Gabion mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm
5.Gabion Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight
6.Gabion Zinc coating : 220-290g/m2
7.Gabion size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request
8.Gabion With diaphragms
Specifications of the gabion retaining wall price, gabion baskets
Normal Specification
|
Gabion box |
Reno mattress |
||
Characteristics |
Metallic coated |
PVC coated |
Metallic coated |
PVC coated |
Mesh type |
80 by 100 |
60 by 80 |
||
Mesh opening |
83 by 114mm (3.25 by 4.5 in.) |
83 by 114mm (3.25 by 4.5 in.) |
64 by 83mm (2.5 by 3.25 in.) |
64 by 83mm (2.5 by 3.25 in.) |
Mesh wire |
3.05mm (0.120 in.) |
2.7mm (0.106 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Selvedge wire |
3.8 mm (0.150 in.) |
3.4mm 90.134 in.0 |
2.7mm (0.105 in.) |
2.7mm (0.105 in.) |
Lacing wire |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Fasteners |
3.0mm (0.118 in.) |
3.0mm (0.118 in. |
3.0mm (0.118 in. |
3.0mm (0.118 in. |
Stiffeners( using lacing wire) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Preformed |
3.8mm (0.150 in.) |
3.4mm (0.134 in.) |
N/A |
N/A |
PVC coating thickness |
N/A |
0.5mm (0.02 in.) |
N/A |
0.5mm (0.02 in. |
Minimum |
N/A |
0.38mm (0.015 in.) |
N/A |
0.38mm (0.015 in.) |
Minimum Weight of Zinc per Unit Area of Uncoated Wire Surface (SI Units)
(According to ASTM A975, gabion is suitable for Class 3)
Wire diameter, mm |
Class 3 or A coating, g/m2 |
Class 4 coating, g/m2 |
Class B coating, g/m2 |
Class 5 coating, g/m2 |
1.30 to 1.60. incl. |
180 |
n/a |
360 |
n/a |
Over 1.60 to 1.90. incl. |
210 |
n/a |
420 |
n/a |
Over 1.90 to 2.30. incl. |
220 |
366 |
440 |
610 |
Over 2.30 to 2.70. incl. |
230 |
366 |
460 |
610 |
Over 2.70 to 3.10. incl. |
240 |
366 |
480 |
610 |
Over 3.10 to 3.50. incl. |
260 |
366 |
520 |
610 |
Over 3.50 to 3.90. incl. |
270 |
366 |
540 |
610 |
Over 3.90 to 4.50. incl. |
275 |
366 |
550 |
610 |
4.51 and over |
300 |
366 |
600 |
610 |
Technical standard of gabion retaining wall price, gabion baskets as following list :
Gabion retaining wall price
1) All the gabion mesh/wire/box sizes specifications according to ASTMA975.
2) Zinc-Coated SteelWire as perASTM_A641, Class 3 Coating, soft temper.
3) PVC (Polyvinyl Chloride) Coated, Ho gabion rock t-dip Galvanized First.
4) Zn - 5Al - MM Coated SteelWire as perASTMA 856/A 856M, Class 3 coating, soft temper
5) PVC Coating requirements according to ASTM Standard and EN 10245-2 Standard.
Galvanized/Galfan finishing gabion retaining wall price, gabion baskets for sale
PVC Coated gabion retaining wall price, gabion baskets for sale
Detailed information:
1. Materials: Low carbon steel wire, stainless steel wire, electro galvanized wire, hot-galvanized wire, heavily galvanized wire, pvc-coated wire.
2. Weaving processing: twisted before galvanized, weaving after galvanized.
3. Available:
· Electro Galvanized before Weaving
· Electro Galvanized After Weaving
· Hot Dipped Galvanized before Weaving
· Hot Dipped Galvanized after Weaving
· PVC Coated Before or After Weaving
|

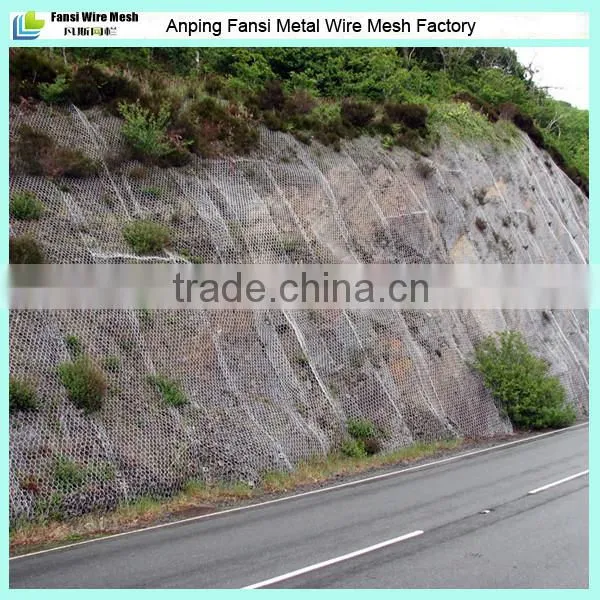

4.Uses: (1).Strengthen the slopes (4).The work of Gabion are considered to be a perfect solution in demanding geotechnical conditions, because you can easily assemble. |
|
|
5. Roads and railways: Gabion is used where it is necessary to stabilize the road or rail. It is used primarily for the expansion or construction of roads on the slopes. Furthermore, in the construction of railway embankments, and so on. Another option is the use of Gabion noise barriers, where the effect is compared with soundproof concrete improved by selecting suitable plants. |
6.Rivers:
|
Gabion provides clear advantages in the management of watercourses. Gabion works better than the concrete lining, which destroys any connection between water flow and its surrounding areas and prevents the growth of plants. |
7. Gabion Basket applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.
8. Gabion cage features:
1)An economy. Just a stone into a cage sealing
2) construction is simple, no special skills.
3)strong to withstand natural damage and corrosion resistance and resistance to adverse climate impacts.
4)Can withstand a wide range of deformation, but not collapse.
5) silt stones is conducive to plant production, and the natural environment as a whole.
6 )has a good permeability to prevent the damage caused by the hydrostatic
7)Save on shipping costs. Can be folded up and transport, assembly on site.
9.Usage:
10.Working:
Workers checking the depth of subgrade reinforcement gravel on a pavement patch. |
Workers installing gabion baskets on the South Fork Salmon River Road. |
11.Workshop:
12.Warehouse:
13.Loading:
