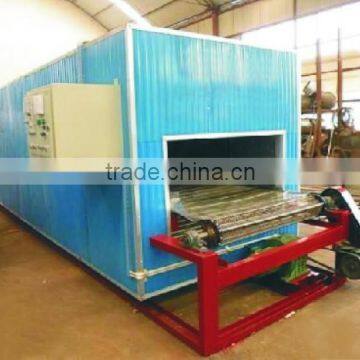

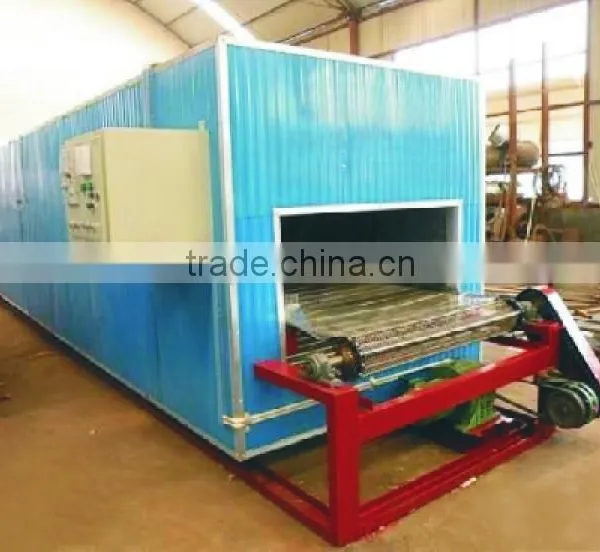

Sand mesh band dryer with best price
Descriptions:
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
Principle:
The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
Application:
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
Technical Parameters:
Model |
Mesh Width (mm) |
Drying Length (m) |
Drying Area (m2) |
Layer |
Layer Distance (mm) |
Running Speed (m/min) |
Power (Kw) |
Capacity (t/h) |
HJWD6 |
600 |
6-12 |
3.6-36 |
1-5 |
400-600 |
0.06-1 |
1.1-2.2 |
6-10 |
HJWD8 |
800 |
6-12 |
4.8-48 |
1-5 |
400-600 |
0.06-1 |
1.1-2.2 |
8-15 |
HJWD10 |
1000 |
6-16 |
6-80 |
1-5 |
400-600 |
0.06-1 |
1.1-2.2 |
10-20 |
HJWD12 |
1200 |
8-16 |
7.2-96 |
1-5 |
400-600 |
0.06-1 |
1.1-3 |
12-25 |
HJWD16 |
1600 |
8-22 |
12.8-105 |
1-5 |
400-600 |
0.06-1 |
1.1-3 |
15-30 |
HJWD20 |
2000 |
10-26 |
20-260 |
1-5 |
400-600 |
0.06-1 |
1.5-4 |
18-35 |
HJWD24 |
2400 |
12-30 |
29-360 |
1-5 |
400-600 |
0.06-1 |
3-7.5 |
20-40 |
HJWD30 |
3000 |
12-40 |
36-600 |
1-5 |
400-600 |
0.06-1 |
5-11 |
25-50 |
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, sand and stone crushing equipments, Briquetting equipments, coal preparation equipments, drying and calcine equipments, cement plant equipments and compound fertilizer equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
