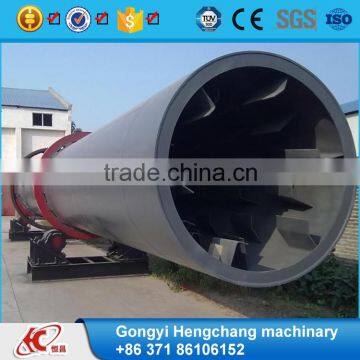

Factory high quality Industrial waste rotary dryer with CE certificate
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
1. Features of Industrial waste rotary dryer
1. Wide applicability, available for many kinds of materials.
2. Simple operation, stable performance;
3. Low investment, high efficient and capacity;
4. Low cost in maintenance
2. Working principle of Industrial waste rotary dryer
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
3. Technical Parameters of Industrial waste rotary dryer:
Model (mm) | Speed(r/min) | Slope(%) | Inlet Air Temperature(°C) | Power(kw) | Capacity(t/h) | Weight(t) |
800×8000 | 3-8 | 3-5 | ≤700 | 4 | 0.8-2 | 3.5 |
1000×10000 | 3-8 | 3-5 | ≤700 | 5.5 | 1-3 | 5.6 |
1200×10000 | 3-8 | 3-5 | ≤700 | 7.5 | 2-3.5 | 13.5 |
1200×12000 | 3-8 | 3-5 | ≤700 | 11 | 2.5-4 | 14.2 |
1500×12000 | 2-6 | 3-5 | ≤800 | 11 | 4-6 | 18.5 |
1500×15000 | 2-6 | 3-5 | ≤800 | 18.5 | 5-8 | 21 |
1800×18000 | 2-6 | 3-5 | ≤800 | 18.5 | 6-12 | 31 |
2000×18000 | 1.5-6 | 3-5 | ≤800 | 22 | 8-15 | 35 |
2200×12000 | 1.5-6 | 3-5 | ≤800 | 22 | 13-15 | 31.6 |
2200×14000 | 1.5-6 | 3-5 | ≤800 | 22 | 14-16 | 33.5 |
2200×16000 | 1.5-6 | 3-5 | ≤800 | 30 | 14-18 | 36 |
2400×18000 | 1.5-6 | 3-5 | ≤800 | 45 | 16-22 | 42.8 |
2400×20000 | 1.5-6 | 3-5 | ≤800 | 45 | 18-25 | 52 |
3000×20000 | 1.5-6 | 3-5 | ≤800 | 55 | 25-30 | 77.8 |
3000×25000 | 1.5-6 | 3-5 | ≤800 | 55 | 28-34 | 87.5 |

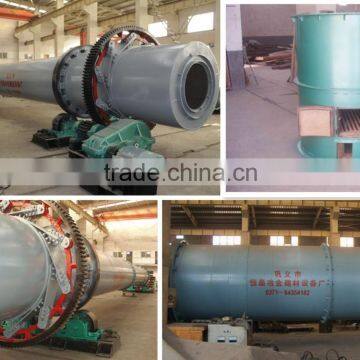

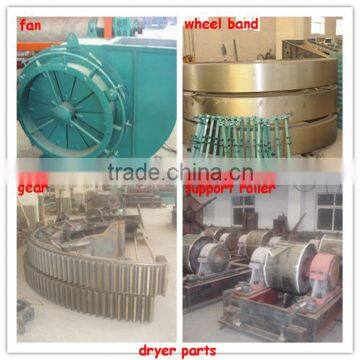

4. Workshop production:
So far, there are advanced process equipment in our workshop, such as rolling machine, welding machine, boring machine, which can ensure the machinery's quality.
Customer plant site:
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
Customer visit
So far, Hengchang machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Indian, Arabia and so on.Welcome you visit our company.
place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture before and after dry you required?
-Fuel available for the dryer?
Looking forward to hearing from you and welcome to visit our factory!
