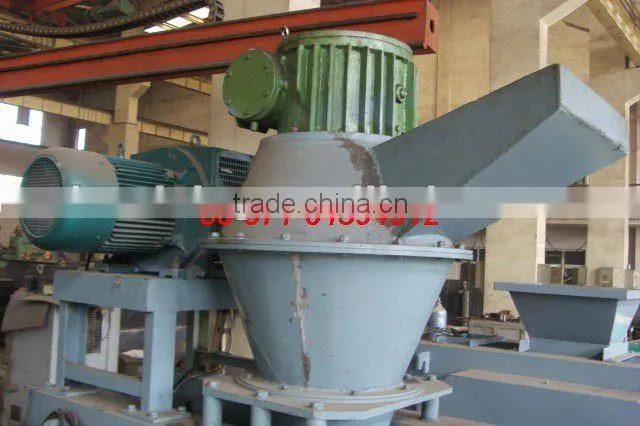

Coke briquette machine
Introduction:
Coke briquette machine is new type briquette machine, which is mainly used for anhydrous materials of non-ferrous and ferrous mineral powder briquette /ball making system before the smelting furnace, such as coal, coal ash, coal mud, coke powder, coking coal, iron ore concentrates, chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag, aluminum ash, Si-Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder Cold pellet making industry.
Feature:
1. favorable applicability
2. reliable machanical structure
3. high productivity
4. ISO9001, 2008 Quality Certificate
Application:
It is widely used in the field of metallurgy, chemical, refractories etc, for reducing bug dust, controlling volume, recycling, easy transportation and storage. It has the properties of high efficiency, energy saving and environment protection.
Technical parameters:
Model |
Roller |
Total Pressure |
Linear Pressure |
1st Motor Power |
2nd Motor Power |
Capacity |
|
|
Diameter (mm) |
Width (mm) |
||||||
GYQ-1 |
360 |
183 |
80 |
4 |
37 |
11 |
1 |
GYQ-2 |
400 |
232 |
95 |
4 |
45 |
15 |
2 |
GYQ-3 |
522 |
196 |
90 |
4 |
55 |
15 |
3 |
GYQ-5 |
650 |
196 |
120 |
6 |
75 |
15 |
5 |
GYQ-8 |
760 |
196 |
120 |
6 |
90 |
18.5 |
8 |
GYQ-10 |
850 |
368 |
350 |
8 |
180 |
15*2 |
10 |
GYQ-12 |
1000 |
368 |
370 |
8 |
200 |
15*2 |
12 |
The capacity is got by the limestone briquettes with density of 1.9-2.2 t/m and size25×34×13mm, singe piece is 17g
