Home > Manufacturing & Processing Machinery > Mould > Plastic Mould > Rubber Keypad With Soft Line Switch

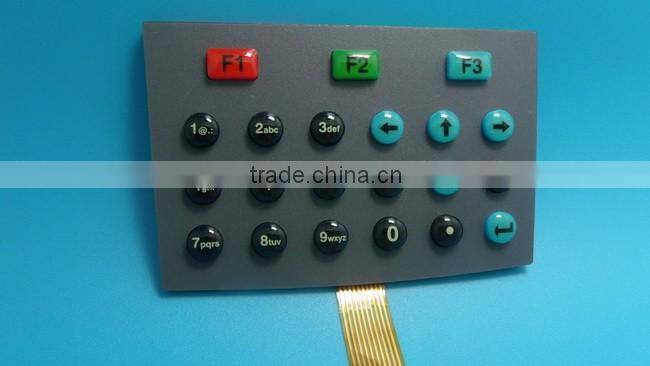

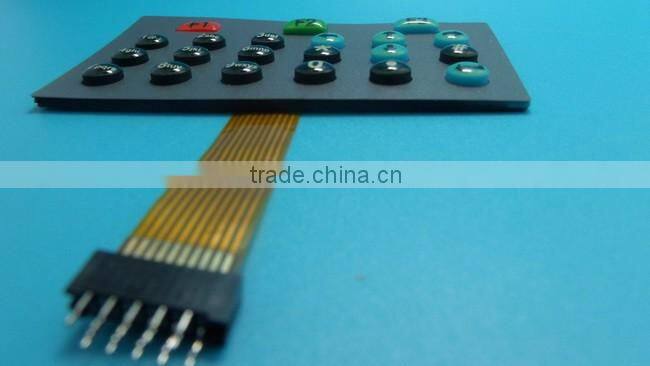

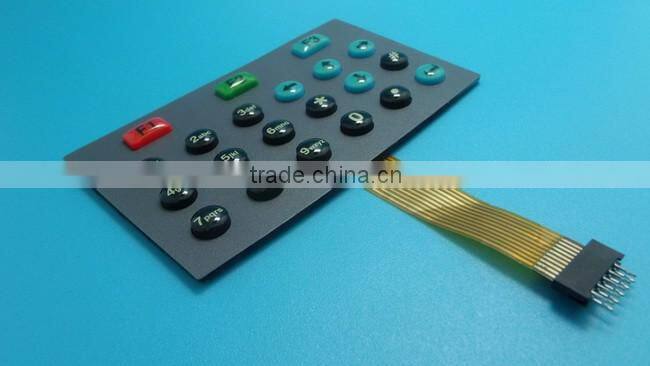

Rubber Keypad With Soft Line Switch

Name: Rubber Keypad With Soft Line Switch
Brand: SIMCONE
SKU: 103598995
Availability: InStock

Rubber Keypad With Soft Line Switch thumbnail-1

Rubber Keypad With Soft Line Switch thumbnail-2

Rubber Keypad With Soft Line Switch thumbnail-3

Rubber Keypad With Soft Line Switch photo-1

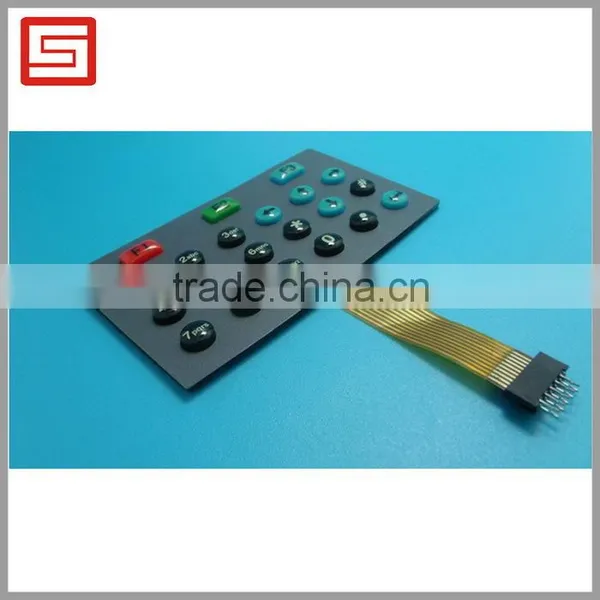

Rubber Keypad With Soft Line Switch photo-2

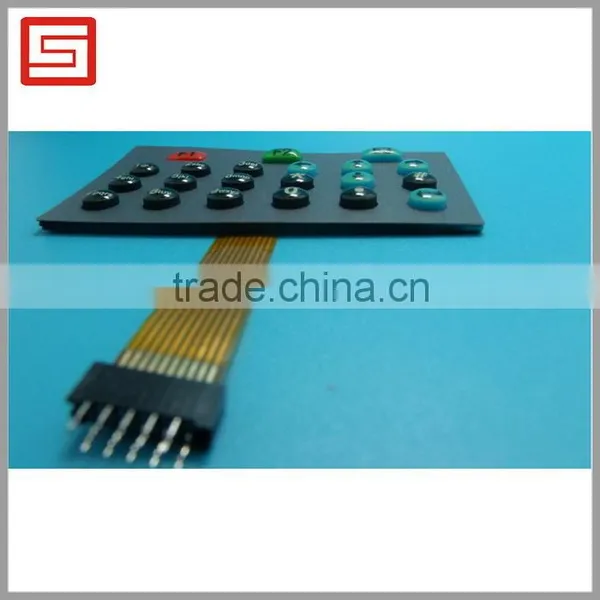

Rubber Keypad With Soft Line Switch photo-3

US$ 6.50 - 7.50 MOQ: 200 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SIMCONE

Model Number:

SZM003

Contact Supplier Request Quote Chat Now

Shenzhen Simcone Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shekou Yantian Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SIMCONE

Model Number SZM003

Who we are

Simcone is a professional ODM & OEM manufacturers in Shenzhen for silicone rubber keypads,cases and parts.We have been producing for some well-known brands,such as Phlips,Lenovo,JBL,JAM,Leica,Panduit,Star Trac,Holland 1916 etc.Moreover,we also able to offer membrane switches and membrane overlays.

What we can do

1.Provide quotation within 12 working hours.

2.3D design drawing can be provided based on 2D drawing or sample.

3.Our engineer will suggest technology and construction of the product.

4.Free sample will be provided after customer set up the mold before production.

5.Fast production within 7 days based on MOQ, urgent orders can be arranged firstly.

6.If goods has problem, we will reproduce for free after we confirm if we caused.

Membrane Switch

Material And Specifications Physical, Mechanical and Electrical Characteristics

01 Membrane Overlay

02 Membrane Circuit

03 Adhesive

04 Metal Dome

05 Connector

06 F P C

07 Silicone Rubber

PC, PET, PVC, PP, PMMA

PET

Pressure Sensitive Adhesive

Stainless Steel SUS 304

Thermoplastic

Poly Film, Copper

Silicone

GE, Auto type 0.125-4.0 mm

Dupont , Toray 0.05-0.25 mm

3 M, SONY, Nitto , 0.05-0.25 mm

T ure -tone, Snaptron, Nicomatic

1.27 mm , 2.54mm Pitch

S Y, Dupont 0.5 oz, 1 oz, 2 oz, 3 oz

ShinEtus, DowCorning, Tianyu

Mechanical Characteristics
01 Life Expectancy	Planar type ≥ five million closures	touch-typeTactile type ≥ one million closures
02 Operating Force	Plane type: 57g～284g(2～10OZ)	touch-typeTactile type: 170g～450g(6～16OZ)
03 Surface Finish	Fine texture, velvet texture, Anti-Glare	Glossy
Electrical Characteristics
04 Contact Resistance	10Ω ～500Ω（variable depending on tail length & material used）
05 Open Circuit Resistance	5 x 106 ohms minimum
06 Contact Rating	35V(DC),100mA,1W
10 Dielectric
07 Contact Bounce	20ms maximum
08 ESD Protection	Air +/-10KV, touching +/-5KV
Environmental Characteristics
09 Operating Temp	-40 to 80 C
10 Humidity	40℃,90%～95%,240 hours, Vibration: 20G, max
11 Humidity	40℃,90%～95%,240 hours, Vibration: 20G, max
