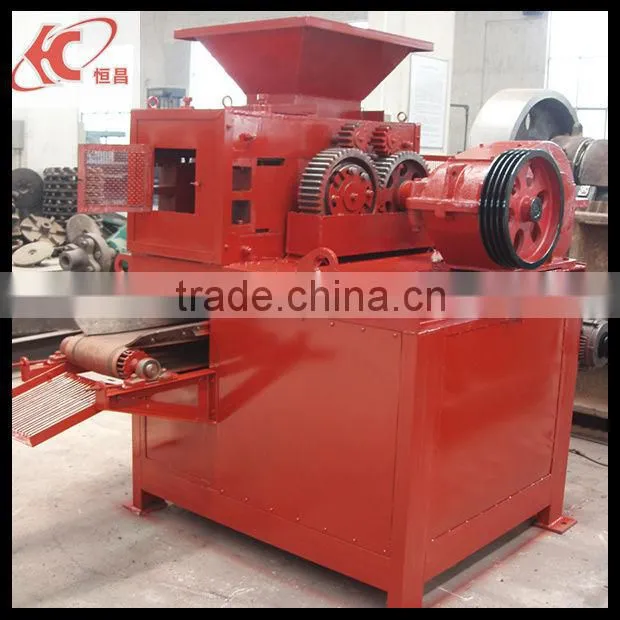

Lower price charcoal briquette making machine
Product Description
1. Introduction of charcoal briquette making machine:
Briquette machine is suitable for civil and industrial coal/ BBQ/ charcoal production. It features in excellent technical performance, compact structure, reasonable assembly process, special alloy rollers, and long life-span. In addition, it also solves the troubles of low molding pressure and low strength problem in briquette production, and can be the ideal machine in this field.

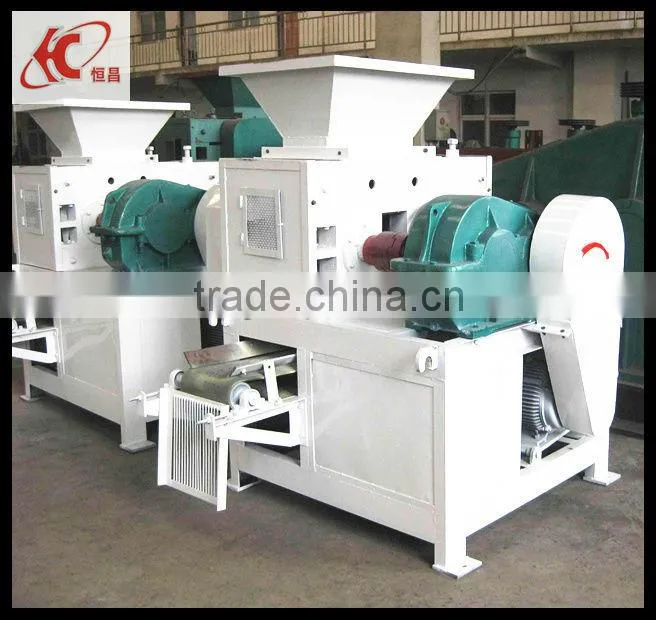

Excellent charcoal briquette making machine
Feature of the charcoal briquette machine |
-Good price with CE BV ISO. -Different type:roller type,hydraulic type,high pressure type coal briquette machine -Strong structure,high briquetting ratio because the briquette machine excellent design -it can be the single machine or whole production line. -Roller material can be 65Mn, 9Cr2Mo, Alloy Steel, -high-chromium alloy and so on -Final product size 25-70mm and shape can be round,pillow&square shape. -Engineer available for installation in customer country for briquette machine. -provide the matched binder for the briquettes making. -Engineer available for installation in customer country.
|
|
Raw material can be pressed by coal dust briquette machine
|
1.Coal powder/coal fine/coal dust 2.Charcoal powder/charcoal fine/charcoal dust 3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/ 4.Activated carbon/carbon black 5.All kinds of metal powder/Manganese/magnesium/copper/iron 6.Iron oxide/aluminum oxide/clay 7.Some other type powder.
|
Description of charcoal briquette machine |
The finished briquette won't be broken when dropped from 150-150cm height. Meanwhile, it is easy for combustion, no smell and last longer when burning.the final product shape and the size can be design according to you.also,our engineer will suggest you the best size and shape for you.
|
Request for the raw material |
1)feeding size to briquette machine should controlled less than 5mm. 2)Material moisture control in 8-10%. 3)Material with any metal objects can't be allowed,or else they will damage the rollor surface of machine.
|

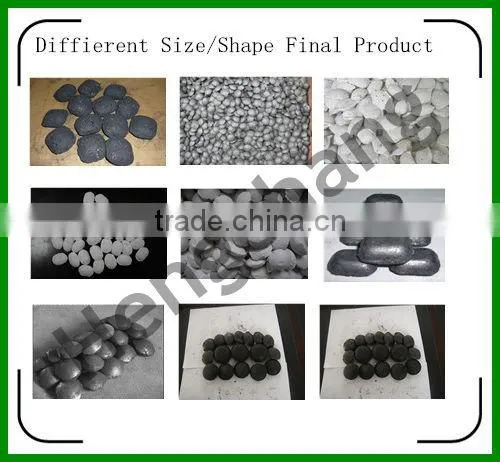

Different shapes use different roller model:
Technical Parameters of charcoal briquette making machine:
Model |
Roller Dia.r (mm) |
Roller Width (mm) |
Roller Material |
Shaft Speed(r/min) |
Reducer Model |
Pressure Form |
Motor Power (kw) |
Capacity (t/h) |
YQJ-290 |
290 |
200 |
65Mn |
18 |
ZQ350 |
Constant Wedge Pressure |
5.5 |
1-2 |
YQJ-360 |
360 |
250 |
65Mn |
18 |
ZQ400 |
Constant Wedge Pressure |
7.5 |
2-4 |
YQJ-400 |
400 |
250 |
65Mn |
18 |
ZQ400 |
Constant Wedge Pressure |
11 |
4-6 |
YQJ-500 |
500 |
300 |
65Mn |
13 |
ZQ500 |
Constant Wedge Pressure |
18.5 |
6-10 |
YQJ-650 |
650 |
336 |
65Mn |
13 |
ZQ650 |
Constant Wedge Pressure |
30 |
10-15 |
There are also 750 /850/1000model for bigger capacity production, if you need, just inquiry us!
Process of charcoal briquette making machine:

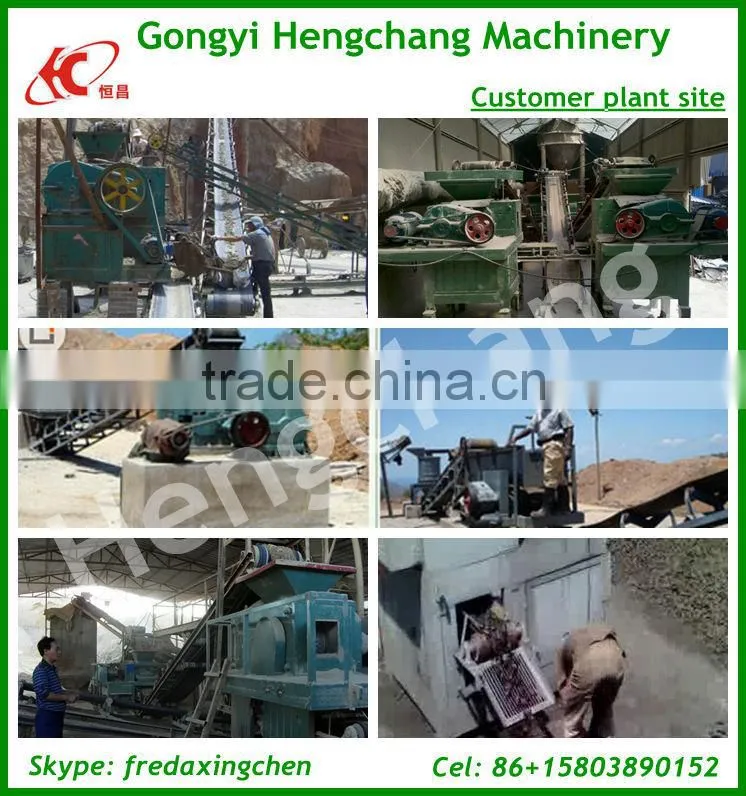

Customer plant site:
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
Welcome to our factory to see briquette machine and test!
Customer visit
So far, Hengchang Briquette machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Indian, Arabia and so on.Welcome you visit our company.
How to choose a suitable briquette machine:
1. What’s the raw material?
As different materials match different machines, So pls tell us what’s the raw material, is it limestone powder, coal powder or other metal powder.
2. The moisture of raw material ?
The moisture determines whether dryer is needed in the process.
3. The size of raw material ?
It should be crushed if the size is too big.
4. Capacity you need ?
Different capacity match different models of machine, what’s more, the smaller the capacity is, the simpler the process will be.
You may contact me if any questions! We will give you the best proposal!
