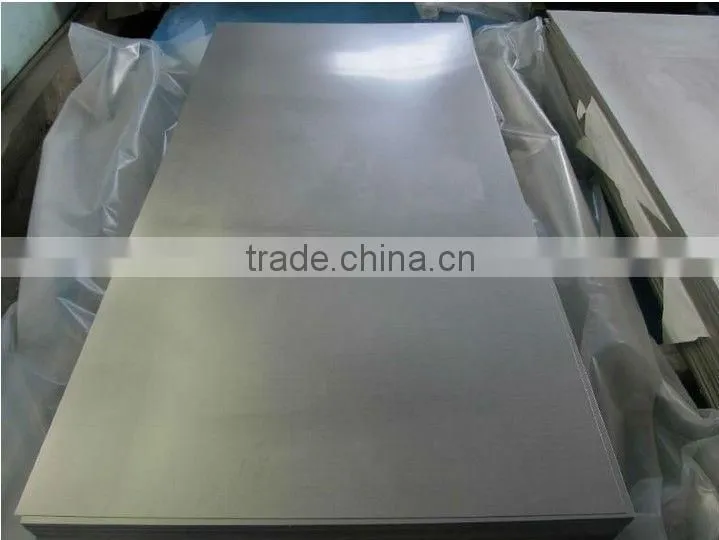

Nimonic90 Alloy Steel Sheet
US$ 32 - 80
MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Grade:
Other, Nimonic90 alloy steel sheet
Standard:
AISI, JIS, ASTM, DIN, EN, GB
Length:
2000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Elbow/ Tee/ Cross/ Cap/ Bend Pipe/ Reducer Duplex 2205/UNS S31803/W.Nr.1.4462/A182 F51 Pipe FittingsUS$ 50 - 300MOQ: 10 Pieces -
High Purity 99.95% Hafnium Wire for SaleUS$ 1,000 - 2,000MOQ: 1 Kilogram
-
C46400 Naval Brass BarUS$ 80 - 100MOQ: 100 Kilograms
-
Seamless Brass Tube ASTM C44300US$ 20 - 60MOQ: 100 Kilograms
-
High Quality C23000 Brass Plate for IndustryUS$ 30 - 90MOQ: 100 Kilograms
Grade
Other, Nimonic90 alloy steel sheet
Standard
AISI, JIS, ASTM, DIN, EN, GB
Length
2000mm
Thickness
0.4~4 mm
Width
1000mm
Place of Origin
Jiangsu, China
Brand Name
Pridametal
Model Number
Nimonic90 alloy steel sheet
Type
Plate
Application
plane's engine,free-turbine,washer,gasket,lock blad
Certification
ISO
Specifications
Nimonic90 alloy steel sheetStandard:GB/T14992
Size:0.4 ~ 4 * 1000 * 2000 mm
Heat Treatment: Solution Treatment
Nimonic90 alloy steel sheet
1. Standard: GB/T14992
2. Size: 0.4 ~ 4 * 1000 * 2000 mm
3. Chemical Composition:
C:≤0.13; Cr:18-21;Co:15-21;Al:1.0-2.0; Ti:2.0-3.0;Mn≤0.40;
Si:≤0.80; P:≤0.015 S: ≤0.015;Pb ≤0.0025;Cu:≤0.2;B:≤0.02;
Fe: ≤1.5, Ni: balance.
4.Mechanical Properties:
Density: 8.20 g/cm3
Melting Point:1400 °C
Coefficient of Thermal Conductivity (λ/(W/m•°C) ): 21.76 (100°C).
Linear Expansibility (a/10-6°C-1 ): 12.71 (20~100°C )
Heat Treatment: Solution Treatment
Tensile Strength( σb/MPa ): ≥ 820 MPa (at 20 °C)
Yield Strength: ≥ 590 Mpa
Elongation( σ5 /%): ≥ 8 % (at 20 °C)
5. Production Time: 7-30 days after getting your firm order
6. Payment Terms:T/T or L/C at sight.
