Elbow/ Tee/ Cross/ Cap/ Bend Pipe/ Reducer Duplex 2205/UNS S31803/W.Nr.1.4462/A182 F51 Pipe Fittings

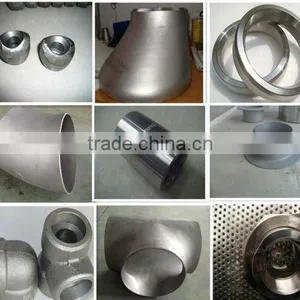

Elbow/ Tee/ Cross/ Cap/ Bend Pipe/ Reducer Duplex 2205/UNS S31803/W.Nr.1.4462/A182 F51 Pipe Fittings thumbnail-1
Elbow/ Tee/ Cross/ Cap/ Bend Pipe/ Reducer Duplex 2205/UNS S31803/W.Nr.1.4462/A182 F51 Pipe Fittings photo-1
US$ 50 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Material:
Stainless Steel
Technics:
Forged
Type:
Other, Pipe Fittings
Contact Supplier Request Quote Chat Now
Nanjing Free-Corrosive Metal Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Technics Forged
Type Other, Pipe Fittings
Place of Origin China
Model Number ASTM A182 F51 Pipe Fittings
Brand Name Pridametal
Connection Welding
Shape Other, Reducing/ Equal
Head Code Other, Round/Square

Specifications

ASTM A182 F51/Duplex 2205/UNS S31803/W.Nr.1.4462

Elbow/ Tee/ Cross/ Cap/ Bend Pipe/ Reducer Duplex 2205/UNS S31803/W.Nr.1.4462/A182 F51 Pipe Fittings



Description and Advantage.



1. Prompt & Professional Response.



2. Competitive & Credible Price.



3. High Quality & Fast Delivery.



4. Customized Service--(Produced according to customer's drawing or sample).





1. Partial order records of related products for your reference.



This products have been exported to Singapore.

NO

              Description

Qty

Uom

1

A182 F51 30’’(DN750)WN FLANGE FLANGE,150#,STANDARD:ANSI B16.47A

2

PCS

2

A182 F51 30’’(DN750)BLIND FLANGE,150# STANDARD:BS 3293

2

PCS

3

A182 F51 16’’(DN400)SLIP-ON FLANGE,150#,STANDARD:B16.5

4

PCS



 2. Brief introduction of the material: ASTM A182 F51/Duplex 2205/UNS S31803/W.Nr.1.4462



 A. A182 F51 Duplex Overview:



A182 F51 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. The structure of A182 F51 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, A182 F51 contains approximately 40-50% ferrite. Often referred to as the work horse grade, A182 F51 is the most widely used grade in the duplex family of stainless steels. A182 F51 is Low Temp Carbon Steel.. As for forgings, need heat treatment, normalizing or normalized and tempered. The steel specimens shall be melt processed using open-hearth, basic oxygen, electric furnace or vacuum-induction melting. A sufficient discard shall be made to secure freedom from injurious piping and undue segregation. The materials shall be forged and shall undergo heat treatment such as normalizing, tempering, quenching and precipitation heat treatment.



 B.Chemical Composition, %



Material

C%

S%

P%

Mn%

Si%

Cr%

Ni%

Fe

A350 LF3

0.03 max

0.03max

0.03 max

2.00 max

1.0 max

21.0-23.0

4.50-6.50

Balance



C. Mechanical Properties







Material

Tensile Strength

Ksi /MPa

Yield Strength

σ0.2 /MPa



Elongation

  σs /%

Hardness

HB

HBC

A182 F51

≥620

≥450

≥25

≤293

≤31



D.Available Forms of A182 F51



· Bar

· Pipe Fittings

· Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lap-joints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)



 3.Other Available Material:



A. Stainless:



304, 304L, 304H, 310S, 316L, 317, 317L



B. Duplex:



2205, S32750, 904L 254SMO, S31050



C. Special:



Alloy20, Nickel200, Monel400, Alloy625, Incoloy800, Alloy800H, AlloyC-276. Alloy-6XN.



D. Carbon:



ASTM A860 WPHY42. WPHY52, WPHY60, WPHY65, WPHY70



ASTM 694 F42, F46, F50, F52, F60, F65, F70



ASTM A106 GR.B, ASTM A234 WPB, ASTM A105



E. Alloy:



ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91



ASTM A182 F5, F9, F11, F12, F22, F91



ASTM A335 P5, P9, P11, P12, P22, P91
