304 Stainless Steel Netting/SS Netting/ Stainless Steel Net

Name: 304 Stainless Steel Netting/SS Netting/ Stainless Steel Net
Brand: Pridametal
SKU: 103595291
Availability: InStock

US$ 50 - 60 MOQ: 10 Rolls

Key Specifications

Place of Origin:

Jiangsu, China

Material:

Stainless Steel Wire

Type:

Wire Cloth

Nanjing Free-Corrosive Metal Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Material Stainless Steel Wire

Type Wire Cloth

Application Other, Filters,Woven Wire Mesh

Weave Style Plain Weave

Wire Diameter 0.025-1mm

Technique Woven

Model Number 304 Stainless steel net

Brand Name Pridametal

Specifications

1.Material:stainless steel wire
2.Wire dia.:0.025-1mm
3.Mesh size:3-400mesh
4.Technique:Woven
5.Solid color ss wire mesh

Specification:

1.Material:AISI 201,202,302,304,304HC,stainless steel wire of SUS302 304 316 304L 316L

2.Wire diameter: 0.025-1mm

3.Application: Woven Wire Mesh

4.Technique:Plain weave, twill weave ,dutch weave

5.Characteristics:acid-resisting,alkali-resisting etc.

6.Performance: Resistant to acid, alkali, temperature, abrasion etc.

7.Standard length:30m per roll or as required.

8.Application: Most used in mine, petroleum, chemical, foodstuff, pharmaceutical, mechanical industries.

9.Feature:filter

10.The process of production:Stainless steel wire---Carding---Wearv---Mesh---Inspection---Casting---Packing up

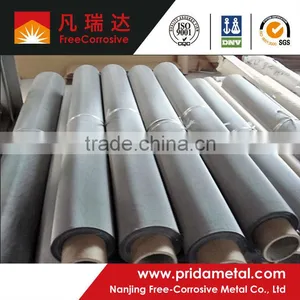

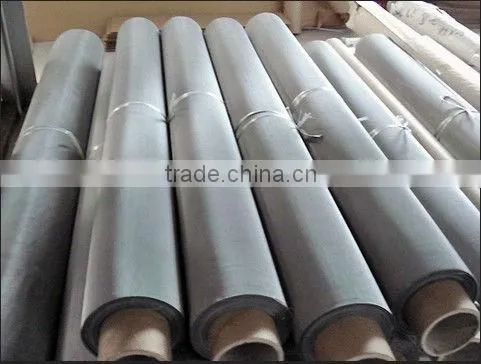

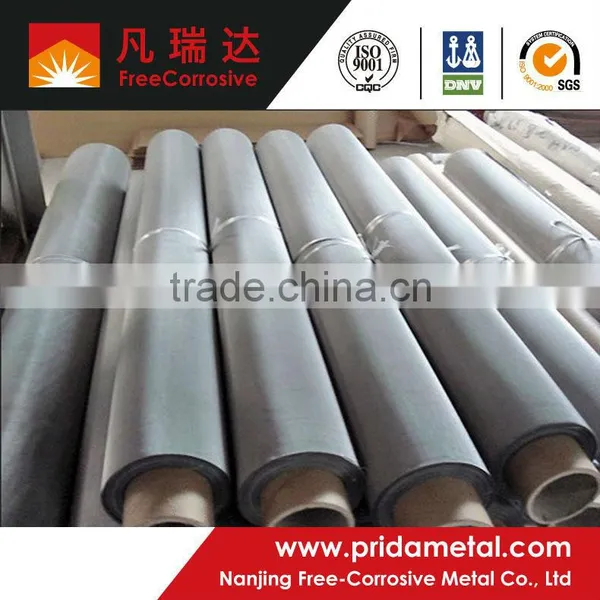

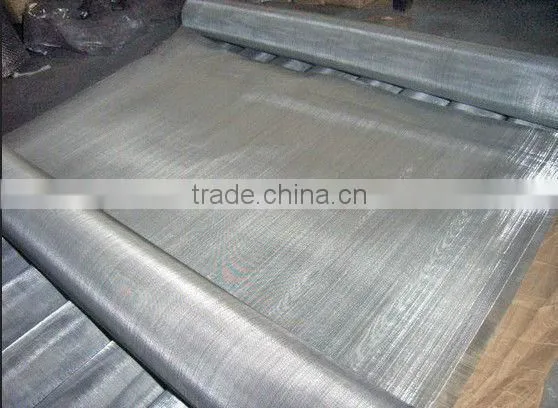

11.The pictures of stainless steel wire mesh:

12.Specification:

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
3mesh x 3mesh	14	6.27
4mesh x 4mesh	16	4.27
5mesh x 5mesh	18	3.86
6mesh x 6mesh	18	3.04
8mesh x 8mesh	20	2.26
10mesh x 10mesh	20	1.63
20mesh x 20mesh	30	0.95
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.30
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.060
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	50	0.0385
Roll width: 2'-8'
