PV Fuse Holder/fuse Base

PV Fuse Holder/fuse Base thumbnail-1
PV Fuse Holder/fuse Base thumbnail-2
PV Fuse Holder/fuse Base photo-1
PV Fuse Holder/fuse Base photo-2
US$ 1 - 4.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZJBENY
Model Number:
BR-30
Contact Supplier Request Quote Chat Now
Zhejiang Benyi Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZJBENY
Model Number BR-30
Usage High Voltage
Breaking Capacity High
Safety Standards IEC



Product Description

DC fuse is applied for DC combiner box and Inverter in PV solar system.the function is protect device.

Quick Details

Place of Origin:
Zhejiang China (Mainland)
 Brand Name:
ZJBENY
 Model Number:
BR-30
Usage:
Automotive
 Breaking Capacity:
High
 Safety Standards:
IEC
Rated voltage:
1000VDC
 Rated current:
1~30A
 Standard:
IEC/EN60947-3
Fuse size:
10*38mm

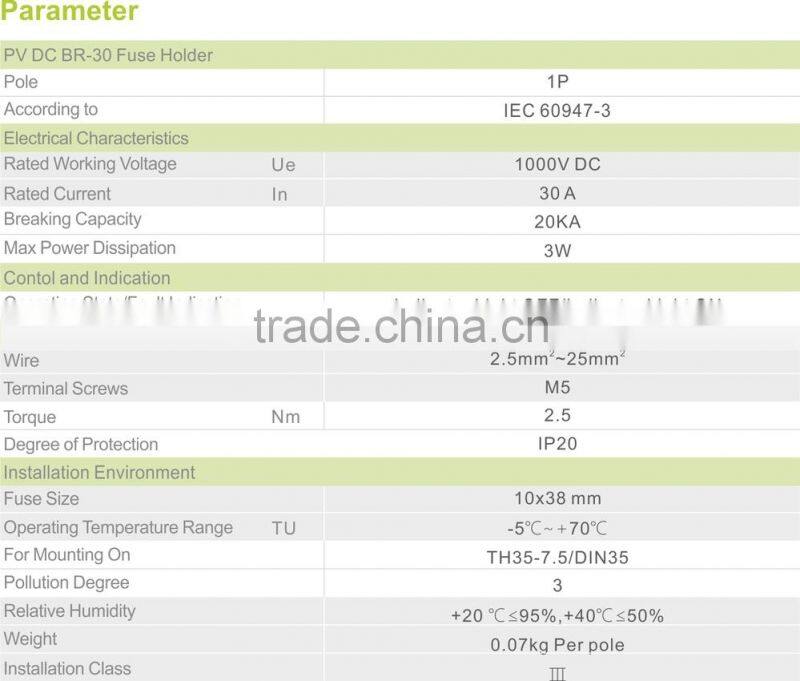

Specifications

1.rated current:1-30A
2.rated voltage: DC 1000V
3.Portection Grade:IP20

DIN rail mounting fuse holders specifically designed for PV & DC applications.

Rated at 1000V, 1~30A DC.

Terminals accept up to 10 sq mm flexible cable, or 16 sq mm rigid wire.

Pull out carrier to enable easy replacement of fuses.





Product Features:



1. DC fuse holder 10*38mm for protecting photovoltaic strings.

2. Rated current: 1A, 2A, 3A, 4A, 6A, 8A, 10A, 16A, 20A, 25A, 30A

3. Rated voltage:1000V

4. Silver plating

5. CE, TUV certificated

6. IEC/EN60947-3 standard

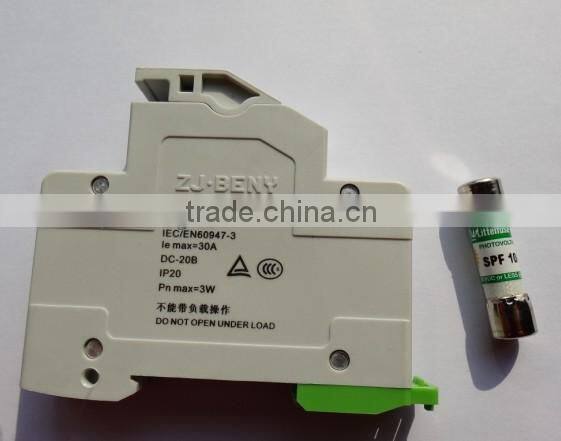

Picture:

PV Fuse holder/fuse basePV Fuse holder/fuse basePV Fuse holder/fuse base







Packaging & Shipping

 Well packed before shipment





PV Fuse holder/fuse base





Our Services

Excellent customer service.







Company Information

We are a professional manufacturer and export of DC isolator switch, DC fuse holder, DC surge protection device, DC mini circuit breaker, DC combiner box and etc for decades.



PV Fuse holder/fuse base
