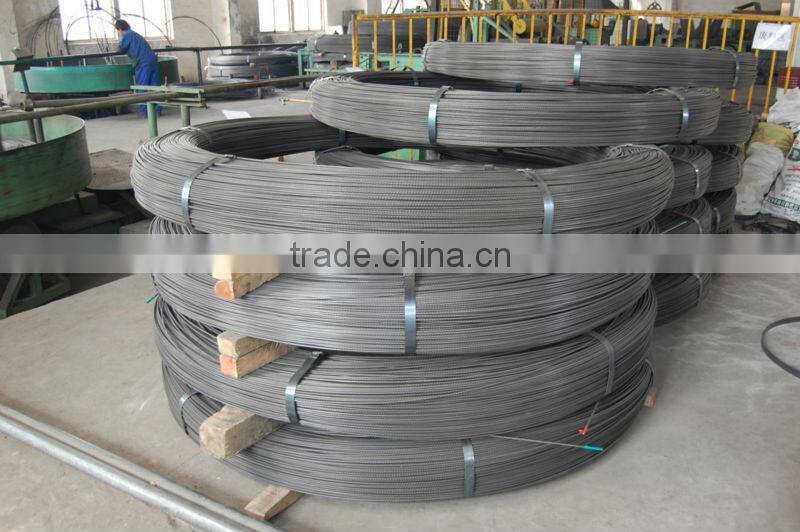

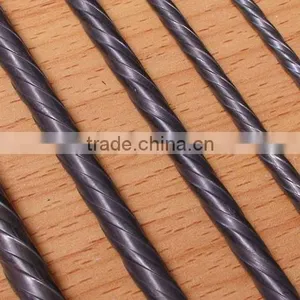

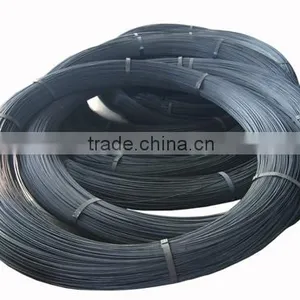

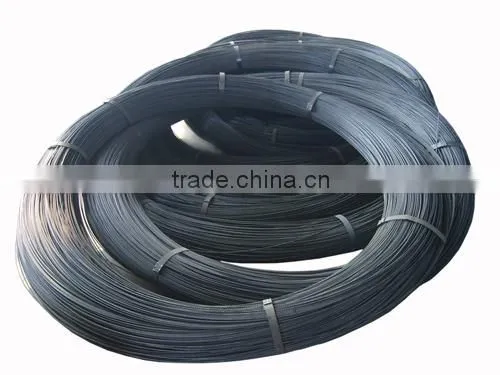

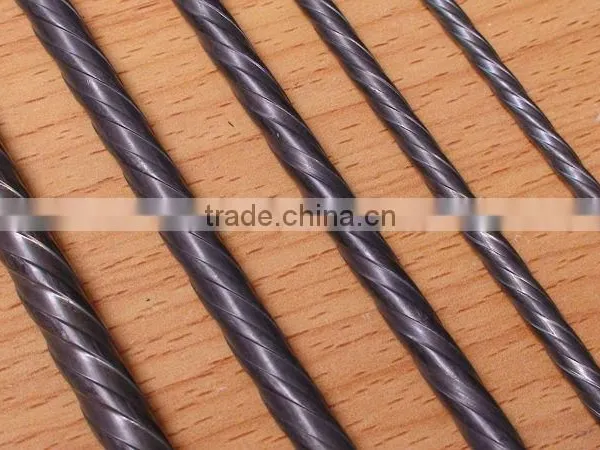

5MM 7MM 9MM Spiral Ribs Prestressed Wire for concrete sleeper
1.Dia:4mm-12mm
2.Standard:BS5896,ASTM A421
3.Min.breaking load:1470-1860MPA
4.PC wire is mainly used as PCCP pipe, fittings, auxiliary reinforcing strand for concrete structure e.g. long spanned bridges on railway, highway, sleeper and in inclined cable of big span bridge
SPECIFICATION
Size/mm |
Tolerance/mm |
Area/mm2 |
Theoretical weight-g/m |
Wire Cross-sectional Size |
Rib Pieces |
Lay Length (Lg)/mm |
|||
Basic-roundDia(D1)/mm |
OutioneDia(D)/mm |
Rib Width(jk)/mm |
Rib Height(jg)/mm |
|
|
||||
4.00 |
±0.04 |
12.57 |
98.6 |
3.85±0.05 |
4.25±0.05 |
0.90~1.30 |
0.15~0.25 |
4 |
24-30 |
4.80 |
±0.05 |
18.10 |
142 |
4.60±0.05 |
5.10±0.05 |
1.30~1.70 |
0.20~0.30 |
28-36 |
|
5.00 |
19.63 |
154 |
4.08±0.05 |
5.30±0.05 |
1.30~1.70 |
0.20~0.30 |
28-36 |
||
5.25 |
21.65 |
170 |
5.05±0.05 |
5.55±0.05 |
1.40~1.80 |
0.20~0.30 |
28-38 |
||
6.00 |
28.27 |
222 |
5.80±0.05 |
6.30±0.05 |
1.60~2.00 |
0.30~0.40 |
30-38 |
||
6.25 |
30.68 |
241 |
6.00±0.05 |
6.70±0.05 |
1.60~2.00 |
0.30~0.40 |
30-40 |
||
7.00 |
38.48 |
302 |
6.73±0.05 |
7.46±0.10 |
1.80~2.20 |
0.30~0.40 |
35-45 |
||
7.50 |
44.18 |
347 |
7.25±0.05 |
7.95±0.05 |
1.90~2.30 |
0.30~0.40 |
40-50 |
||
8.00 |
±0.06 |
50.26 |
394 |
7.75±0.05 |
8.45±0.10 |
2.00~2.40 |
0.30~0.40 |
40-50 |
|
9.00 |
63.62 |
499 |
8.75±0.05 |
9.45±0.05 |
2.10~2.70 |
0.30~0.40 |
42-52 |
||
9.50 |
70.88 |
556 |
9.25±0.10 |
9.25±0.05 |
2.20~2.80 |
0.30~0.40 |
44-55 |
||
10.00 |
78.54 |
616 |
9.75±0.05 |
9.75±0.05 |
2.50~3.00 |
0.30~0.40 |
45-58 |
||
12.00 |
113.1 |
888 |
11.60±0.05 |
12.20±0.10 |
2.80~3.20 |
0.30~0.40 |
50-65 |
||
Size/mm |
Nominal Tensile Strength/Mpa |
Yield Strength/Mpa |
Elongation Lo=200mm/% |
180oBending Times |
Relaxation |
||
Times |
Bending Radius/mm |
Condition |
% |
||||
4.00 |
1470 1570 1670 1770 1860 |
1290 1380 1470 1560 1640 |
≥3.5 |
≥3 |
10 |
Initial load being 70% of nominal breaking strength |
≤2.5 |
4.80 |
≥4 |
15 |
|||||
5.00 | |||||||
5.25 | |||||||
6.00 | |||||||
6.25 |
20 |
||||||
7.00 | |||||||
7.50 |
1470 1570 1670 1770 |
1290 1380 1470 1560 |
|||||
8.00 | |||||||
9.00 |
1470 1570 1670 |
1290 1380 1470 |
25 |
||||
9.50 | |||||||
10.00 |
1470 1570 |
1290 1380 |
|||||
12.00 |
30 |
||||||
Q: Are you a manufacturer or merely a trader?
A: CHUNYUAN is a manufacturer specialized in stainless steel spring wire&rod, so we can provide the best price for you.
Welcome to our factory to have an on-the-spot investigation.
Q: How long has your factory been founded?
A: TianJin ChunYuan Wire Product Co.Ltd, founded in the year of 1995, reformed and re-constructed from a well-reputed state-owned factory with a history of more than half a century.
We are one of the leading company in the wire industry in China with clients all over the world. Now we are looking forward the further co-operationwith you.
Q: May I have your catalog and price list for trial order in MOQ quantity?
A: All our products are shown on Alibaba, please have a detailed looking and choose the interested items in our site.
Q: How do you guarantee the quality of your product?
A: Every process will be checked by responsible QC which insures every product's quality.
We have ISO 9001 certification.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.
Q: May I buy 1 ton for a trial order?
A: If the size you need we have stock, we can offer 1 ton even less for your test.
Q: Any other additional explanations of your factory?
A: Samples can be provided as your requirements. Professional packaging teams keep every packing well and safety. We also have great and excellent experiences with after-sale service.
