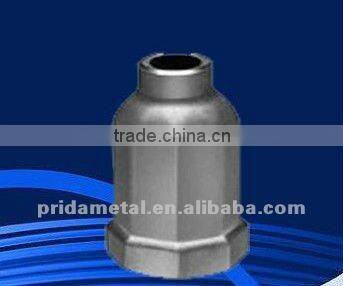

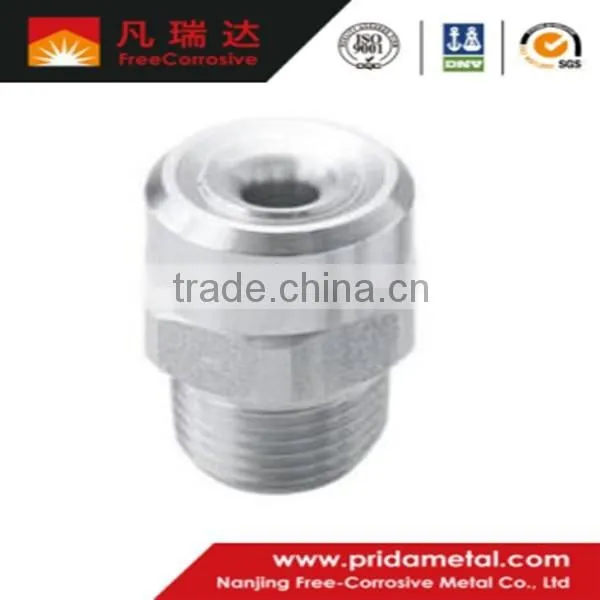

Large Flow of Solid Cone Nozzle

Large flow of solid conical nozzle

1.Application:

a.Super flow spray
b.dust pressure gray
c.Gas Scrubbing
d.desulfurization dust
oled by cooling water
ndenser cleaning
g.chemical tower spray
oling tower spray

2.Design features:
1.An overall structure, the two internal S-shaped leaves form the largest unimpeded path, and one with the nozzle main body casting. The benefits of using such kind of structure: in the case of the same flow, the XY-MP nozzle allows the solid particle diameter than the ordinary solid cone nozzle is three times higher.
2.Unique design to maximize to avoid blockage of the ordinary nozzle in poor working conditions, especially suitable for spraying large flow of slurry containing particles of impurities, easy transportation dirty, liquid multi-block material, such as lime slurry.
3, the low pressure to 0.2 bar to effective spray. The internal channels are streamlined, so that the liquid through a more fluid, no dead ends, no plug, effectively reducing the pressure of the liquid atomization.
4.Diversion effect of the S-shaped leaves, to avoid the spiral layered spray nozzle, makes the spray more uniform and comprehensive.
5. the internal thread or external thread connection from 3/8 inches to 4 inches, and can also choose the flange connection.
6. the material can be selected: brass, 303 stainless steel, 316L stainless steel, Teflon (PTFE) and PP.
7. the spray angle: 30 °, 60 °, 90 ° and 120 °.
8.flow from 2.45 L / min to 3400 L / min, and up according to user needs 17000L/min.
