[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss

Name: [HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss
Brand: HKSANTEK, HKSANTEK
SKU: 103587005
Availability: InStock

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-1

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-2

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-3

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-4

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-5

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss thumbnail-6

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-1

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-2

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-3

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-4

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-5

[HK SANTEK] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss photo-6

US$ 65 - 85 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HKSANTEK, HKSANTEK

Model Number:

SMS, STS

Contact Supplier Request Quote Chat Now

Shenzhen Santek Power Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HKSANTEK, HKSANTEK

Model Number SMS, STS

Application Other, Charger Controller, Charger Controller

Rated Voltage Other, 12V/24V, 12V/24V Solar Charge Controller MPPT

Maximum Current 40A, 40A

[ HK SANTEK ] 12V/24V Solar Charge Controller MPPT 20A 30A 40A 50A For Minimazing Energy Loss

12V/24V Solar Charge Controller MPPT Features:

High converting efficiency higher than 97% for minimizing energy loss
Build-in MPP tracker for optimizing the Power transformation
Reversed current protection for preventing equipment damage
Automatic battery temperature compensation for long-term reliability
Capable of connecting additional DC load for wider applications
Three stage charge control system(bulk,absorption,and float mode) with temperature compensation
LED indicators display charge status in real time
Pulse Width Modulation (pwm) topology combined with a multi-stage charge control algorithn leads to superior

12V/24V Solar Charge Controller MPPT Specification

Controller	SMS
Rated Voltage	12/24VDC				48VDC
Rated charge current	20A	30A	40A	50A	20A
Load current	15A				10A
Input voltage range	15-30Vdc/30-55Vdc				60-110Vdc
Max.PV open circuit array voltage	30Vdc/55Vdc				110Vdc
Typical idle consumption	<200mA
Overload protection(DC load)	2.0*Inom>5s
	1.5*Inom>20s
	1.25*Inom temperature controlled
Bulk charge	14.6V(default)			29.2V(default)
Floating charge	13.4V(default)			26.8V(default)
Equalization charge	14.0V(default)			28.0V(default)
Over charge disconnection	14.8V			29.6V
Over charge recovery	13.6V			27.2V
Over discharge disconnection	10.8V(default)			21.6V(default)
Over discharge reconnection	12.3V			24.6V
Temperature compensation	-13.2mV/°C			-26.4mV/°C
Lead acid battery settings	Adjustable
NiCad battery settings	Adjustable
Load control mode	1.Low Voltage Reconnect(LVR):Adjustable
	2.Low Voltage Disconnect(LVD):Automatic disconnection
	3.Reconnection:Includes warning flash before disconnection and reconnection
Low voltage reconnect	12.0-14.0Vdc			24.0-28.0Vdc
Low voltage disconnect	10.5-12.5Vdc			21.0-25.0Vdc
Ambient temperture	0-40°C(full load) 40-60°C(de-rating)
Altitude	Operating 5000m,Non-Operating 16000m
Protection class	IP21
Battery temperature sensor	BTS-optional remote battery temperature sensor for increased charging precision
Terminal size(fine/single wire)	#8AWG

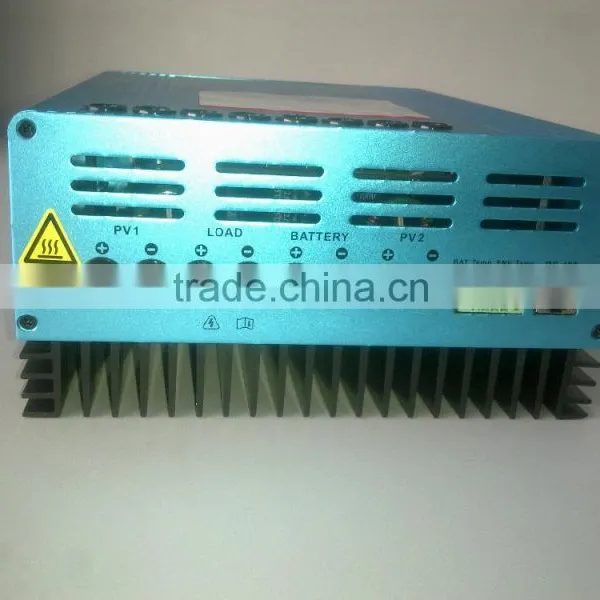

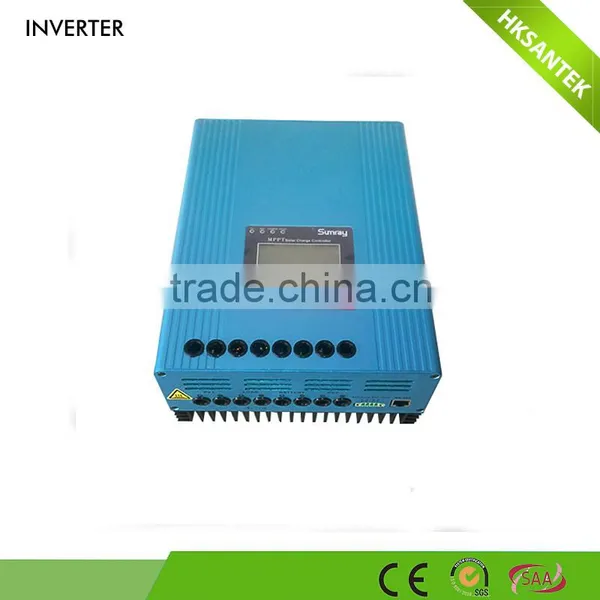

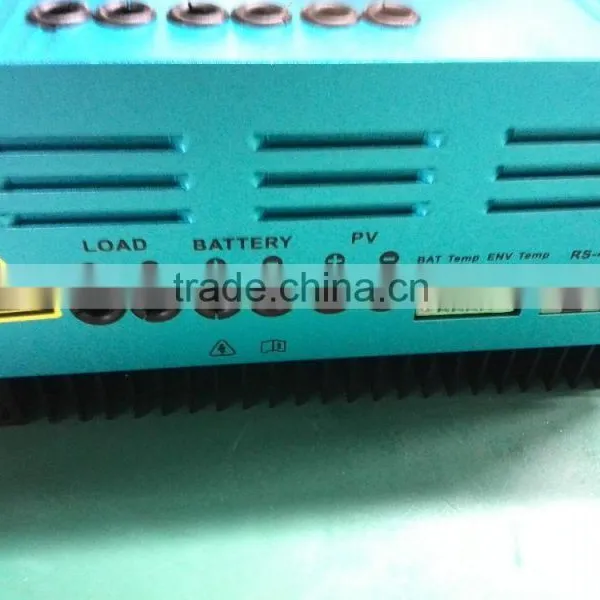

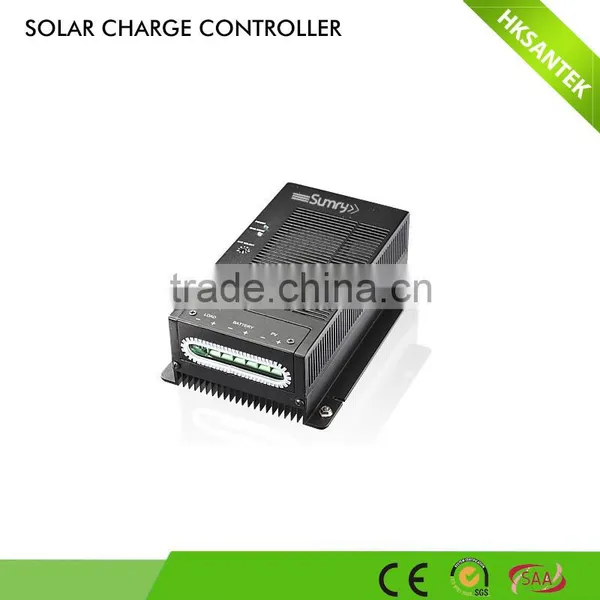

12V/24V Solar Charge Controller MPPT Image:

Interior configuration

Original Electrical Compponents With Superb Quality

12V/24V Solar Charge Controller MPPT PCB Board

Solar energy system

12V/24V Solar Charge Controller MPPT Produce line

12V/24V Solar Charge Controller MPPT Quality Control Equipment:

12V/24V Solar Charge Controller MPPT CERTIFICATION:

12V/24V Solar Charge Controller MPPT Applications:

Computer center,network center,communication system,automation control system or other critical system.
