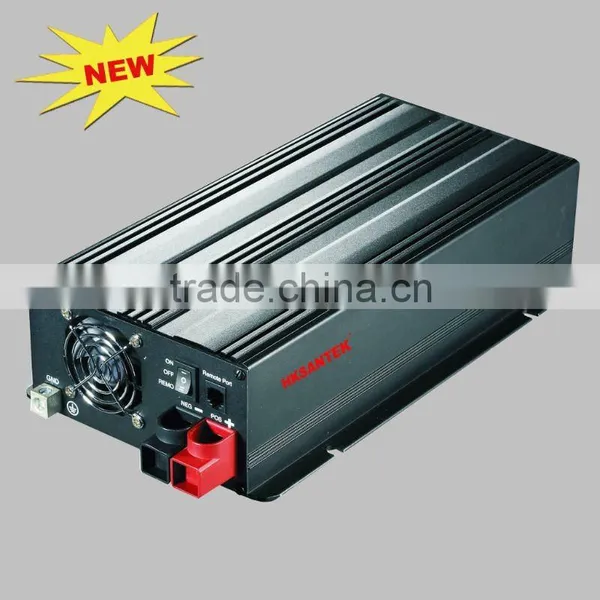

Pv Solar Inverter

Name: Pv Solar Inverter
Brand: HKSANTEK
SKU: 103586235

US$ 30 - 200 MOQ: 50 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HKSANTEK

Model Number:

STS

Shenzhen Santek Power Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HKSANTEK

Model Number STS

Output Power 500 - 1000W

Output Type Single

Size 270*160*70MM

Weight 4KGS

Input Voltage 12V

Output Voltage 220V

Type DC/AC Inverters

Output Frequency 50/60HZ

Specifications

Pv Solar Inverter
1.High-frequency switching tech for compact size.
2.High efficient DC-to-AC conversion minimizing energy los

PV SOLAR INVERTER

Features:

High-frequency switching technology for compact size and light weight
Pure sine wave output (THD < 3%) for wide range of applications and harsh environment
High efficient DC-to-AC conversion minimizing energy loss
N+X parallel redundancy framework design for future expansion
“All master” dynamic mechanism eliminate single point failure to optimize reliability
Low power “Power Saving Mode” to conserve energy for less than 15W
High power density design (up to 3 Watts/In3 for SineTek 1000)
Input/output isolated design for the maximum operation safety
Intelligent cooling fan speed control determined by loads
Comprehensive status LED indicators
DSP Control
Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature
Wall-Mount design for flexible placement

MODEL	STS 600	STS 1000
Output Power (Continuous)	600W	1000W
Surge Rating	1200W	2000W
Nominal Input Voltage	12Vdc
Output Voltage	110/115/120Vac, 220/230/240Vac
Crest Factor	3: 1
Output Frequency	50/60Hz ± 0.1%
Efficiency(Typical)	> 88% for 110/115/120Vac System ; > 90% for 220 230/240Vac System
No Load Current Draw	< 12W		< 20W
Stand-by Current Draw	< 6W		< 10W
Output waveform	Pure Sine Wave
Total Harmonic Distortion	< 3% with Linear Load
Input Voltage Range	10-15Vdc for 12V series
Output Voltage Regulation	110/115/120Vac, 220/230/240Vac ± 5%
Protection	Overload, Short circuits, Reverse polarity, Over/under input voltage, Over temperature
Operating Temperature	–20°C to 70°C ; –5°C to 40 °C with full performance
Dimensions (DxWxH)mm	270 x 160 x 70	355 x 180 x 82
Weight	2.5Kg	4.0Kg
EMC	FCC Part 15, EN55022 Class B
Communication Port	RS232 serial port ( RJ11 type connector )
