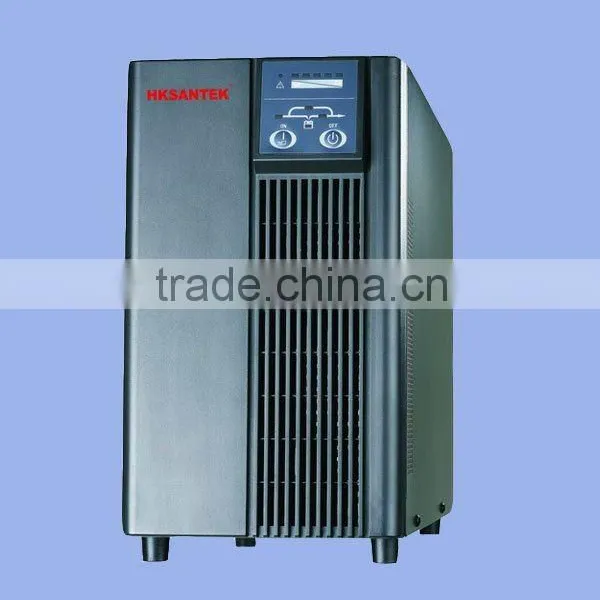

UPS POWER

UPS POWER thumbnail-1
UPS POWER photo-1
US$ 80 - 200 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HKSANTEK
Model Number:
BS
Contact Supplier Request Quote Chat Now
Shenzhen Santek Power Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HKSANTEK
Model Number BS
Phase Single Phase
Protection Overvoltage
Weight 14-30KGS
Output Voltage 110V/220VAC ± 2%
Type On-line
Application Telecommunications

Specifications

online ups
1.Wide input voltage range
2.Zero transfer time
3.Protection against all type of power problems

UPS

Key Features

  • True on-line double conversion technology with advanced microprocessor control
  • Wide input voltage range
  • Zero transfer time
  • Protection against all type of power problems
  • Self test while start of the UPS
  • Site wiring fault warning
  • On-battery power-on function
  • Smart RS232 communication interface
  • Intelligent slot available
  • Sealed lead-acid, maintenance free battery
Technical Specifications

Product Series
CASTLE
Model
BS1K
BS2K
BS3K
Rated Power
VA/W
1kVA / 0.7kW
2kVA / 1.4kW
3kVA / 2.1kW
Input
Nominal Voltage
110V/220VAC
Voltage Range
60V~136V/115 ~ 300VAC
Frequency Range
46~54Hz(default), user adjustable within 40~60Hz
Power Factor
0.97
Connection
IEC320-10A inlet
IEC320-16A inlet
Output
Voltage
110V/220VAC ± 2%
Frequency
46~54Hz or 50Hz ± 0.2Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)
Waveform
Sine Wave
Distortion
3%
4%
Overload Capability
108%~150% for 30 sec., ³150% for 300 ms
Current Crest Ratio
3:1
Connections
IEC320 * 4
IEC320 * 6
IEC320 * 3 and
Terminal Block
Battery
Type
Sealed, Maintenance free, Lead-Acid
Quantity
3 pieces
8 pieces
Back-up Time (Full load)
5 min
9 min
5 min
Recharge Time
5 hrs to 90% of capacity after full load discharge
Bypass

Automatic Transfer
on overload and UPS failure
Before UPS Power-on
Default NO, user adjustable to YES
Voltage Range
80~264VAC (Default), user adjustable within 80~286VAC
Transfer Time
0 ms; less than 4 ms from inverter to bypass and vice versa
LED Indicators
Status
Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm
Bypass, On battery mode, Battery low, Overload, Fault
Acoustic Noise
At 1 meter distance
45 dBA
50 dBA
Communications
DB-9 Port
RS-232 Serial Interface
Intelligent Slot
Options: WebPower, AS400 Card or WinPower CMC
Network Surge Protection
RJ45 I/O port available for network or Fax/Modem
Environmental
Operating Temperature
0 ~ 40°C
Operating Humidity
20 ~ 90% non-condensing
Weight
Net (Kg)
13
31.5
32
Dimensions
W x D x H (mm)
145 x 400 x 220
192 x 460 x 348
