New !!! High quality 24v 48v mppt solar charge controller 30a
USD $99 - $299
/ Piece
10 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C Credit Card
You May Like
-
TENTEK EMS Controller 1.6kW with Smart Meter
-
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
-
Ipandee Ce Fcc Rohs Certificate Pv Input Rs485 Solar Regulator Mppt 40A 12V 24V Mppt Charge Controller For Household
-
Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
-
Ipandee Off-Grid System Explorer-Ns Series Oled Display Suitable All Battery 30A 40A 50A 60A 12V 24V Solar Controller For Rv
-
Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Smray | Model Number: | SMS, STS |
| Application: | Other, Solar System Controller, Charger Controller | Rated Voltage: | Other, 12v 24v 48v, 12V/24V/36V/48V Solar Charge Controller MPPT | Maximum Current: | 40A 60A |
Product Description
New !!! High quality 24v 48v mppt solar charge controller 30a
Product Description
Major features:
High converting efficiency higher than 97% for minimizing energy loss
Build-in MPP tracker for optimizing the Power transformation
Reversed current protection for preventing equipment damage
Automatic battery temperature compensation for long-term reliability
Capable of connecting additional DC load for wider applications
Three stage charge control system(bulk,absorption,and float mode) with temperature compensation
LED indicators display charge status in real time
Pulse Width Modulation (pwm) topology combined with a multi-stage charge control algorithn leads to superior

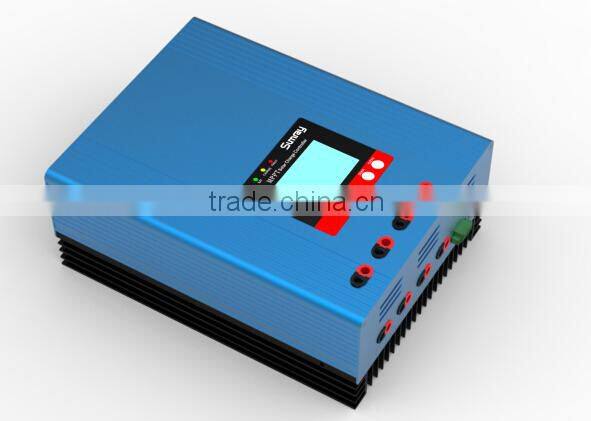

Picture view
Parameter
| Technology Specifications: | ||||
| Model | SMY2430DM | SMY3630DM customization | SMY2460DM | SMY3660DM customization |
| PV Input data(PV) | ||||
| Max. PV voltage | 200V | 200V | 200V | 200V |
| Start voltage | 10v | 30V | 10v | 30V |
| Battery voltage | 12V/24V/48 auto | 36V/60V auto | 12V/24V/48 auto | 36V/60V auto |
| MPPT voltage range | 14V-160V | 41V-160V | 14V-160V | 41V-160V |
| Suggest input Voc voltage | 30V/60V/100V | 80V/120V | 30V/60V/100V | 80V/120V |
| Max. input current | 30A | 30A | 30A/30A | 30A/30A |
| Number of MPP trackers | 1 | 1 | 2 | 2 |
| Number of input trackers | 1 | 1 | 2 | 2 |
| Max.PV Input power | 12V 400W | 36V 1200W | 12V 800W | 36V 2400W |
| 24V 800W | 48V 1600W | 24V 1600W | 48V 3200W | |
| Charger Output (DC) | ||||
| Floating voltage | 13.5V/27V/54V | 40.5V/67.5V | 13.5V/27V/54V | 40.5V/67.5V |
| Max. output current | 30A | 30A | 60A | 60A |
| Rating output current | 10A/20A/30A opt | 10A/20A/30A opt | 40A/50A/60A opt | 40A/50A/60A opt |
| Define output current | 30A | 30A | 60A | 60A |
| Ripper voltage(rating voltage) | <0.5% | <0.5% | <0.5% | <0.5% |
| Efficiency | ||||
| Max. efficiency | 96.50% | 97% | 97.50% | 97.50% |
| MPPT efficieny | 99.50% | 99.50% | 99.50% | 99.50% |
| Protection devices | ||||
| PV reverse polarity protection | yes | yes | yes | yes |
| BAT reverse polarity protection | yes | yes | yes | yes |
| Input Overvoltage Protection | Yes | Yes | Yes | Yes |
| Input overcurrent Protection | Yes | Yes | Yes | Yes |
| DC output Overcurrent protection(10A) | Yes | Yes | Yes | Yes |
| Internal overtemperature protetion | Yes | Yes | Yes | Yes |
| Battery discharger low voltage protect | Yes | Yes | Yes | Yes |
| General Data | ||||
| Dimensions (W / H / D) in mm | 160/200/95 | 160/200/95 | 200/240/95 | 200/240/95 |
| Weight | 1.5KG | 1.5KG | 3KG | 3KG |
| Operating temperature range | -10...+50℃(14...+ 122°F) with derating above 40°C(104°F) | |||
| Noise emission (typical) | ≤ 25 dB(A) | |||
| Altitude | Up to 2000m(6560ft) without power derating | |||
| Relative humidity | 20 to 80% relative humidity (non-condensing) | |||
| Consumption: operating (standby) / night | <3W / < 0.75 W | <3W / < 0.75 W | <3W / < 0.75 W | <3W / < 0.75 W |
| Topology | Buck | Buck | Buck | Buck |
| Cooling concept | Natural | Natural | Natural | Natural |
| Environmental Protection Rating | IP20 | IP20 | IP20 | IP20 |
| Features | ||||
| PV connection: | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
| Battery connection: | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
| DC output connection: | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
| Battery type choice | Yes | Yes | Yes | Yes |
| Environment temperature detect | Yes | Yes | Yes | Yes |
| Battery temperature detect | Yes | Yes | Yes | Yes |
| Temperature compensate for battery | Yes | Yes | Yes | Yes |
| DC output control(10A) | yes | yes | yes | yes |
| Interfaces: RS485 | yes | yes | yes | yes |
| Warranty: 1years / 2 years | yes /opt | yes /opt | yes /opt | yes /opt |
| RTC clock | opt | opt | opt | opt |
| LCD Display | opt | opt | opt | opt |
| Remote monitor | opt | opt | opt | opt |
| Certificates and approvals | CE,IEC 62109,CQC | |||
