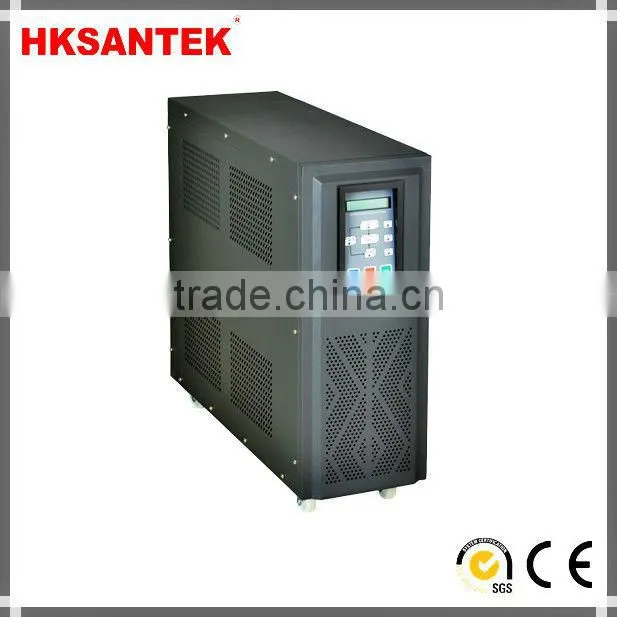

Low Frequency Single Phase Industry UPS 1KVA-20KVA For Networking Equipments

Specifications

1.Single Phase Industry UPS 1KVA
2.Double conversion
3.Excellent load feature
4.Perfect protection.

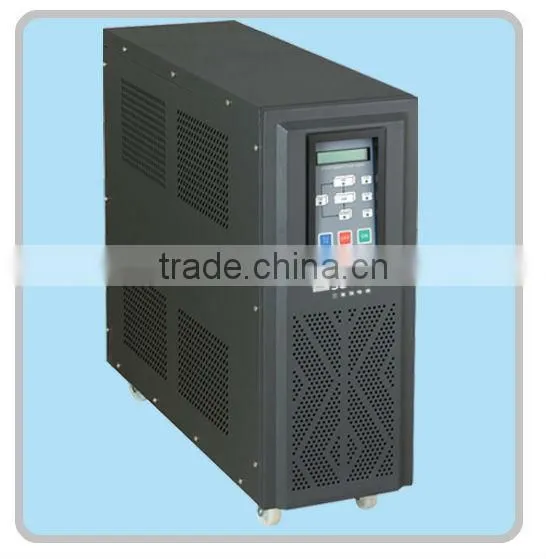

Low Frequency Single Phase Industry UPS 1KVA-20KVA For Networking Equipments

Brief introduction

MD series online UPS, an fully intelligent digital UPS, highly combines the latest controller and the most advanced software. It takes the sixth generation low-exhaust and big-power IGBT and static switch as power devices. This kind of UPS is a perfect production of us. It adopts the digital controlling technology, of which the core is high-speed on-line programmed microprocessor.



Main Features

1.Pure sine wave output, true on-line dual conversion design

2.SMD technology.

3.High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
4.LCD display, with the simple operation and Intuitive data, optional display language and logo

5.Intelligent detecting function

6.Excellent load feature
7.Cold start

8.Generator compatible

9.Intelligent communication

10.Perfect protection.

Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.

 11.Selectable battery inspection module





Specification





INDUSTRY UPS(1:1): G-MD1000VA-15000VA
Model No.	1KS/N	2KS/N	3KS/N	4KS/N	6KS/N	8KS	10KS	12KS	15KS
Power Capacity(VA/W)	1K/0.8K	2K/1.6K	3K/2.4K	4K/3.2K	6K/4.8K	8K/6.4K	10K/8K	12K/9.6K	15K/12K
Input
Nominal Voltage	120VAC/230VAC
Voltage Range	85-135VAC/150-310VAC
Frequnency Range	50Hz or 60Hz ±5%
Power Factor	over 0.97
Phase	Single Phase + GND
Max I/P current(120V)	12A	20A	28A	48A	68A	90A	112A	130A	168A
Max I/P current(230V)	6A	10A	14A	24A	34A	45A	56A	65A	84A
Output
Voltage	120VAC/230VAC±1%
Frequnency	Sync to input(line mode),50Hz or 60Hz±0.05
Waveform Type	pure sinewave
Phase	Single Phase + GND
Voltage Distortion	≤3% for linear load
Overload Capacity	110%-150% for 5 minutes or over 150% for 300ms then transfer to bypass & alarm
Power Factor	over 0.8
Auto Retransfer	After overload recovering 100% load
Crest Power	3 times of ratings
Batteries
type	Maintenance-free sealed Lead-Acid battery
Nominal DC Voltage	48VDC(192VDC optional)			192VDC
Charging Time	8-10 hours for 90% capacity after full discharge
Transfer time	0 ms(line to battery mode)
Protections	overload,short circuit,over temperature,surge,line abnormal
Display
LED	Operation mode(online,battery,bypass),battery capacity,abnomal,overload
LCD	I/P voltage & frequency,battery volt,O/P voltage & frequency,
	load percentage,Operation mode,temperature inside
Efficiency	over 0.85 for whole unit
Comunications & Management
Interface Port	RS-232
Intelligent Slot	SNMP Card (optional)
Enviromental
Operation Enviroment	0-40°C
Storage Enviroment	-25°C~55°C
Relative Humidity	0-95%RH(non-condensing)
Audible Noise	less 55dB
Physical
Net/Gross Weight(KG)	46/56	63/78	75/90	65/85	69/89	88/118	100/130	120/140	150/175
Dimension,DxWxH(mm)	530x200x460	600x200x490		580x220x540			580x220x700	590x300x870	670x410x935
for "S" type
Dimension,DxWxH(mm)	530x200x600	580x220x700
for "N" type
*Specifications are subject to change without prior notice.







Produce line







Quality Control Equipment:





Applications:



 Computer center,network center,communication system,automation control system or other critical system.
