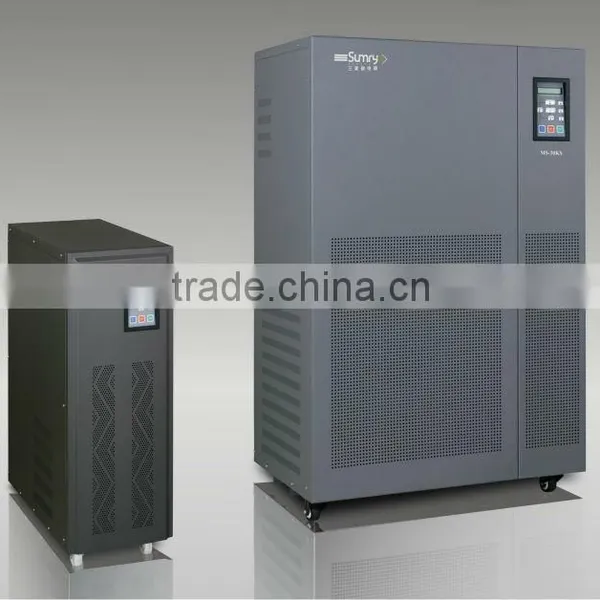

New Industrial Frequency Three Phase Online UPS 10KVA For Networking Equipments

Specifications

1.Frequency Three Phase Online UPS
2.True online double conversion
3.IGBT inverter design
4.Optional SNMP

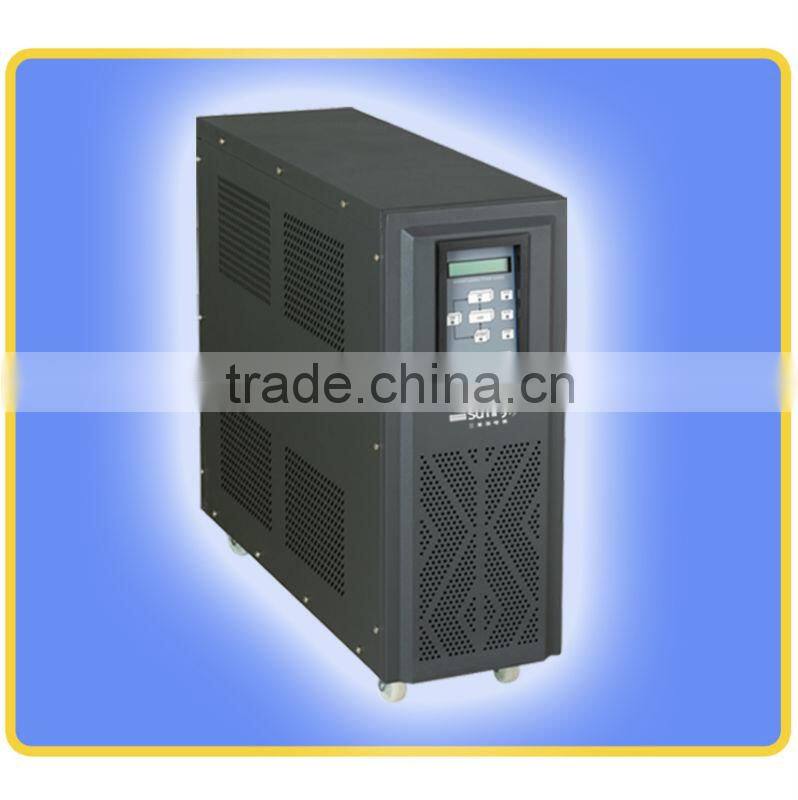

New Industrial Frequency Three Phase Online UPS 10KVA For Networking Equipments

Application:

Critical servers, storage appliance and other networking equipments

Features:

True online double conversion design providing all power protection

Sine wave PWM function

IGBT inverter design

Wide input voltage range

Pure sine wave output with less than 3% THD

Generator compatible

Cold start

Load/battery power meter display

Overload, online, battery status LED/LCD

Advanced battery management

Automatic charging in UPS off mode

Zero transferring time on any mode transfer

Smart RS-232 communication port

Optional SNMP card

SPECIFICATION
MODEL	6KS	10KS	15KS	20KS	25KS	30KS
RATED POWER	6KVA	10KVA	15KVA	20KVA	25KVA	30KVA
(VA/W)	4.8KW	8KW	12KW	16KW	20KW	24KW
INPUT
INPUT VOLTAGE	380VAC(3 phases) or 190VAC(3 phase)
VOLTAGE RANGE	304-456VAC or 152-228VAC
FREQUENCY	50/60Hz±5%
Power Factor	>0.8
Max. input current	10A	16A	24A	32A	40A	56A
OUTPUT
Voltage	230VAC/120VAC±1%
Frequency	Sync to input(line mode),50Hz or 60Hz±0.05
Waveform Type	pure sinewave
Power Factor	0.8
THD	<3% with linear load
Overload Capability	110%-150% for 5 minutes or >150% for 300ms then transfer to bypass & alarm
Current Crest Ratio	3:1(max)
overall efficiency	>90%
Transfer Time
From inverter to battery	0ms
Battery
Voltage	192VDC				240
Recharge Time	8~10 hrs to 90% of capacity after full load discharge
LED /LCD Indications
LED	Battery level,utility power,inverter,bypass,Fault, overload
LCD	Input/output voltage,Frequency,battery voltage,load percent,Tempreature
Communications
interface	RS232       SNMP(optional)
Protection Standard
Surge Protection	lEEE527B
Noise protection	FCC.A
Working conditon
Temperature	0~40°C
Humidity	0~95%°C non-condensing
Storage tempreature	-25°C~55%°C
Acoustic Noise	<55dB(at 1 meter distance)
Weight
N.W(Kg)	118	155	240	297	326	336
G.W(Kg)	138	175	265	327	356	366
W×D×H mm	310X590X870		410X670X935	725X430X 1180
S: long backup
YD/T  1095-2000









Produce line







Quality Control Equipment:





Applications:



 Computer center,network center,communication system,automation control system or other critical system.







About the company





HKSANTEK'S Quality Policy



Qaulity is a system, quality is a project,it can contains all the activities of the whole factory,HKSANTEK's belief is "behave



ourseleves firstly, then keep the materials &produce in good level, finally assure the products's quality.everyactivity



effect the quality, so every one is the QC staff in factory.



All the running of HKSANTEK Company is compliant with the ISO9001-2008 and ISO 14001-2004
