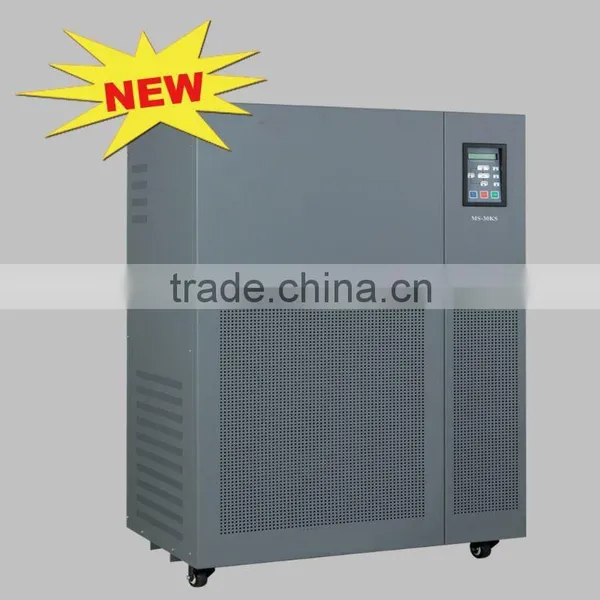

MS Series Low Frequency Online Ups 3/1 Phase In/Out

MS Series Low Frequency Online Ups 3/1 Phase In/Out thumbnail-1
MS Series Low Frequency Online Ups 3/1 Phase In/Out photo-1
US$ 500 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HKSANTEK
Model Number:
MS
Contact Supplier Request Quote Chat Now
Shenzhen Santek Power Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HKSANTEK
Model Number MS
Phase Three Phase
Protection Short Circuit
Weight 100kgs
Output Voltage 380VAC
Type On-line
Application Security / Monitoring / Alarm

Specifications

1.6KVA to 80KVA Low Frequency Online Ups
2.Pure sine wave output
3.Excellent load feature
4.Perfect protection

The MS series (3/1) Low Frequency Online Ups

Brief introduction

MS series on-line intelligent digital UPS congregates the essence of our technology and entirely break the bottleneck technology in traditional simulation circuit era. It adopts the digital control technology, of which the core is high-speed MCU and CPLD. It takes the sixth generation low-exhaust and big-power IGBT and static switch as power devices. Guided by these most advanced technologies in the world, it is really the first-class product.



Main Features

1. Pure sine wave output, true on-line dual conversion design

2. SMD technology.

3. High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
4. LCD screen display.

5. Intelligent detecting function

6. Excellent load feature
7. Cold start

8. Generator compatible

9. Intelligent communication

With RS232 and RS485 standard collocation, optional SNMP and dry contact

10. Perfect protection.

Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.

11. Selectable battery inspection module

Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.

Model

MS-6K

MS-10K

MS-15K

MS-20K

MS-30K

MS-40K

MS-60K

MS-80K

Nominal capacity(KVA)

6KVA

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

Work principle

Pure sine wave  on line

Phase

3phase+N+G

Input power factor

>0.8,>0.95

Rectifier

Nominal input voltage

220/380VAC,230/400VAC,240/415VAC

Range

±25%

Nominal input frequency

50Hz±10%,60Hz±10%

Charge

Charge mode

constant current to constant voltage, with temp compensation; with Auto change

Battery

Battery Type

maintenance-free lead acid battery

Battery capacity

7~999AH settable (according to the capacity)

Battery number

30pcs 12V,or 180pcs 2V(Nominal voltage 360VDC)

Inverter

Phase

Single L+N+G

Rated power

Rated capacity ×0.8

Nominal  voltage

220/380VAC,230/400VAC,240/415VAC

Output voltage stability

±1%( Stable  load); ±3%( fluctuant load)

Output frequency stability

50Hz/60Hz ±0. 5%

Crest factor

> 3 : 1

Bypass

Phase

Single L+N

Protection

Input protection

Input voltage/frequency over limited ;wrong phase; lack phase protection

Output protection

Over current; short circuit ; factor low protection

Battery protection

Over charge ; over-discharge protection

Temperature protection

Environment over temperature protection; inverter over temperature protection

Hardware  failure  protection

Assistant power abnormal, breaker cut off ,breaker overload, power devices  over current/over voltage etc protection

System Parameters

Working environment

Temp: 0~40°C, relative humidity 30%~90 %

(  1% decrease against 100 meters’ rise. Altitude 4000m MAX)

Redundancy function

Tandem hot backup or parallel connection

Noise (dB)

45~50

50~55

55~58

55~60

Dimension(W×D×H)mm

430×750×1050

430×765×1050

430×765×1080

980×800×1800

Weight(Kg)

70

135

158

185

215

318

445

498
