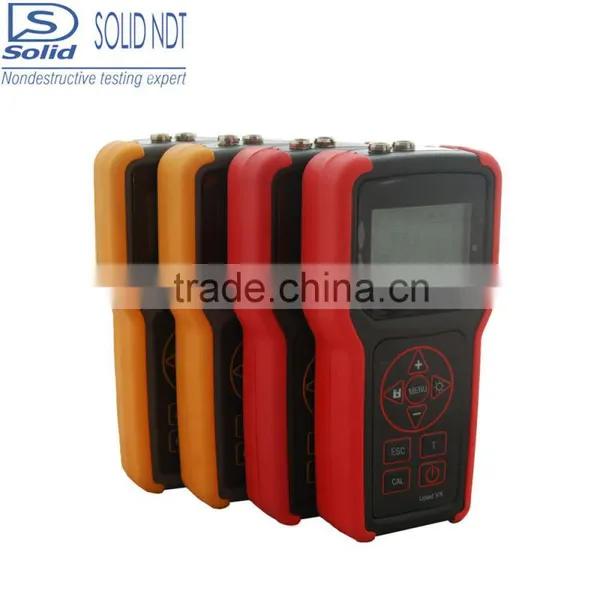

Solid 2015 Newest Ultrasonic Velocity Gauge Used photo-2
Solid 2015 Newest Ultrasonic Velocity Gauge Used photo-3

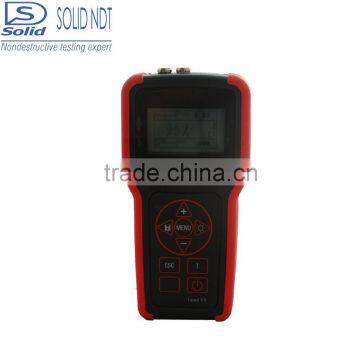

Solid 2015 Newest Ultrasonic Velocity Gauge Used photo-4
Solid 2015 Newest Ultrasonic Velocity Gauge Used photo-5
Solid 2015 Newest Ultrasonic Velocity Gauge Used photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Solid
Model Number:
UPAD VX
Contact Supplier Request Quote Chat Now
Solid (Beijing) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Solid
Model Number UPAD VX
Power Electronic
Usage Auto Testing Machine

 Solid 2016 Newest  Ultrasonic Velocity Gauge Used Solid 2015 Newest Ultrasonic Velocity Gauge Used







Advantages





1) Accuracy 1% Resolution



2) Extra-long standby time:200 hours



4) Massive Data Memory-100,000 data sets Statistic Function



5) Free to change between huge font and normal font



7)Excellent after-sale service system for high quality products---1 year’s guarantee and all life maintenance. Easy to buy and comfortable to use.





Technology Parameter





Measuring Range

1.0-1,200mm

Measuring Resolution

0.01mm(< 100mm)/ 1mm(>100mm)

Velocity

500~20,000m/s( 20 fixed velocities)

Delay

Display Delay: -20~3400us resolution: 0.1us  Probe Delay : 0~99us resolution: 0.01us

Auto Calibration

Velocity Calibration& Probe Delay Calibration

Linear Error

Horizontal linearity error≤0.1%   Vertical linearity error ≤3%

Dynamic Range

≥36dB

Sensitivity Leavings

≥64dB 200mm 2 flat-bottomed hole

Dimension (mm)

240*180*50

Weight

1.9Kg(including battery pack)

Working Environment

Temperature:-20°C~70°C, Humidity:5%~90%,

Pulse

150V Negative Pulse

Damping :50/150/400Ω

Pulse repetition frequency PRF could be adjusted

Receiver

Measuring mode:Peak /Verge

Bandwidth:0.3~1 / 0.5~4 /2~15MHz

Detector Pattern: RF/Full-Wave/Positive /Negative half- wave

Testing Mode: pulse-Echo/Pulser-Receiver/transmission

Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12

Display

LCD

TFT Color. Display,5 options for variable brightness.

GUI Theme

Simple/Classical/Gray/Bright Light/ Dark Light

Screen Update Rate

≥60 Hz

Gate/Measuring/ Alarm

Gate

Two Separated Gates A/B

Value Display

5 value display areas, one of them is mainly area.

Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/

dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB

Alarm

Thickness Value Threshold Alarm ,Separated Gate Alarm Logically

Memory

Channelparameters: 20 groups

A Scan: 2000 groups

Thickness Logging: 200,000 data sets ,liner

Wave Video: 5 min

Reference Wave:4

Input/Output

Probe Cable: LEMO/BNC

Communication :RS232

Area

Language: Chinese /English

Unit: mm/inch

Clock: Date and Time

Power Source

Battery:High power lithium battery ,capable of preventing over-charge and over-discharge

Power Indicator:Proportional battery gauge indicating remaining operation time

Working Time:Continuous working over 10 hours

Power adapter:Input 100~240V/50~60Hz output 9VDC/4A

High Grade

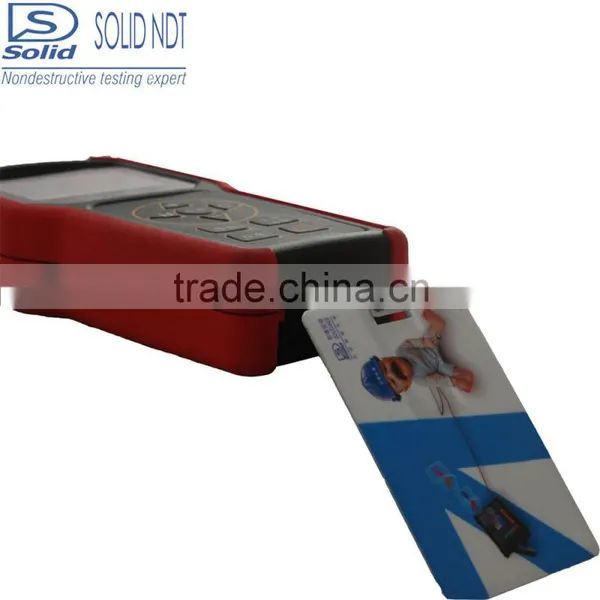

USB for Storage

3 kinds of data report, screenshot , wave, thickness value

Gate:

Analysis the details of the wide gate area

B Scan:

Thickness/ Shape scan Gray/Color board Design

Freezing Curve

Yes

Feature Indicator

Measuring of the sound distance wave front & amplitude

CSC Curve Calibration

Value correction according to probe angle,

pieces thickness and curvature diameter

Lock

Single menu independently lock to avoid system adjust related data;

Data group could lock to avoid wrong delete

Screen saver

Standby/Character/Power Off

Equivalent Curve

DAC curve

Recording 30 calibration points; auto gain; any order calibration;

Two correction matter calibration/edit;

Considering of material attenuation and surface saving factor;

5 estimate curves of adjusted gain, comply to JIS&API standard

DGS Curve

DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes;

considering of material attenuation and surface saving factor,

estimating flaw matter; equivalent size/equivalent gain/percentage;

Standard Package

Main Body     1





Straight probe           1

Angle probe     1

Manuel        1





Carrying Case            1

Probe Cable     1

Coupling Paste   1





Power Adaptor            1

Battery         1 group

Optional Accessories

Interface Gate:Applied when flaw detector in a environment which has medium, e.g water

Printer:TP serial printer , 3 data report: screen shot , wave , thickness value

Huge capacity battery:Continuous working time: over 20 hours





Details



Solid 2015 Newest Ultrasonic Velocity Gauge Used

Solid 2015 Newest Ultrasonic Velocity Gauge Used









Application





Upad VX Series fit to measure cast iron,metal,plastic,china,glass,glass fiber and any



other good conductors of ultrasonic,complies to JB/T9219 Standards





Configuration





Standard

Configuration

No

ITEM

QUANTITY



1

Main Unit

1



2

Probe

1 (5M)



3

Carrying Case

1



4

Coupling Paste

1



5

Operating Manual

1



6

Barry

1 group





Solid 2015 Newest Ultrasonic Velocity Gauge Used



Packaging&Shipping

1.FedEx/DHL/UPS/TNT for samples, Door-to-Door

2.By Air or by Sea for batch goods, Customers specifying freight forwarders or

negotiable shipping methods!

3. Delivery Time:Trial Order: Order in stock shipped within 48 hours after payment. Customized Order: About 5~7 business days after payment



Company Introduction



Solid(Beijing) Technology CO.,Ltd is a high-tech business enterprise located in the



Beijing Zhongguancun Hightech Park,based on research and development,production



and marking of industrial testing equipment.Our team has a soild technical strength



and rich marking experience.



We provide reliable industrial testing products and related technical services for our



customers in China and the whole world.

FAQ

*How to become a distributor?

--If you have the developing and marketing ability, welcome to become a distributor, please contact us for further information.

*What advantage of being a distributor?

--Tech support & Discounted & VIP customer service etc.

* Why choose us?

--Solid is leading manufacturer of NDT.

--As the original manufacturer, Solid provide the best solutions, service and the most competitive price.

--We offer quality guarantee, one year warranty for all the models.

--Solid  group have over 9 years factory experience on NDT product.

--Solid have gained good reputation from the domestic and foreign customers.

--Our administration concept is credibility highest and service highest.

--Technology First , Quality First, Services First.
