Specifications
Ultrasonic Velocity GaugeNondestructive Velocity Testing
Auto Probe Zeroing Calibration Without Block
Por metal detector portable Ultrasonic Velocity Sensor

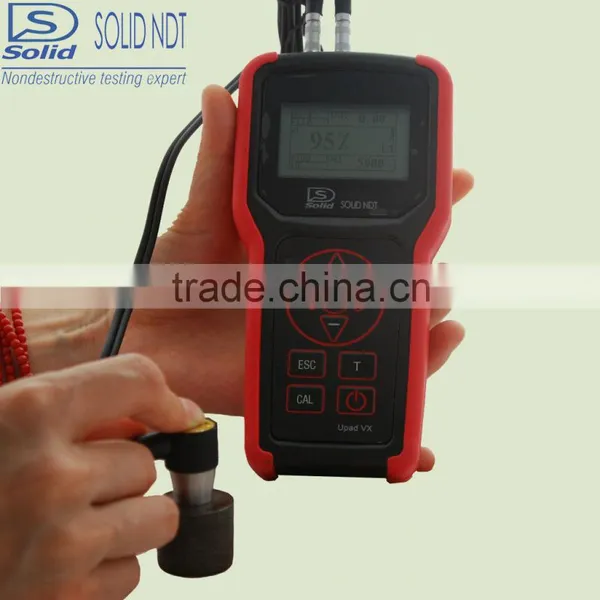

Upad VX Series: Professional Design, Meeting Demand
Upad VX Series Ultrasonic Velocity Gauge will be the best choice for accomplishing measurement with its superior feather. It is reliable and durable.Upad VX Series fit to measure cast iron, metal, plastic, china, glass, glass fiber and any other good conductors of ultrasonic, complies to JB/T9219 Standards
SPECIFICATIONS
Principle |
Ultrasonic(Pulse-Echo/Echo-Echo) |
Dimension (mm) |
165×82×30 |
|||
Resolution |
0.1mm(> 100mm)/0.01mm(<100mm) |
Accuracy |
±(0.5%H+0.01)mm |
|||
Nodularity |
Percentage: 50~100%,1% Grade:1-6 |
Thickness Range |
0.75-50mm |
|||
Velocity |
1000~9999m/s |
Weight |
250g |
|||
Calibration |
Auto Sound-Velocity-Calibration |
Measuring Range |
Noarmal:0.75-40mm Coating: 2-25mm |
|||
Auto Probe Zeroing Calibration |
Pulser |
150V Negative Pulse |
||||
Indicator |
Probe Connection Indicator |
Receiver |
Gain |
High/Low/Auto |
||
Coupling Indicator |
Bandwidth |
0.5-15MHz |
||||
Environment |
Temperature:-20°C~70°C |
Measuring |
Result Showing |
Online Statistic/Velocity |
||
Humidity:5%~90% |
Statistic |
Online:Max Min ,Standard Devration |
||||
DISLAY |
LCD |
High-Contract 128*64 |
File: Max, Min AVG, mean square error |
|||
|
Beautiful printed characters, Number , Symbol, High Brightness EL Backlight |
Alarm |
Threshold Acoustooptical Alarm |
||||
Memory |
Files |
1000 groups |
||||
Thickness Logging |
1000 data sets/group ,liner |
|||||
|
Update Rate |
Single Point: 5 times/s |
USB Storage |
Connection USB is allowed, convenient to read thickness values |
|||
Scan Mode: 25times/s | ||||||
Input/Output |
Probe Cable |
LEMO 00 (C5) x2 |
Standard Package |
Main Body |
1 |
|
Communication |
USB |
Probe |
1 |
|||
Language |
Chinese /English |
Manuel |
1 |
|||
Unit |
mm/inch |
Carrying Case |
1 |
|||
Power Source |
Battery |
1.5V AAA x4 |
Coupling paste |
1 |
||
Working Time |
200 hours |
Battery |
1 group |
|||
Transport Service
We established in 2005. We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
