Home > Instruments & Meters > Weighing & Measuring Apparatus > Measuring Device > Solid UPADX200 Ultrasonic Gauge Metal Thickness Meter
Solid UPADX200 Ultrasonic Gauge Metal Thickness Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Solid
Model Number:
Upad
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solid UPADX200 Cast Aluminum Alloys Ultrasonic Thickness Gauge ManualNegotiableMOQ: 1 Piece -
Solid UPADX200 Accuracy Ultrasonic Thickness Gauge ManualNegotiableMOQ: 1 Piece
-
Beijing Manufacturer of Portable Ndt Ultrasonic Thickness GaugeNegotiableMOQ: 1 Piece
-
Solid UPADX200 Used Portable Ultrasonic Thickness Gauge ManualNegotiableMOQ: 1 Piece
-
Solid UPADX200 Used Digital Ultrasonic Thickness Gauge ManualNegotiableMOQ: 1 Piece
Place of Origin
Beijing, China
Brand Name
Solid
Model Number
Upad

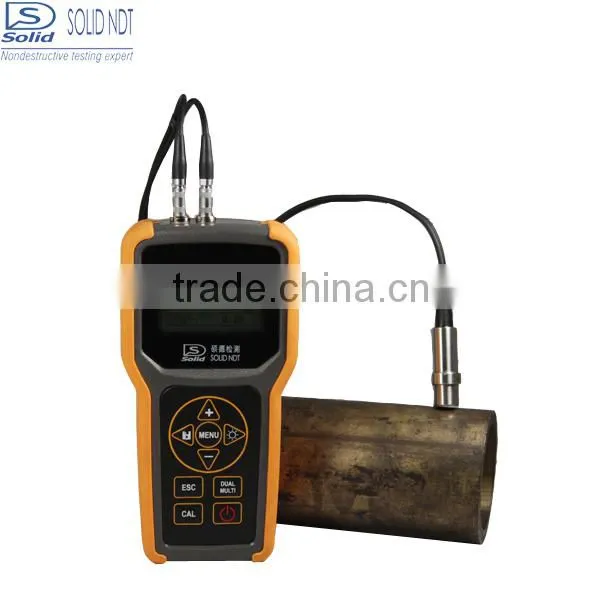

Solid UPADX200 ultrasonic gauge metal thickness meter
Feature
SOLID ultrasonic thickness gauge is used for measuring the thickness of nonmetallic plate indirectly, especially for steel sheet , pipe , iron . This gauge is to measure the Steel Sheet thickness mainly by using distribution characteristics of electromagnetic field and possesses functions of thickness measurement, data analysis, data storage & output etc. It is a kind of intelligent thickness measuring instrument that is portable, convenient and accurate.
Specification
| Principle | Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | ||||
| Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | ||||
| Velocity | 1000~9999m/s | Weight | 250g | ||||
| Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | ||||
| Auto Probe Zeroing Calibration | Pulse | 150V Negative Pulse | |||||
| Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | |||
| Coupling Indicator | Bandwidth | 0.5-15MHz | |||||
| Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | |||
| Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | |||||
| DISPLAY | LCD | High-Contract 128*64 | File: | Max, Min AVG, mean square error | |||
| Beautiful printed characters,Number, Symbol, High Brightness EL Backlight | Alarm | Threshold Acoustooptical Alarm | |||||
| Thickness Logging | 1000 data sets/group ,liner | Memory | Files | 1000 groups | |||

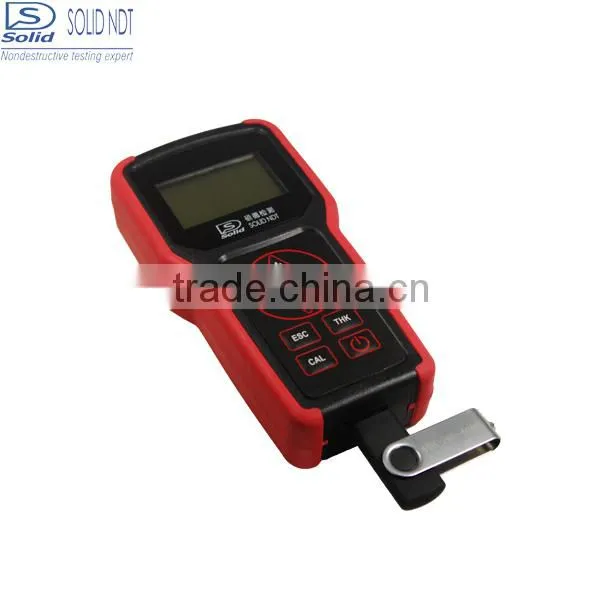

| Update | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | ||||
| Rate | |||||||
| Scan Mode: 25times/s | Standard Package | 1 | |||||
| Input/Output | Probe Cable | LEMO 00 (C5) x2 | Main Body | 1 | |||
| Communication | USB | Probe | 1 | ||||
| Language | Chinese /English | Manuel | 1 | ||||
| Unit | mm/inch | Carrying Case | 1 | ||||

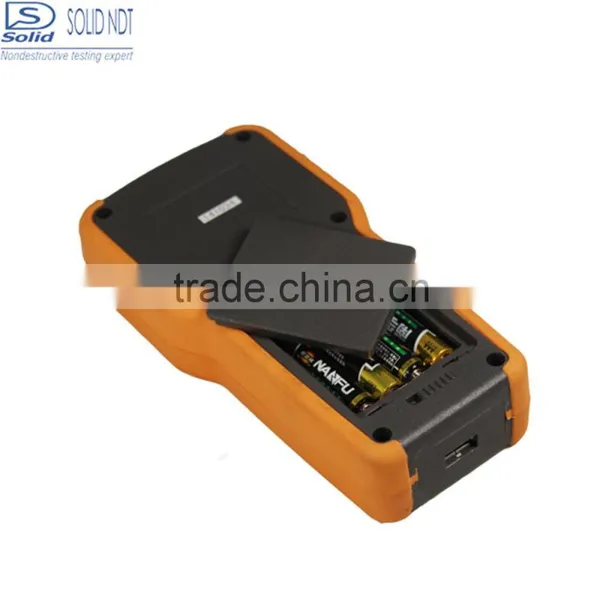

| Power Supply | Battery | 1.5V AAA x4 | Coupling paste | 1 | |||
| Working Time | 200 hours | Battery | 1 | ||||
Application:
