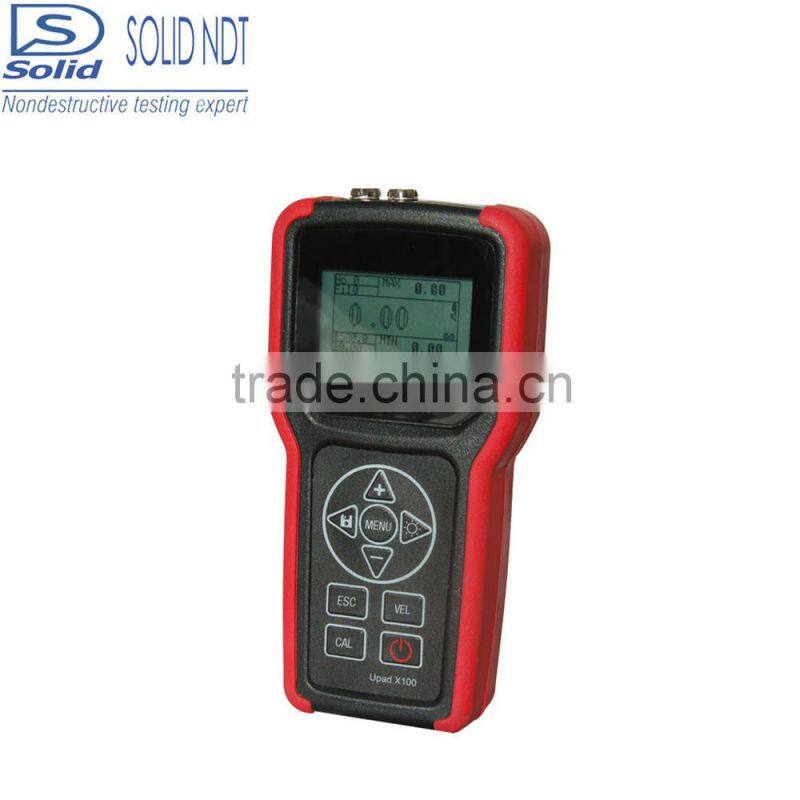

Solid Newest gold ultrasonic thickness gauge meter
Advantages
1)USB for Storage,Plug and Play
(convenient to read thickness values)
2)Massive Data Memory-100,000 data sets
(1000 files could be saved,every file could memory 1000 data sets)
3)Statistic Function
(Online Statistic:Max Min,Standard Devration)
(Document Statistic:Max Min Average,mean square error)
4)Probe Connection/Coupling Indicator
5)Excellent after-sale service system for high quality products---1 year’s guarantee and all life maintenance. Easy to buy and comfortable to use.
Technology Parameter:
Principle |
Ultrasonic(Pulse-Echo/Echo-Echo) |
Dimension (mm) |
165×82×30 |
||||
Resolution |
0.1mm(> 100mm)/0.01mm(<100mm) |
Accuracy |
±(0.5%H+0.01)mm |
||||
Velocity |
1000~9999m/s |
Weight |
250g |
||||
Calibration |
Auto Sound-Velocity-Calibration |
Measuring Range |
Noarmal:0.75-40mm Coating: 2-25mm |
||||
Auto Probe Zeroing Calibration |
Pulse |
150V Negative Pulse |
|||||
Indicator |
Probe Connection Indicator |
Receiver |
Gain |
High/Low/Auto |
|||
Coupling Indicator |
Bandwidth |
0.5-15MHz |
|||||
Environment |
Temperature:-20°C~70°C |
Measuring |
Result Showing |
Online Statistic/Velocity |
|||
Humidity:5%~90% |
Statistic |
Online:Max Min ,Standard Devration |
|||||
DISPLAY |
LCD |
High-Contract 128*64 |
File: |
Max, Min AVG, mean square error |
|||
|
Beautiful printed characters,Number, Symbol, High Brightness EL Backlight |
Alarm |
Threshold Acoustooptical Alarm |
|||||
Thickness Logging |
1000 data sets/group ,liner |
Memory |
Files |
1000 groups |
|||
Update |
Single Point: 5 times/s |
USB Storage |
Connection USB is allowed, convenient to read thickness values |
||||
Rate |
|||||||
Scan Mode: 25times/s |
Standard Package |
1 |
|||||
Input/Output |
Probe Cable |
LEMO 00 (C5) x2 |
Main Body |
1 |
|||
Communication |
USB |
Probe |
1 |
||||
Language |
Chinese /English |
Manuel |
1 |
||||
Unit |
mm/inch |
Carrying Case |
1 |
||||
Power Source |
Battery |
1.5V AAA x4 |
Coupling paste |
1 |
|||
Working Time |
200 hours |
Battery |
1 |
||||
Details
Application
1)Various parts of instruments, to provide fast, accurate measurement of the plate and the parts processing table.
2)Another important application of this watch is monitoring the production equipment of all kinds of piping and pressure vessel, in the use of monitor to the refinement degree. Can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.

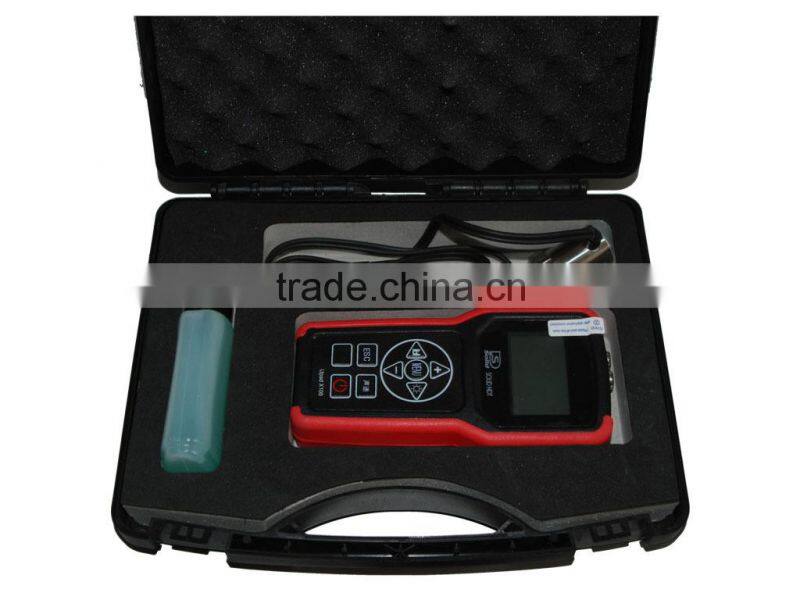

Configuration
|
Standard Configuration |
No |
ITEM |
QUANTITY |
1 |
Main Unit |
1 |
|
2 |
Probe |
1 (5M) |
|
3 |
Carrying Case |
1 |
|
4 |
CouplingPaste |
1 |
|
5 |
Operating Manual |
1 |
|
6 |
Barry |
1 group |
Packaging&Shipping
1.FedEx/DHL/UPS/TNT for samples, Door-to-Door
2.By Air or by Sea for batch goods, Customers specifying freight forwarders or
negotiable shipping methods!
3. Delivery Time:Trial Order: Order in stock shipped within 48 hours after payment. Customized Order: About 5~7 business days after payment
Company Introduction
Solid(Beijing) Technology CO.,Ltd is a high-tech business enterprise located in the Beijing Zhongguancun Hightech Park,based on research and development,production and marking of industrial testing equipment.Our team has a soild technical strength and rich marking experience. We provide reliable industrial testing products and related technical services for our customers in China and the whole world.
FAQ
*How to become a distributor?
--If you have the developing and marketing ability, welcome to become a distributor, please contact us for further information.
*What advantage of being a distributor?
--Tech support & Discounted & VIP customer service etc.
* Why choose us?
--Solid is leading manufacturer of NDT.
--As the original manufacturer, Solid provide the best solutions, service and the most competitive price.
--We offer quality guarantee, one year warranty for all the models.
--Solid group have over 9 years factory experience on NDT product.
--Solid have gained good reputation from the domestic and foreign customers.
--Our administration concept is credibility highest and service highest.
--Technology First , Quality First, Services First.
