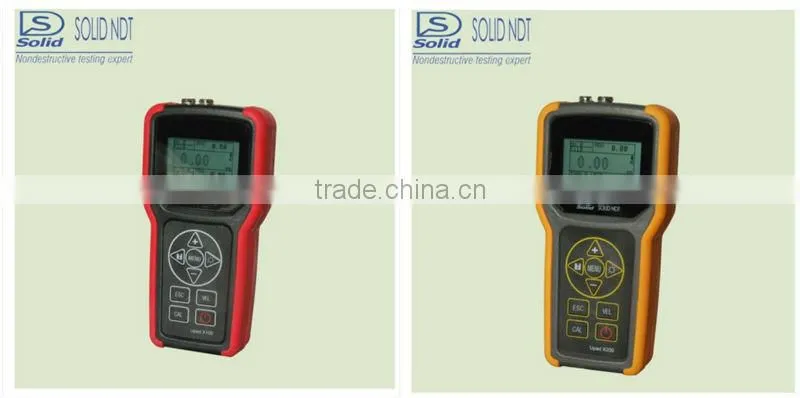

Solid 2013 Newest Upad X ultrasonic thickness tool

Principle

Ultrasonic(Pulse-Echo/Echo-Echo)

Dimension (mm)

165×82×30

Resolution

0.1mm(> 100mm)/0.01mm(<100mm)

Accuracy

±(0.5%H+0.01)mm

Velocity

1000~9999m/s

Weight

250g

Calibration

Auto Sound-Velocity-Calibration

Measuring Range

Noarmal:0.75-40mm Coating: 2-25mm

Auto Probe Zeroing Calibration

Pulse

150V Negative Pulse

Indicator

Probe Connection Indicator

Receiver

Gain

High/Low/Auto

Coupling Indicator

Bandwidth

0.5-15MHz

Environment

Temperature:-20°C~70°C

Measuring

Result Showing

Online Statistic/Velocity

Humidity:5%~90%

Statistic

Online:Max Min ,Standard Devration

DISLAY

LCD

High-Contract 128*64

File: Max, Min AVG, mean square error

Beautiful printed characters,

Number , Symbol, High Brightness EL Backlight

Alarm

Threshold Acoustooptical Alarm

Memory

Files

1000 groups

Thickness Logging

1000 data sets/group ,liner

Update

Rate

Single Point: 5 times/s

USB Storage

Connection USB is allowed, convenient to read thickness values

Scan Mode: 25times/s

Input/Output

Probe Cable

LEMO 00 (C5) x2

Standard Package

Main Body

1

Communication

USB

Probe

1

Language

Chinese /English

Manuel

1

Unit

mm/inch

Carrying Case

1

Power Source

Battery

1.5V AAA x4

Coupling paste

1

Working Time

200 hours

Battery

1 group

Mode

Zero Calibration

Measuring Accuracy

USB

Coating

Statistic

Function

Memory

Upad X100

V

0.1/0.01mm

X

X

Online

100 teams

Upad X200

V

0.1/0.01mm

V

X

Online/Data

500 teams

Upad X300

V

0.1/0.01mm

V

V

Online/Data

1000 teams
