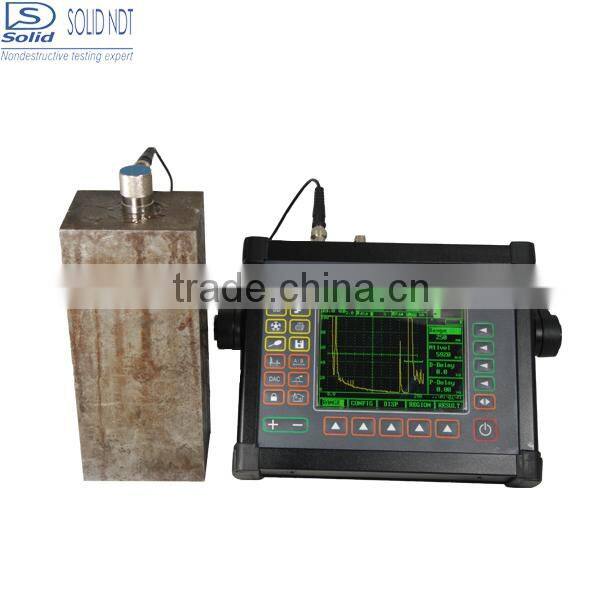

Handled Portable Ultrasonic Flaw Detector
Feature

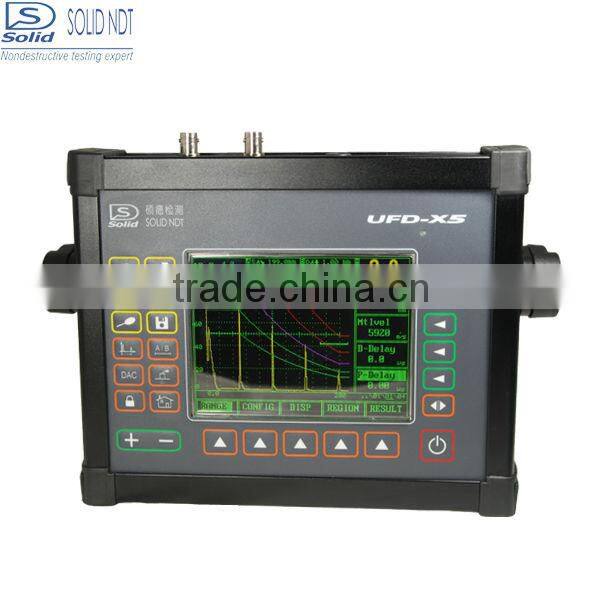

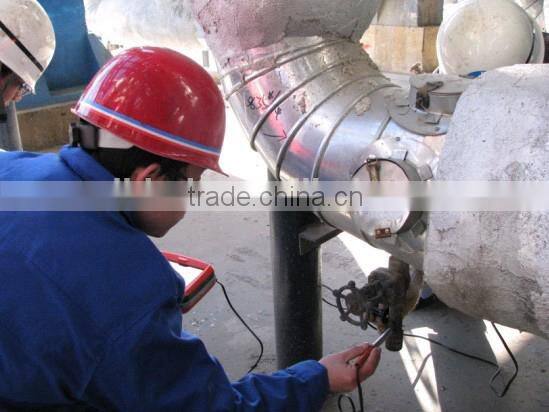

SOLID UFD X5 digital intelligent ultrasonic detectors uses the latest ultrasonic detector design and manufacturing technology, perfectly blend the science technology and humanity, elegant and fashionable.Using integrated circuit, free charge maintenance and design, high-Speed USB data communications. Widely used in electric power, railway, petrochemical industry, boiler pressure, steel structure steel manufacturing, metallurgy industry, shipbuilding, aerospace and other fields.
Specification
| Measuring Range | 1.0-1,200mm | |||||||||||
| Measuring Resolution | 0.01mm(< 100mm)/ 1mm(>100mm) | |||||||||||
| Velocity | 500~20,000m/s( 20 fixed velocities) | |||||||||||
| Delay | Display Delay: -20~3400us resolution: 0.1us Probe Delay : 0~99us resolution: 0.01us | |||||||||||
| Auto Calibration | Velocity Calibration& Probe Delay Calibration | |||||||||||
| Linear Error | Horizontal linearity error≤0.1% Vertical linearity error ≤3% | |||||||||||
| Dynamic Range | ≥36dB | |||||||||||
| Sensitivity Leavings | ≥64dB 200mm 2 flat-bottomed hole | |||||||||||
| Dimension (mm) | 240*180*50 | |||||||||||
| Weight | 1.9Kg(including battery pack) | |||||||||||
| Working Environment | Temperature:-20°C~70°C, Humidity:5%~90%, | |||||||||||
| Pulse | 150V Negative Pulse | Damping :50/150/400Ω | ||||||||||
| Pulse repetition frequency PRF could be adjusted | ||||||||||||
| Receiver | Measuring mode:Peak /Verge | Bandwidth:0.3~1 / 0.5~4 /2~15MHz | ||||||||||
| Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | ||||||||||||
| Testing Mode: pulse-Echo/Pulser-Receiver/transmission | ||||||||||||
| Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 | ||||||||||||
| Display | LCD | TFT Color. Display,5 options for variable brightness. | ||||||||||
| GUI Theme | Simple/Classical/Gray/Bright Light/ Dark Light | |||||||||||
| Screen Update Rate | ≥60 Hz | |||||||||||
| Gate/Measuring/ Alarm | Gate | Two Separated Gates A/B | ||||||||||
| Value Display | 5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB | |||||||||||
| Alarm | Thickness Value Threshold Alarm ,Separated Gate Alarm Logically | |||||||||||
| Memory | Channelparameters: 20 groups | A Scan: 2000 groups | ||||||||||
| Thickness Logging: 200,000 data sets ,liner | Wave Video: 5 min | Reference Wave:4 | ||||||||||
| Input/Output | Probe Cable: LEMO/BNC | Communication :RS232 | ||||||||||
| Area | Language: Chinese /English | Unit: mm/inch | Clock: Date and Time | |||||||||
| Power Supply | Battery:High power lithium battery ,capable of preventing over-charge and over-discharge | |||||||||||
| Power Indicator:Proportional battery gauge indicating remaining operation time | ||||||||||||
| Working Time:Continuous working over 10 hours | ||||||||||||
| Power adapter:Input 100~240V/50~60Hz output 9VDC/4A | ||||||||||||
| High Grade | USB for Storage | 3 kinds of data report, screenshot , wave, thickness value | ||||||||||
| Gate: | Analysis the details of the wide gate area | |||||||||||
| B Scan: | Thickness/ Shape scan Gray/Color board Design | |||||||||||
| Freezing Curve | Yes | |||||||||||
| Feature Indicator | Measuring of the sound distance wave front & amplitude | |||||||||||
| CSC Curve Calibration | Value correction according to probe angle, pieces thickness and curvature diameter | |||||||||||
| Lock | Single menu independently lock to avoid system adjust related data; | |||||||||||
| Data group could lock to avoid wrong delete | ||||||||||||
| Screen saver | Standby/Character/Power Off | |||||||||||
| Equivalent Curve | DAC curve | Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard | ||||||||||
| DGS Curve | DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; | |||||||||||

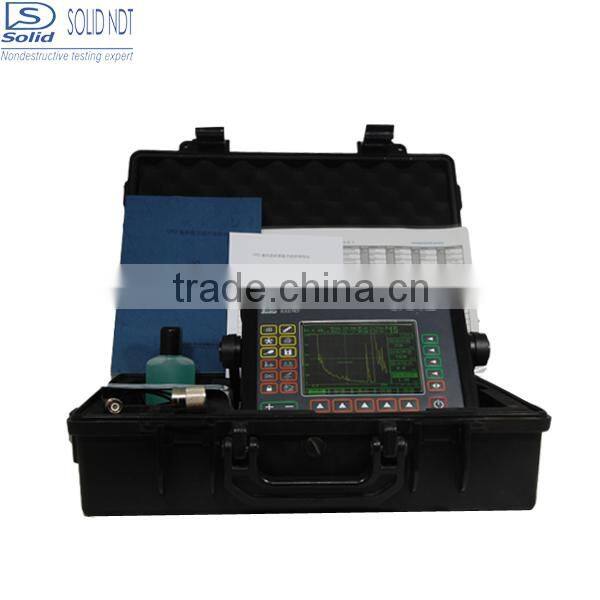

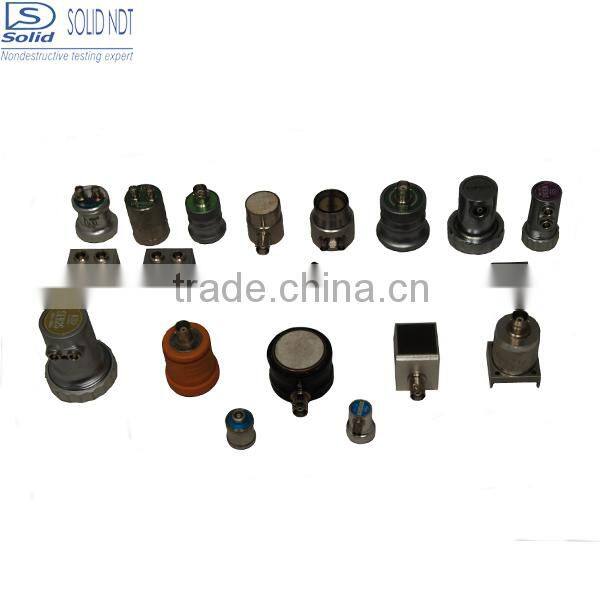

| Standard Package | Main Body 1 | Straight probe 1 | Angle probe 1 | |||||||||
| Manuel 1 | Carrying Case 1 | Probe Cable 1 | ||||||||||
| Coupling Paste 1 | Power Adaptor 1 | Battery 1 group | ||||||||||
| Optional Accessories | Interface Gate:Applied when flaw detector in a environment which has medium, e.g water | |||||||||||
| Printer:TP serial printer , 3 data report: screen shot , wave , thickness value | ||||||||||||
| Huge capacity battery:Continuous working time: over 20 hours. | ||||||||||||
