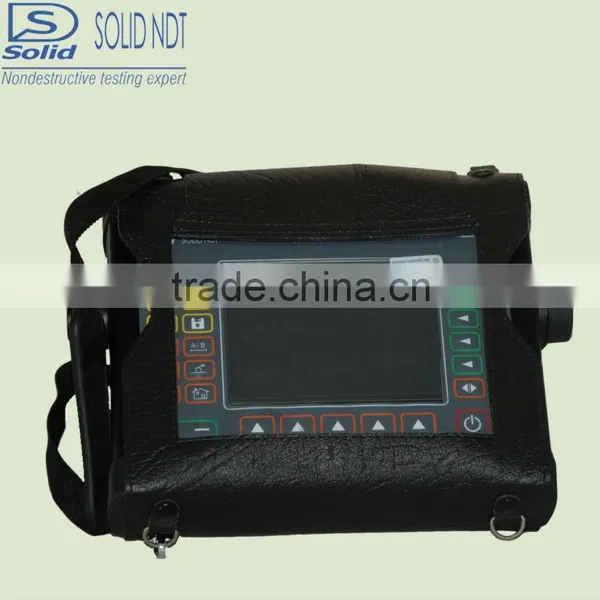

Solid USB Z6E Electronic Power Ultrasonic Flaw Detector

Name: Solid USB Z6E Electronic Power Ultrasonic Flaw Detector
Brand: Solid
SKU: 103567693
Availability: InStock

Solid USB Z6E Electronic Power Ultrasonic Flaw Detector thumbnail-1

Solid USB Z6E Electronic Power Ultrasonic Flaw Detector photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Solid

Model Number:

UFD-X5

Contact Supplier Request Quote Chat Now

Solid (Beijing) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Solid

Model Number UFD-X5

Specifications

1:USB for Storage ,Plug and Play
2:B Scan-Display Flaw Directly
3:5 intelligent DAC curves

electronic power ultrasonic flaw detector
Solid 2013 Newest UFD X Series Ultrasonic Flaw Detector

UFD X5 Specification

Measuring Range		1.0-1,200mm
Measuring Resolution		0.01mm(< 100mm)/ 1mm(>100mm)
Velocity		500~20,000m/s( 20 fixed velocities)
Delay		Display Delay: -20~3400us resolution: 0.1us Probe Delay : 0~99us resolution: 0.01us

Auto Calibration	Velocity Calibration& Probe Delay Calibration
Linear Error	Horizontal linearity error≤0.1% Vertical linearity error ≤3%
Dynamic Range	≥36dB
Sensitivity Leavings	≥64dB 200mm 2 flat-bottomed hole
Dimension (mm)	24018050
Weight	1.9Kg(including battery pack)
Working Environment	Temperature:-20°C~70°C, Humidity:5%~90%,
Pulse	150V Negative Pulse			Damping :50/150/400Ω
	Pulse repetition frequency PRF could be adjusted
Receiver	Measuring mode:Peak /Verge			Bandwidth:0.3~1 / 0.5~4 /2~15MHz
	Detector Pattern: RF/Full-Wave/Positive /Negative half- wave
	Testing Mode: pulse-Echo/Pulser-Receiver/transmission
	Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12
Display	LCD	TFT Color. Display,5 options for variable brightness.
	GUI Theme	Simple/Classical/Gray/Bright Light/ Dark Light
	Screen Update Rate	≥60 Hz
Gate/Measuring/ Alarm	Gate	Two Separated Gates A/B
	Value Display	5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB
	Alarm	Thickness Value Threshold Alarm ,Separated Gate Alarm Logically
Memory	Channelparameters: 20 groups				A Scan: 2000 groups
	Thickness Logging: 200,000 data sets ,liner				Wave Video: 5 min		Reference Wave:4
Input/Output	Probe Cable: LEMO/BNC		Communication :RS232
Area	Language: Chinese /English		Unit: mm/inch			Clock: Date and Time
Power Source	Battery:High power lithium battery ,capable of preventing over-charge and over-discharge
	Power Indicator:Proportional battery gauge indicating remaining operation time
	Working Time:Continuous working over 10 hours
	Power adapter:Input 100~240V/50~60Hz output 9VDC/4A
High Grade	USB for Storage	3 kinds of data report, screenshot , wave, thickness value
	Gate:	Analysis the details of the wide gate area
	B Scan:	Thickness/ Shape scan Gray/Color board Design
	Freezing Curve	Yes
	Feature Indicator	Measuring of the sound distance wave front & amplitude
	CSC Curve Calibration	Value correction according to probe angle, pieces thickness and curvature diameter
	Lock	Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete
	Screen saver	Standby/Character/Power Off
Equivalent Curve	DAC curve	Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard
	DGS Curve	DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage;

Standard Package	Main Body 1	Straight probe 1	Angle probe 1
	Manuel 1	Carrying Case 1	Probe Cable 1
	Coupling Paste 1	Power Adaptor 1	Battery 1 group
Optional Accessories	Interface Gate:Applied when flaw detector in a environment which has medium, e.g water
	Printer:TP serial printer , 3 data report: screen shot , wave , thickness value
	Huge capacity battery:Continuous working time: over 20 hours
	Communication : USB

Digital portable ultrasonic flaw detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
High cost effective makes X Series be the best choice for developing companies.
