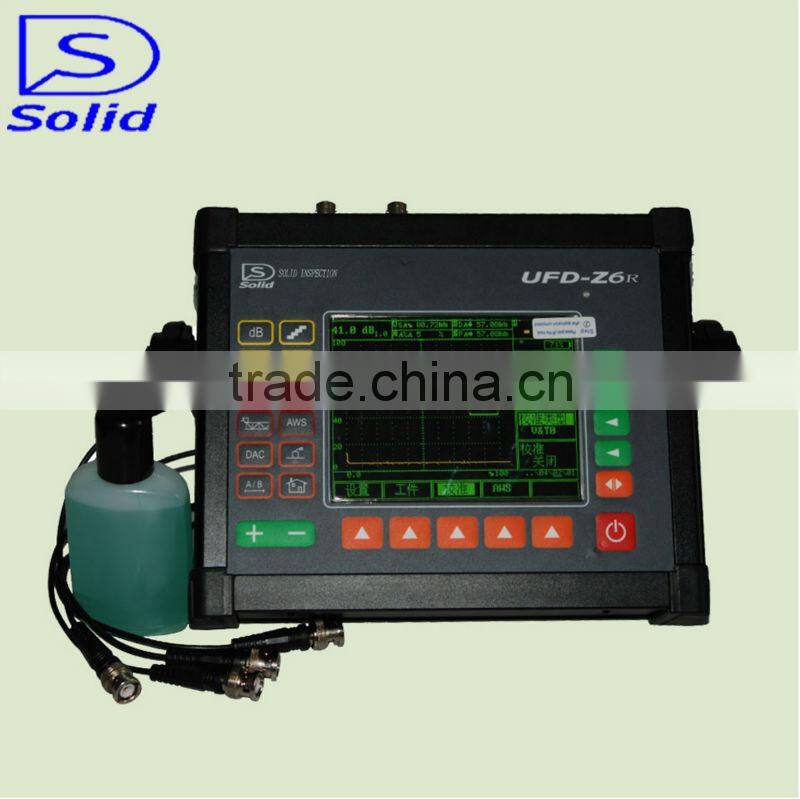

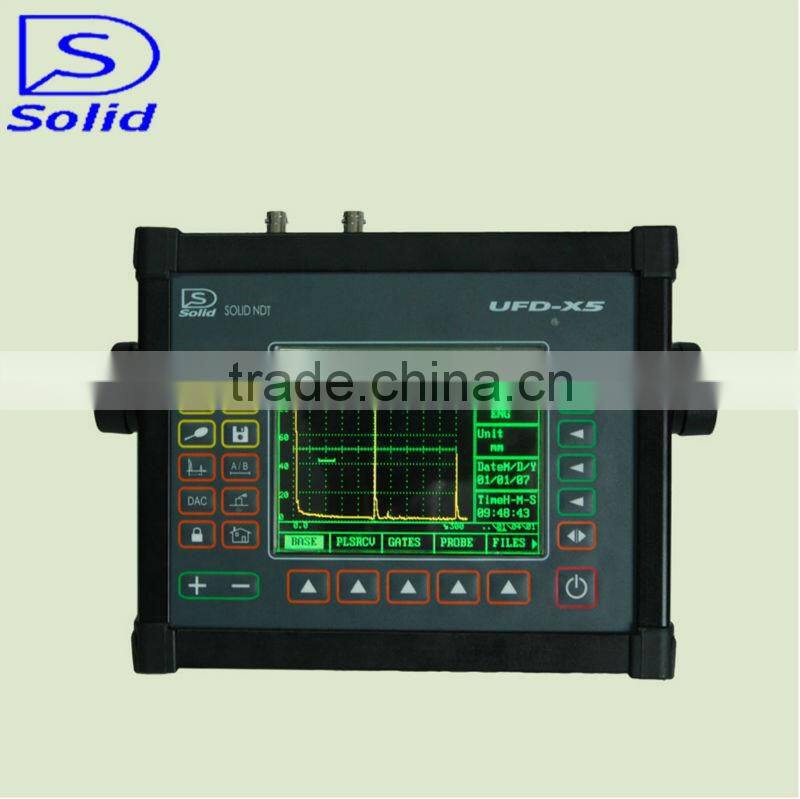

UFD X5
UFD X Series Ultrasonic Flaw Detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
High cost effective makes X Series be the best choice for developing companies.

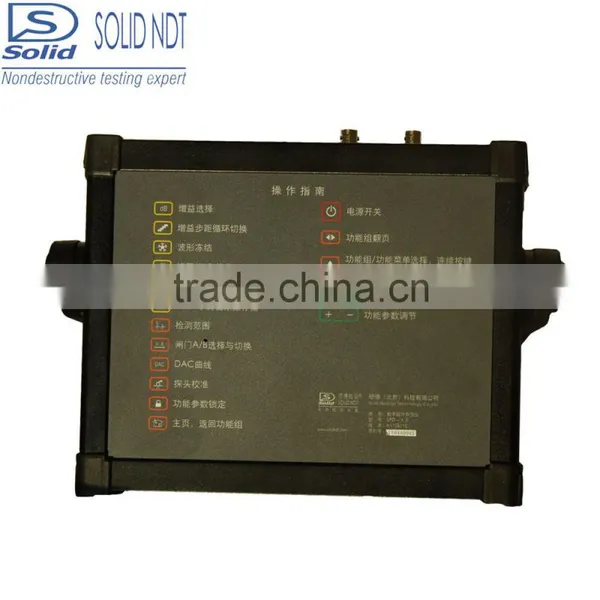

OPERATION:
One Function Key, Easily Operation
Ideal Menu Style
Auto Calibration : Velocity, Probe Delay, Angle/ K Value
FUNCTION
USB for Storage ,Plug and Play
Connection USB is allowed, convenient to read thickness values
B Scan-Display Flaw Directly
Reducing analysis difficulty, missing detector and misjudgments
Massive Data Memory
2000 files / 200,000 thickness values/ 5 min video
Economic Choice: Flaw Detector and High Accurate Thickness Measured
5 intelligent DAC curves, comply to JIS and API standard.
DGS curve: Flat bottomed, Flat-bottomed Hhole, Through Holes as references
PERFOMANCE
High accuracy: 10 places for AD sample
Extra-long Standby Time:
20 hours, getting rid of trouble from battery
Display screen could be adjusted to provide 5 optimum
Magnalium alloy coated, AP65 encapsulation, strong and durable, avoiding electro-magnetic interference.
Specification
Measuring Range |
1.0-1,200mm |
|||
Measuring Resolution |
0.01mm(< 100mm)/ 1mm(>100mm) |
|||
Velocity |
500~20,000m/s( 20 fixed velocities) |
|||
Delay |
Display Delay: -20~3400us resolution: 0.1us |
|||
Probe Delay : 0~99us resolution: 0.01us | |||||||
Auto Calibration |
Velocity Calibration& Probe Delay Calibration |
||||||
Linear Error |
Horizontal linearity error≤0.1% Vertical linearity error ≤3% |
||||||
Dynamic Range |
≥36dB |
||||||
Sensitivity Leavings |
≥64dB 200mm 2 flat-bottomed hole |
||||||
Dimension (mm) |
240*180*50 |
||||||
Weight |
1.9Kg(including battery pack) |
||||||
Working Environment |
Temperature:-20°C~70°C, Humidity:5%~90%, |
||||||
Pulse |
150V Negative Pulse |
Damping :50/150/400Ω |
|||||
Pulse repetition frequency PRF could be adjusted | |||||||
Receiver |
Measuring mode:Peak /Verge |
Bandwidth:0.3~1 / 0.5~4 /2~15MHz |
|||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | |||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | |||||||
Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 | |||||||
Display |
LCD |
TFT Color. Display,5 options for variable brightness. |
|||||
GUI Theme |
Simple/Classical/Gray/Bright Light/ Dark Light |
||||||
Screen Update Rate |
≥60 Hz |
||||||
Gate/Measuring/ Alarm |
Gate |
Two Separated Gates A/B |
|||||
Value Display |
5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB |
||||||
Alarm |
Thickness Value Threshold Alarm ,Separated Gate Alarm Logically |
||||||
Memory |
Channelparameters: 20 groups |
A Scan: 2000 groups |
|||||
Thickness Logging: 200,000 data sets ,liner |
Wave Video: 5 min |
Reference Wave:4 |
|||||
Input/Output |

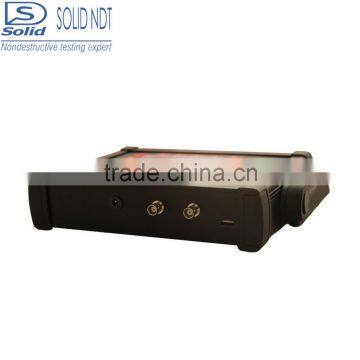

Probe Cable: LEMO/BNC |
Communication :RS232 |
|||||
Area |
Language: Chinese /English |
Unit: mm/inch |
Clock: Date and Time |
||||
Power Source |
Battery:High power lithium battery ,capable of preventing over-charge and over-discharge |
||||||
Power Indicator:Proportional battery gauge indicating remaining operation time | |||||||
Working Time:Continuous working over 10 hours | |||||||
Power adapter:Input 100~240V/50~60Hz output 9VDC/4A | |||||||
High Grade |
USB for Storage |
3 kinds of data report, screenshot , wave, thickness value |
|||||
Gate: |
Analysis the details of the wide gate area |
||||||
B Scan: |
Thickness/ Shape scan Gray/Color board Design |
||||||
Freezing Curve |
Yes |
||||||
Feature Indicator |
Measuring of the sound distance wave front & amplitude |
||||||
CSC Curve Calibration |
Value correction according to probe angle, pieces thickness and curvature diameter |
||||||
Lock |
Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete |
||||||
Screen saver |
Standby/Character/Power Off |
||||||
Equivalent Curve |
DAC curve |
Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard |
|||||
DGS Curve |
DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; |
||||||
Standard Package |
Main Body 1 |
Straight probe 1 |
Angle probe 1 |
Manuel 1 |
Carrying Case 1 |
Probe Cable 1 |
|
Coupling Paste 1 |
Power Adaptor 1 |
Battery 1 group |
|
Optional Accessories |
Interface Gate:Applied when flaw detector in a environment which has medium, e.g water |
||
Printer:TP serial printer , 3 data report: screen shot , wave , thickness value | |||
Huge capacity battery:Continuous working time: over 20 hours | |||
Communication : USB | |||
