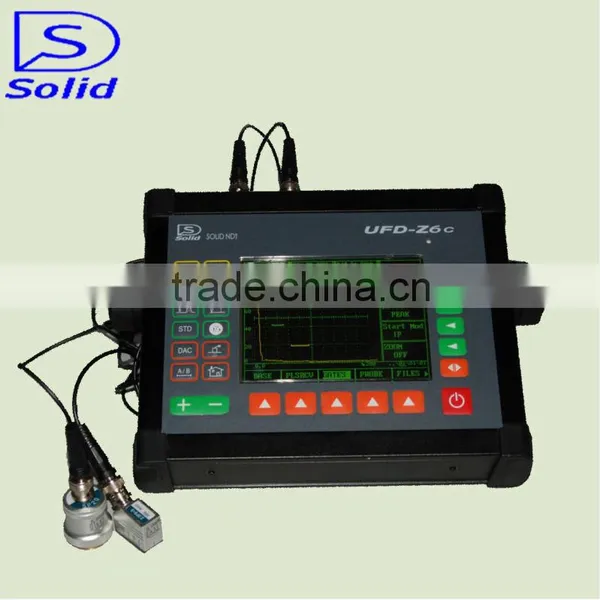

Solid UFD-Z6 Portable Ultrasonic Flaw Detector

Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-1
Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-2
Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-3
Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-4
Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-5
Solid UFD-Z6 Portable Ultrasonic Flaw Detector thumbnail-6
Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-1

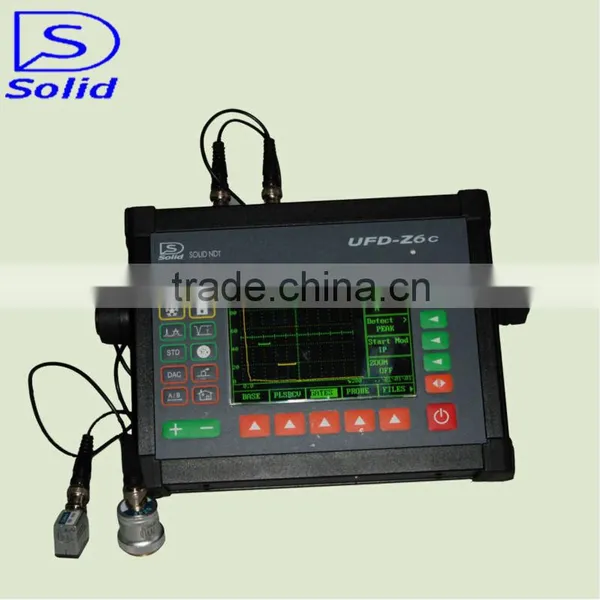

Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-2
Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-3

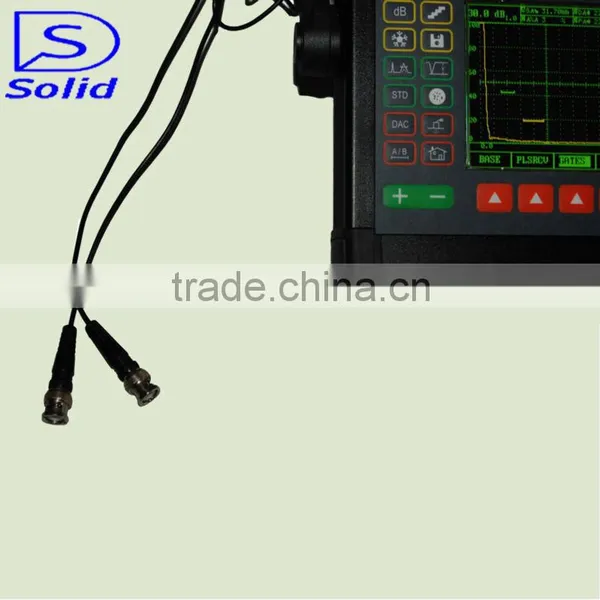

Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-4
Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-5

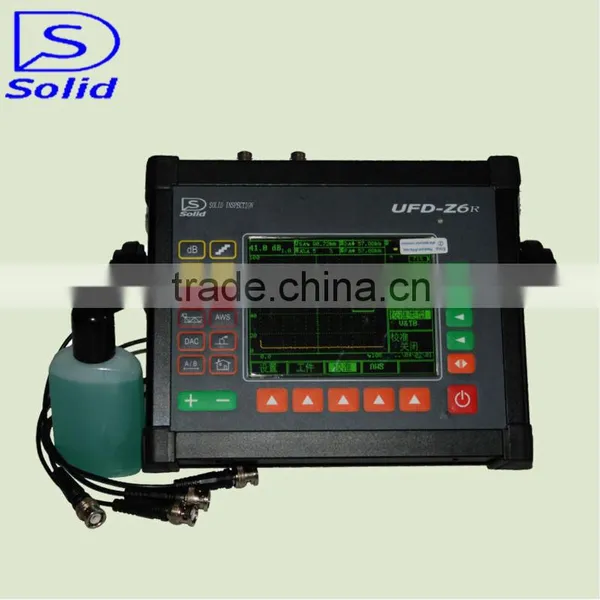

Solid UFD-Z6 Portable Ultrasonic Flaw Detector photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
solid
Model Number:
UFD-Z6
Contact Supplier Request Quote Chat Now
Solid (Beijing) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name solid
Model Number UFD-Z6

Specifications

Portable Ultrasonic Flaw Detector
USB for Storage ,Plug and Play
B Scan-Display Flaw Directly
DGS curve

Portable Ultrasonic Flaw Detector

The specification of Ultrasonic Flaw Detector UFD-Z6

Solid UFD-Z6 Portable Ultrasonic Flaw Detector

 UFD- Z6 Specification

Measuring Range

1.0-1,500mm

Measuring Resolution

0.01mm(< 100mm)/ 1mm(>100mm)

Velocity

500~20,000m/s( 20 fixed velocities)

Delay

Display Delay: -20~3400us resolution: 0.1us

Probe Delay : 0~99us resolution: 0.01us

Auto Calibration

Velocity Calibration& Probe Delay Calibration

Linear Error

Horizontal linearity error≤0.1%   Vertical linearity error ≤3%

Dynamic Range

≥36dB

Sensitivity Leavings

≥64dB 200mm2 flat-bottomed hole

Dimension (mm)

240×180×50

Weight

1.9Kg(including battery pack)

Working Environment

Temperature:-20°C~70°C, Humidity:5%~90%,

Pulser

150V Negative Pulse

Damping :50/150/400Ω

Negative Pulse/Square Wave

Pluser Width:50-2000ns

Pulse repetition frequency PRF could be adjusted

Receiver

Measuring mode:Peak /Verge

Bandwidth:0.3~1/ 0.5~4/2~15MHz Narrowband:1/2.5/5/10/15MHz

Detector Pattern: RF/Full-Wave/Positive /Negative half- wave

Testing Mode: pulse-Echo/Pulser-Receiver/transmission

Gain :0 to 110dB Customers define steps 0/0.1/0.2/0.5/1/2/6/12

Display

LCD

TFT Color. Display,5 options for variable brightness.

GUI Theme

Simple/Classical/Gray/Bright Light/ Dark Light

Screen Update Rate

≥60 Hz

Gate/Measuring/ Alarm

Gate

Two Separated Gates A/B

Value Display

5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB

Alarm

Thickness Value Threshold Alarm ,Separated Gate Alarm Logically

Memory

Channelparameters: 20 groups

A Scan: 2000 groups

Thickness Logging: 320,000 data sets ,liner

Wave Video: 10 min

Reference Wave:4

Input/Output

Probe Cable: LEMO/BNC

Communication :RS232

Area

Language: Chinese /English

Unit: mm/inch

Clock: Date and Time

Power Source

Battery:High power lithium battery ,capable of preventing over-charge and over-discharge

Power Indicator:Proportional battery gauge indicating remaining operation time

Working Time:Continuous working over 10 hours

Power adapter:Input 100~240V/50~60Hz output 9VDC/4A

High Grade

USB for Storage

3 kinds of data report, screenshot , wave, thickness value

Dynamic Echo

Digital Nature,Simulation Performance

Gate:

Analysis the details of the wide gate area

B Scan:

Thickness/ Shape scan Gray/Color board Design

Echo Coding

Coordinate/Waveform, calculate span.

Freezing Curve

All/Peak/Contrast/Envelope/Delay

Feature Indicator

Measuring of the sound distance wave front & amplitude

CSC Curve Calibration

Value correction according to probe angle, pieces thickness and curvature diameter

Lock

Single menu independently lock to avoid system adjust related data;

Data group could lock to avoid wrong delete

Screen saver

Standby/Character/Power Off

Equivalent Curve

DAC curve

Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard

DGS Curve

DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage;

Standard Package

Main Body     1

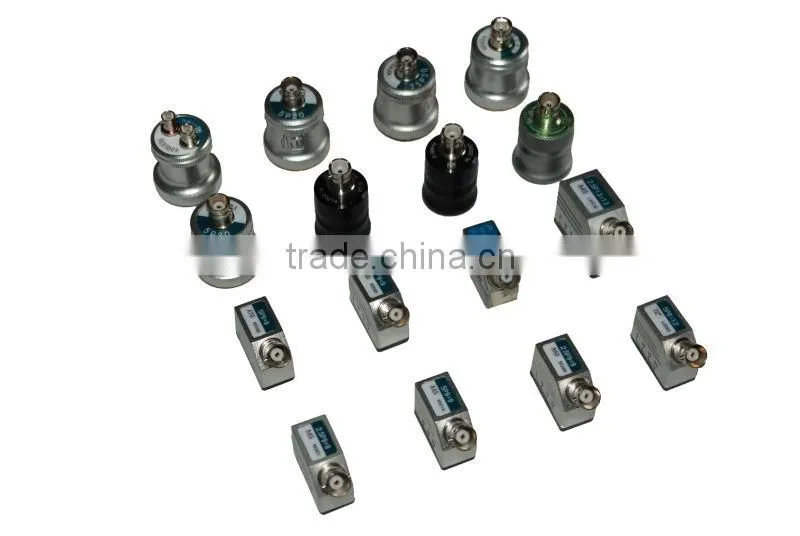

Straight   probe          1

Angle probe     1

Manuel       1

Carrying Case            1

Probe Cable     1

Coupling Paste   1

Power Adaptor            1

Battery            1 group

Optional Accessories

Interface Gate:Applied when flaw detector in a environment which has medium, e.g water

Printer:TP serial printer , 3 data report: screen shot , wave , thickness value

Communication : USB
