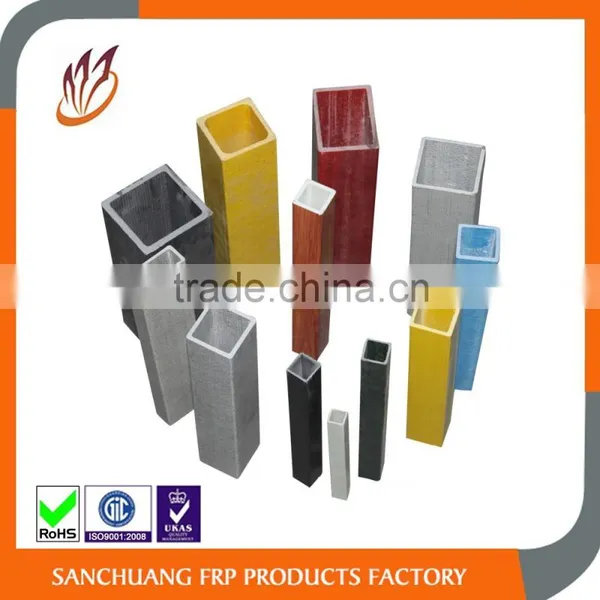

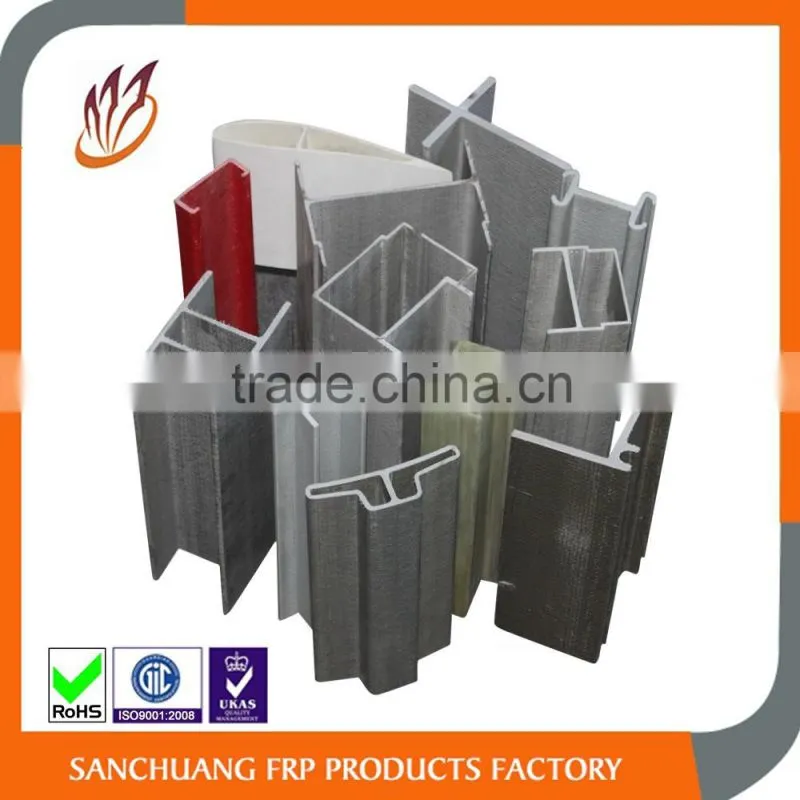

FRP Pultruded Profiles For Construction Structure
1.Introduction
Fibergalss composite profile with a surface veil and inhibitor , all the pultruded profile can protect glass fibers from pentrating the resin and can also increase the corrosion and UV resistance . These profile are non-magnetic and have good electrical and thermal insulation properties. Our FRP profile are stronger than Aluminum in the lengthwise direction of the profile . These profile can be easily fabricated with carpentry or metal working tools , fasten with screws , bolts and rivets or jointed we adhesies.
2.Physical Parameters of FRP Products
Mechanical performance
Tensile Strength: LW260-600MPa CW45-80 MPa; Test Method: ASTM D-638.
Tensile Modulus:LW18-30Gpa CW7-13Gpa; Test Method: ASTM D-638.
Flexural Strength:LW300-700Mpa,CW80-120Mpa, Test Method:ASTM D-790.
Flexural Modulus:LW20-26GPa,CW7-12GPa, Test Method:ASTM D-790.
Compressive modulus:LW280 Mpa CW105Mpa,Test Method:ASTM D-695.
Interlayer Shear Strength:LW 25 Mpa, Test Method:ASTM D-2344.
Impact Strength: 280 KJ/M2,Test Method:ASTM D-256.
Physical Property
Barcol Hardness: 50 Test method:ASTM D-495
Water absorption(25°c,24h):0.2-0.5%,Test method ASTM D-570.
Density:1.75-2.00 g/cm3, Test method ASTM D-570.
Coefficient of thermal expansion(LW) 5.0 10-6/ °c , Test method ASTM D-696.
Coefficient of thermal conductivity 0.4 W/(M.K) ,Test method ASTM C-518.
Elongation to break 0.9%, Test Method ASTM D-638.
Electrical property
Arc resistance (LW) 120 seconds,Test method ASTM D-495.
Dielectric constant (PF)5@60hz, Test method ASTM D-150.
Dielectric strength (PF) 8KV/mm Test method ASTM D-149.
Surface resistance:1015-1012 Test method ASTM D-257.
Volume restistance:1015-1012 Test method ASTM D-257.
Flammability property
Tunnel test :Max25 25-28 second, Test method ASTM E-4.
Oxygen data 28-32 >32 % Test method ASTM 2863.
Flammability classification Self extinguish , Test method:ASTM D635.
Notes:LW-lengthwise , CW-crosswise. PE=perpendicular to laminate face.
3.Typical Characteristics
1)High Strength
2)Excellent Heat Resistance
3)Low Water Absorption
4)Low Thermal Insulation Coefficient
5)Anti-corrosion
6)Anti-aging
7)Insulation
8)Security
Features:
High strength yet light weight: |
Helps save on transportation |
Corrosion resistant: |
Won’t rot, rust or corrode |
Fire-retardant and nonconductive: |
Helps create a safer environment |
Dimensionally stable: |
Won’t shrink, swell, warp or bow |
Virtually maintenance-free: |
Durable and weather-resistant for a longer life cycle |
Easy to fabricate and install: |
Can be cut, drilled and assembled with standard tools |
Non-leaching: |
Does not require environmentally hazardous preservatives |
Testing results for physical properties:
(No.) |
Testing items |
Unit |
Testing results |
Testing standard |
1 |
Density |
g/cm3 |
1.85-1.9 |
ASTM D792 |
2 |
Water absorption |
% |
0.57 |
ASTM D570 |
3 |
Flexural strength |
MPa |
302 |
ASTM D790 |
4 |
Flexural modulus |
GPa |
18.6 |
ASTM D790 |
5 |
Tensile strength |
MPa |
210 |
ASTM D638 |
6 |
Tensile modulus |
GPa |
22 |
ASTM D638 |
7 |
Flame retardant rating |
|
V0/V1 |
UL94 |
8 |
Dielectric breakdown voltage |
KV |
14.98 |
ASTM D149-09 |
Notes: The above testing results are based on ordinary materials, if any special requirements, feel free to contact with us.
4.Application and Exporting
Sanchuang FRP Products are widely use widelyin construction,electricity,transportation,light industry, petrochemical engineering, mechatronik, sports, agriculture, and so on. So far, our products have been exported to Europe,North America,North Africa, East Asia,Southeast Aisa, and Oceania,.etc.
Cartons,films or woven belts are for your choice,while international express,by sea or air are available.If having sepcial request,pls tell us in advance!
Sanchuang FRP Products Factory has been a research and development, production and sales of composite technology enterprises since 2005.
Our Tenets:
Creating Excellence, Innovation, Honesty
The Main Products Include:
Fiberglass and carbon fiber pultrusion profiles
SMC/BMC/DMC molding products
RTM products
Winding molding tubes
High-quality hand lay-up products
So far,our company provide products and services for the United States, Canada, Germany, United Kingdom, France, Italy, Spain, Denmark, Netherlands, Sweden, Hungary, Bulgaria, Mexico, Australia, Japan, South Korea, Vietnam, Philippines, Egypt etc. more than 35 countries and over 120 customers .
Q: Are you Trading Company or Manufacturing Factory?
A: We are the leading manufacturer in Guangdong area for 10 years, our products have competitive price and quality guarantee. Welcome to send your inquiry!
Q: I am interested in your products, could I get sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: How about the delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Of course, we can also meet the urgent delivery time if the production schedule is not tight. Welcome to ask for the detailed delivery time according to your order quantity!
Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it’s been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Q.What certifictes do you have?
A:Yes,ISO,SGS and ROHS are available now.Others also can be made as you request.
Q.Is the third party quality test acceptable?
A:Sure,it will be our great honor.They are always welcome.
Q.What's the life time of the FRP profiles?
A:Normally,it is about 15 years.
Q.How to make them with UV resistant?
A:Adding some UV resistant material.Sometimes,if it is in high demands,we will consider UV painting
Q: I'd like to know your payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are acceptable for sample order.
For more questions,product catalog,price and samples,click here now,we are always ready for you.
