Specifications
fiberglass tool handle1.Not rot or fray,high Strength.
2.Never-rusting.
3.UV protection.
4.Anti-aging.
Pultrusion Durable Fiberglass Tool Handle
Fiberglass pole, fiberglass rod ,fiberglass tube , fiberglass profiles, FRP pole,FRP rod, FRP tube.

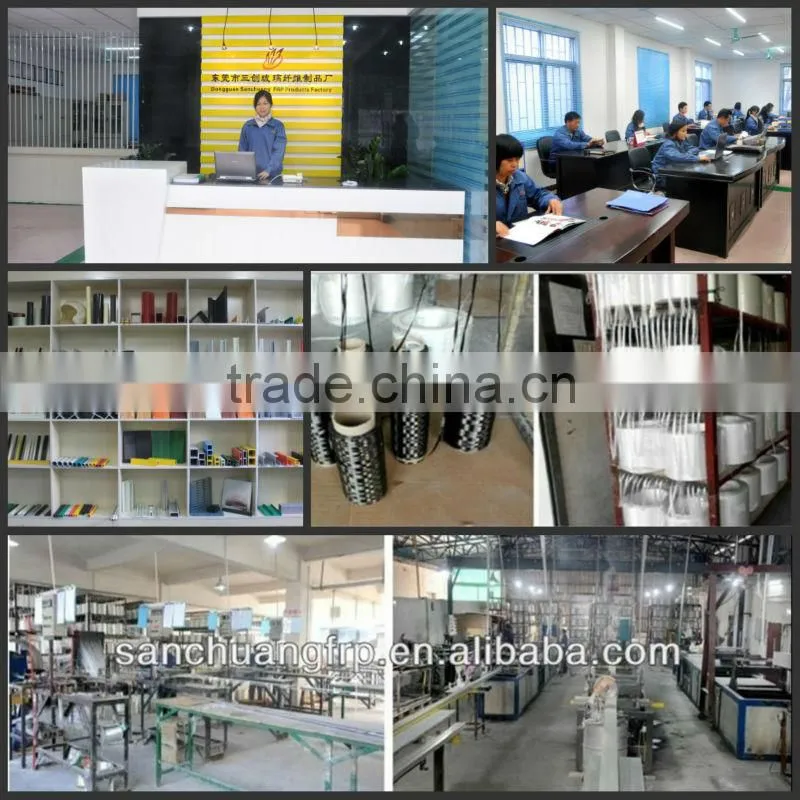

1.Brief introduction of Sanchuang Factory
Dongguan Sanchuang FRP Products Factory is a research and development , production and sale of composite technology enterprises . The main products include the fiberglass and carbon fiber pultrusion profile , SMC/BMC/DMC molding products, RTM products, winding molding pipe and high-quality hand lay-up products,widely used in construction,electricity, communication,transportation, light industry, petrochemical engineering , ocean industry,mechatronik, sport and relaxation,agriculture and so on.
2.Physical Parameters of FRP Products
Mechanical performance
Tensile Strength: LW260-600MPa CW45-80 MPa; Test Method: ASTM D-638.
Tensile Modulus:LW18-30Gpa CW7-13Gpa; Test Method: ASTM D-638.
Flexural Strength:LW300-700Mpa,CW80-120Mpa, Test Method:ASTM D-790.
Flexural Modulus:LW20-26GPa,CW7-12GPa, Test Method:ASTM D-790.
Compressive modulus:LW280 Mpa CW105Mpa,Test Method:ASTM D-695.
Interlayer Shear Strength:LW 25 Mpa, Test Method:ASTM D-2344.
Impact Strength: 280 KJ/M2,Test Method:ASTM D-256.
Physical Property
Barcol Hardness: 50 Test method:ASTM D-495
Water absorption(25°c,24h):0.2-0.5%,Test method ASTM D-570.
Density:1.75-2.00 g/cm3, Test method ASTM D-570.
Coefficient of thermal expansion(LW) 5.0 10-6/ °c , Test method ASTM D-696.
Coefficient of thermal conductivity 0.4 W/(M.K) ,Test method ASTM C-518.
Elongation to break 0.9%, Test Method ASTM D-638.
Electrical property
Arc resistance (LW) 120 seconds,Test method ASTM D-495.
Dielectric constant (PF)5@60hz, Test method ASTM D-150.
Dielectric strength (PF) 8KV/mm Test method ASTM D-149.
Surface resistance:1015-1012 Test method ASTM D-257.
Volume restistance:1015-1012 Test method ASTM D-257.
Flammability property
Tunnel test :Max25 25-28 second, Test method ASTM E-4.
Oxygen data 28-32 >32 % Test method ASTM 2863.
Flammability classification Self extinguish , Test method:ASTM D635.
Notes:LW-lengthwise , CW-crosswise. PE=perpendicular to laminate face.
3.Fibergals composite profile Feature:
Fibergalss composite profile with a surface veil and inhibitor , all the pultruded profile can protect glass fibers from pentrating the resin and can also increase the corrosion and UV resistance . These profile are non-magnetic and have good electrical and thermal insulation properties. Our FRP profile are stronger than Aluminum in the lengthwise direction of the profile . These profile can be easily fabricated with carpentry or metal working tools , fasten with screws , bolts and rivets or jointed we adhesies.
4.Sanchuang ISO Certificate:
Any more detail , please feel free to contact with Nina.
