Specifications
1 Painting thickness gauge2 High accuracy (1%+1)
3 Large Memory
4 Memory key could connect with gauge directly
coating thickness gauge magnetic induction eddy

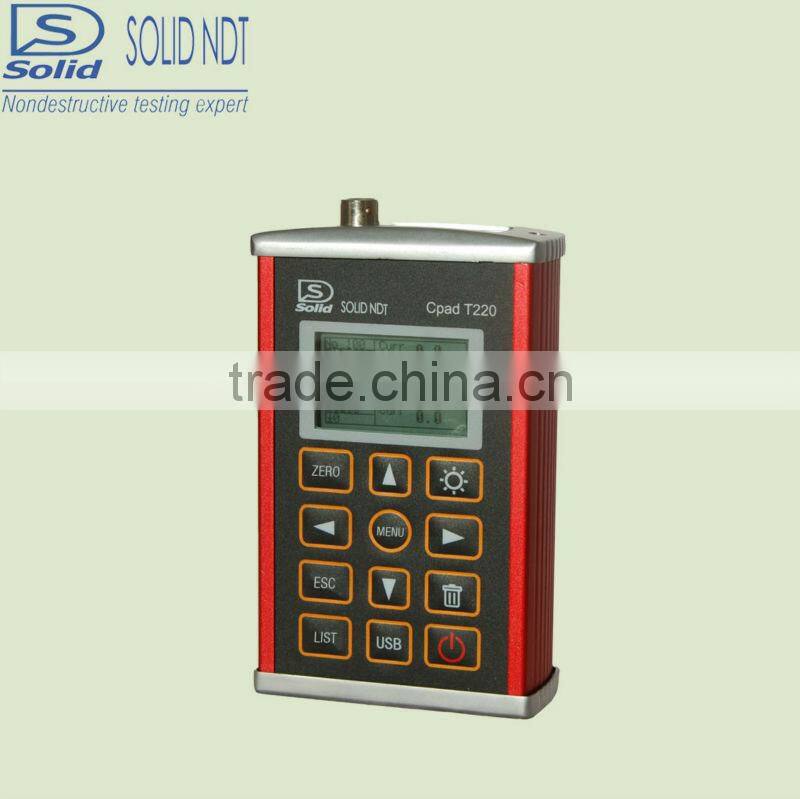

Solid Portable Coating Thickness Gauge CpadT Series
Measuring Range | F400:0~400μm N400:0~400μm F1:0~1250μm F1/90:0~1250μm N1:0~1250μm F10:0~10000μm CN02:10~200μm |
Accuracy | F400,N400 One point calibration:±(2%+0.7) Two point calibration:±(1%+0.7) F1,F1/90,N1,CN02 One point calibration:±(2%+1) Two point calibration:±(1%+1) F10 One point calibration:±(2%+10) Two point calibration:±(1%+10) |
Calibration Method | One point calibration / Two point calibration /Basic Calibration |
Resolution | 0.1μm(0~99.9μm) 1μm (over 100μm) |
Weight | 300g |
Operation Mode | Direct testing& Group Testing |
Measuring Mode | Continuous/Single |
Power Off | Manual/Auto |
Data Analysis | Histogram |
Statistic Function | MEAN/S.DEV/ No./ MAX/ MIN |
Memory | Thickness Values 500 data |
Delete | Single doubtful data/Group Data |
Input /Output | Communication USB Electronic Power Battery |
Power indication | Low voltage indication |
Operation Indication | Music ring for error Signal Processing Auto alarm for values out of limit |
Working Environment | Temperature:0°C~50°C Humidity:20%~90% |

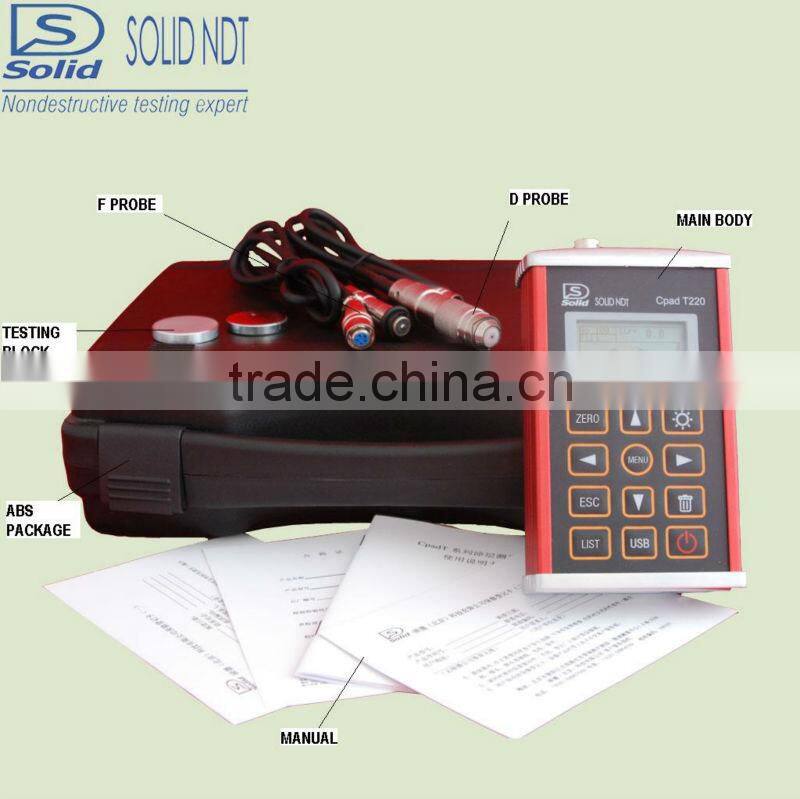

Standard Package | Main Body 1 Probe(N1/F1) 1 Calibration foil set 5 Base 1 Manual 1 |
Optional Accesories | Probe F400/ N400/ F10/ CN02/ F1/90 |
Portable Coating Thickness Gauge is designed for measuring the thickness of coating.
The feature for this meter is fast, nondestructive and accurate.
Cpad Coating Thickness Gauge is applied in many areas, such as electroplating industry, corrosion protection, aerospace industry, chemical industry, automotive car industry, shipbuilding industry, light industry and inspection, etc
Cpad could meet your different demands by changing different probes. There two measuring methods could be chosen, magnetic permeability method and eddy current method.
F probe fits to magnetic permeability method, it could measure the thickness of magnetic metal base (such as steel, iron, alloy and hard magnetic steel ,etc) covered with non-magnetic coating
(such as zinc ,aluminum ,chromium ,cooper ,rubber ,painting ,etc)
N probe is used when eddy current method is chosen. It could measure the thickness of non-magnetic metal base(such as cooper ,aluminum ,zinc ,tin ,etc) and austenite stainless steel covered with non-conducting coating
(such as rubber, painting, plastic , anode oxide film,etc)
Probe Mode | F400 | F1 | F1/90° | F10 | N400 | N1 | CN02 | ||||
Working Principle | Magnetic Permeability Method | Eddy Current Method | |||||||||
Measuring Range(mm) | 0~400 | 0~1250 | 0~10000 | 0~400 | 0~1250 | 10~200 | |||||
( Copper covered with chormium 0~40) | |||||||||||
Resolution(mm) | 0.1 | 0.1 | 10 | 0.1 | 0.1 | 1 | |||||
Tolerance | One point calibration(mm) | ±(3%H+0.7) | ±(3%H+1) | ±(3%H+10) | ±(3%H+0.7) | ±(3%H+1.5) | ±(3%H+1) | ||||
Two point calibration (mm) | ±(1%H+0.7) | ±((1%H+1) | ±(1%H+10) | ±(1%H+0.7) | ±(1%H+1.5) | -------- | |||||
Measuring Condition | Min Curvature radius(mm) | convex | 1 | 1.5 | flat | 10 | convex | 1.5 | 3 | flat | Only for flat |
Min Measured Area(mm) | F3 | F7 | F7 | F4 | F4 | F5 | F5 | F7 | |||
Base critical thickness (mm) | 0.2 | 0.5 | 0.5 | 2 | 0.3 | 0.3 | 0.3 | No Limits | |||
