Solid Cpad T200 manufactory digital car paint thickness gauge
1paint thickness gauge
2High accuracy (1%+1)
3Large Memory
4Memory key could connect with gauge directly
Feature

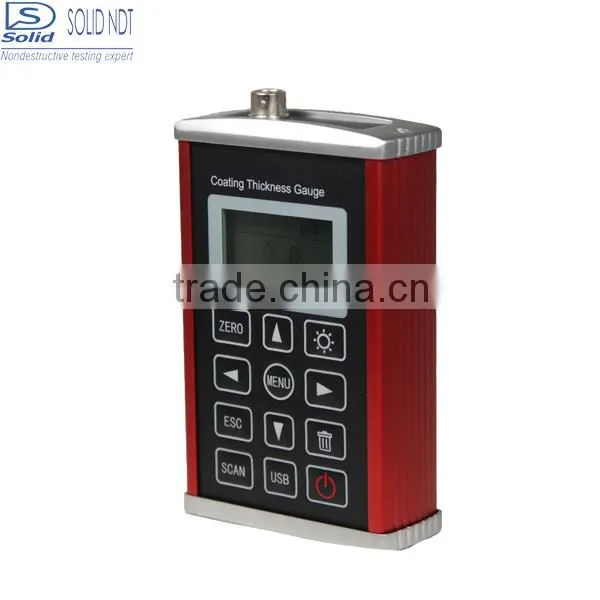

Solid Cpad T200 Portable coating thickness gauge is designed for measuring the thickness of coating. which is applied to test pianting thickness of the car . The feature for this meter is fast , non-destructive and accurate. Cpad Coating Thickness Gauge is applied in many areas, such as electroplating industry, corrosion protection, aerospace industry, automotive car industry, ship building industry , light industry and inspection, etc.
Our Services
1) All of the items have 1 year warranty(we could change a new one for if there has quality problems,but buyer need to pay for the freight.
2)We could prepare the products at once for customers' immediately purchase.
3)We offer technic support and lifelong after-sale services.
Delivery Time:
1) After you make the order,we'll contact you and prepare the itme as fast as possible.
2) Finish preparing the model,we ship it for you by DHL/UPS/FedEx/TNT/EMS and give you the tracking number(The process takes about half one day or one day).
3) The shipping time is about 3~5 days by DHL/UPS/FedEx/TNT,10 days by EMS
4) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated
Specification
Principle |
Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | ||||
| Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | ||||
| Velocity | 1000~9999m/s | Weight | 250g | ||||
| Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | ||||
| Auto Probe Zeroing Calibration | Pulse | 150V Negative Pulse | |||||
| Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | |||
| Coupling Indicator | Bandwidth | 0.5-15MHz | |||||
| Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | |||
| Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | |||||
| DISLAY | LCD | High-Contract 128*64 | File: | Max, Min AVG, mean square error | |||
| Beautiful printed characters,Number, Symbol, High Brightness EL Backlight | Alarm | Threshold Acoustooptical Alarm | |||||
| Thickness Logging | 1000 data sets/group ,liner | Memory | Files | 1000 groups | |||
| Update | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | ||||
| Rate | |||||||
| Scan Mode: 25times/s | Standard Package | ||||||
| Input/Output | Probe Cable | LEMO 00 (C5) x2 | Main Body | 1 | |||
| Communication | USB | Probe | 1 | ||||
| Language | Chinese /English | Manuel | 1 | ||||
| Unit | mm/inch | Carrying Case | 1 | ||||
| Power supply | Battery | 1.5V AAA x4 | Coupling paste | 1 | |||
| Working Time | 200 hours | Battery | 1 | ||||
Company information
Pls take a Note:
A) The product will be carefully packed by cotton boxes before it's sent out.
B) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated.
C) Pls do not leave not good feedback before contacting us.We're always make the perfect services for our customers all the time.Making promise is the key point in business.
D) The product will be carefully TESTED,then packed by cotton box before it's sent to customer.
Contact details:
Sophie zhang
Email: sophie(at) Skype:sophie_zhang1226
Mobilephone/Whatsapp:008615210116536
Telephone:86-010-84945825 Fax:010-64867049#813
Website: /en/
Address:Room902,Unit4,Tianxiyuan,ChaoyangDist.,Beijing, China (Mainland)
If you have any questions,pls feel free to e-mail us or call us directly.If nobody answers,pls do not worry.Leave us the message,we'll contact you as fast as possible.Thanks a lot.
Any problems,pls send me feedback or call me for details.We welcome your inquiry.Many thanks.
