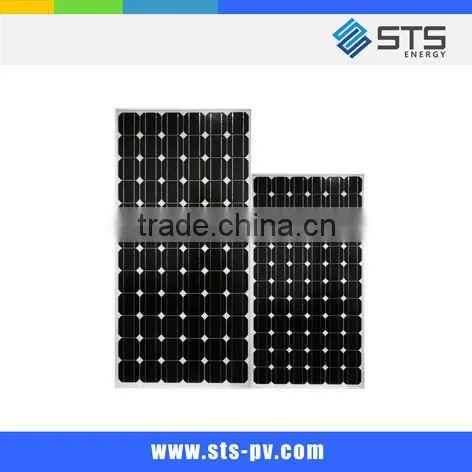

Best Solar Panel 230W Chinese Solar Module

Name: Best Solar Panel 230W Chinese Solar Module
Brand: STS Energy
SKU: 103561071
Availability: InStock

US$ 0.53 - 0.64 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

STS Energy

Model Number:

STS-6M-230P-60

Zhejiang Jingshang New Energy Technology Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name STS Energy

Model Number STS-6M-230P-60

Material Polycrystalline Silicon

Size 1650x990x40mm

Number of Cells 60pcs

Max. Power 230Wp

Product Description

best solar panel 230W chinese solar module

Efficiency 230W solar panel

1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.

2. High efficient, high reliable solar cells ensure our product output stability.

Benefits

1. Manufactured in an ISO9001:2008 certified plant

2. High efficiency, high safety, high reliability

3. Output power tolerance of +/-3%

Warranty

1. 5-years limited warranty on materials and workmanship

2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%

Electrical Characteristics

TYPE	STS-6M-225P-60	STS-6M-230P-60	STS-6M-235P-60	STS-6M-240P-60
Rated Maximum Power at STC (W)	225	230	235	240
Open Circuit Voltage (Voc/V)	37.00	37.17	37.34	37.51
Maximum Power Voltage (Vmp/V)	29.12	29.32	29.52	29.72
Short Circuit Current (Isc/A)	8.23	8.31	8.40	8.48
Maximum Power Current (Imp/A)	7.73	7.84	7.96	8.08
Power Tolerance	±3%
α lsc	+0.040%/°C
βvoc	-0.304%/°C
γ Pmp	-0.420%/°C
STC(Standard Test Conditions)	AM1.5,1000W/m2 ,25°C
