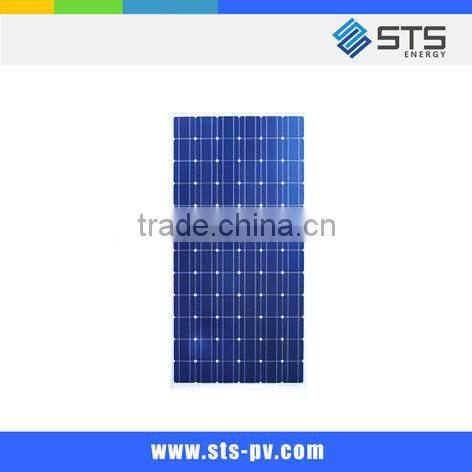

High efficiency 40W solar panel
Efficiency 40W solar panel
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.
2. High efficient, high reliable solar cells ensure our product output stability.
Benefits of solar panel
1. Manufactured in an ISO9001:2008 certified plant
2. High efficiency, high safety, high reliability
3. Output power tolerance of +/-3%
Warranty
1. 5-years limited warranty on materials and workmanship
2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%
Specifications of solar panel
Model Type |
STS-6M-40P-36 |
Peak power |
40W |
Cell type |
Poly Crystalline Silicon,156×156mm |
Number of cells |
36 cells in series |
Weight |
3.4kg |
Dimensions |
790*345*25mm |
Maximum power voltage(Vmp) |
17.31V |
Maximum power current(Imp) |
2.32A |
Open circuit voltage(Voc) |
21.58V |
Short circuit current(Isc) |
2.63A |
Maximum system voltage |
DC 1000V |
Temp.Coeff.of Isc(TK Isc) |
+0.04%/°C |
Temp.Coeff.of Voc(TK Voc) |
-0.30%/°C |
Temp.Coeff.of Pmax(TK Pmax) |
-0.44%/°C |
Normal Operating Cell Temperature |
45±2°c |
Carton box, loaded on pallet or wooden case
