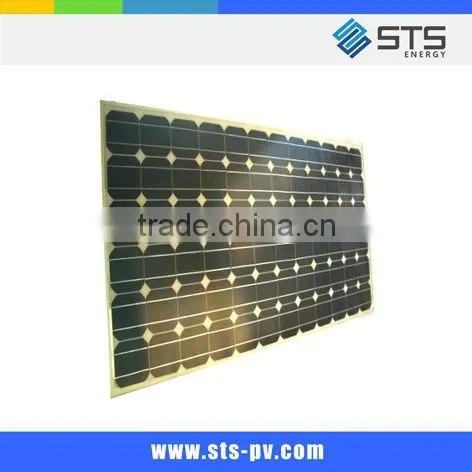

High quality 80W pv modules with hot sale
Efficiency 80W pv modules
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.
2. High efficient, high reliable solar cells ensure our product output stability.
Benefits of solar modules
1. Manufactured in an ISO9001:2008 certified plant
2. High efficiency, high safety, high reliability
3. Output power tolerance of +/-3%
Warranty
1. 5-years limited warranty on materials and workmanship
2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%
Specifications of solar modules
Model Type |
STS-5M-80M-36 |
Peak power |
80W |
Cell type |
Mono Crystalline Silicon,125×125mm |
Number of cells |
36 cells in series |
Weight |
8.5kg |
Dimensions |
1200*540*35mm |
Maximum power voltage(Vmp) |
17.6V |
Maximum power current(Imp) |
4.55A |
Open circuit voltage(Voc) |
22.1V |
Short circuit current(Isc) |
4.9A |
Maximum system voltage |
DC 1000V |
Temp.Coeff.of Isc(TK Isc) |
+0.04%/°C |
Temp.Coeff.of Voc(TK Voc) |
-0.30%/°C |
Temp.Coeff.of Pmax(TK Pmax) |
-0.44%/°C |
Normal Operating Cell Temperature |
45±2°c |
Carton box, loaded on pallet or wooden case
1.Reply your inquiry in 24 working hours
