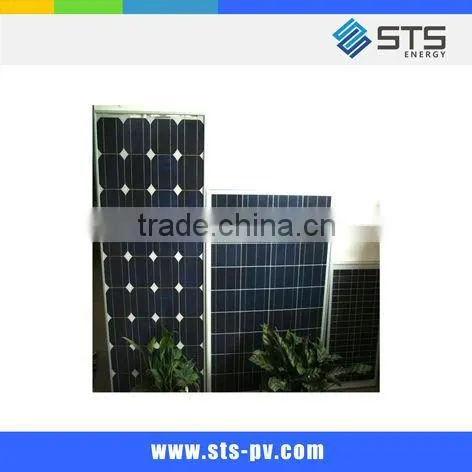

310W mono solar module with low price
1:BAST INFORMATION
STS Solar’s modules are optimally manufactured and adjusted to meet the needs of the current market; scientifically designed module dimension makes the installation simple and easy.
Our continuous efforts in quality assurance system and the international authentication institution certificates
demonstrate our commitment to the product quality.
2:SPECIFICATION
MECHANICAL PARAMETERS WORKING CONDITIONS
Cell(mm) Mono 156x156 Maximum System Voltage DC 1000V
Weight(kg) 19.5 Operating Temp. -40°C~+85°C
Dimensions(LxWxH)(mm) 1950X990X50 Maximum Series Fuse (A) 13
Cable Length(mm) ≥1000 Static loading ≥2400Pa
Cable cross section size(mM) 4 Grounding conductivity ≤0.1Ω
No. of cells and connections 60 (10x6) NOCT 45±2°C
No. of diodes 6 Application Class Class A
Packing configuration 25pcs/carton Insulation Resistance ≥100MΩ
3: DATE
Rated Maximum Power at STC (W) 290WATT
Open Circuit Voltage (Voc/V): 45.41V
Maximum Power Voltage (Vmp/V) 35.31V
Short Circuit Current (Isc/A): 8.72A
Maximum Power Current (Imp/A): 8.78A
4:WARRANTY
5-year limited product warranty
Limited performance warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power out
hard paper box with pallet or as to customer
