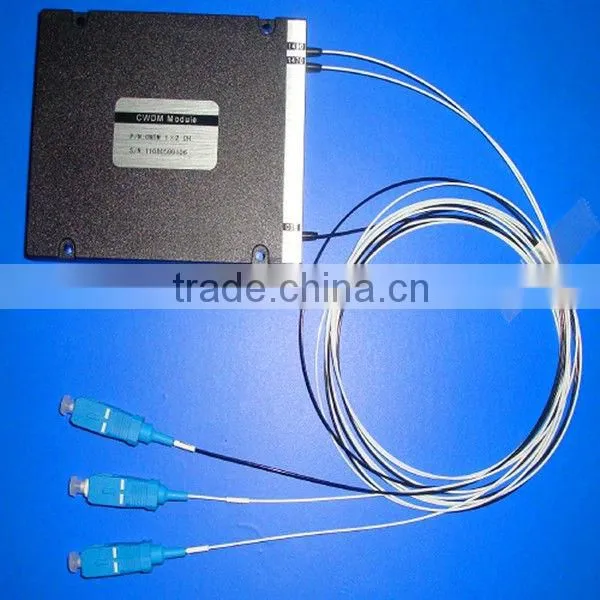

CWDM Mux/Demux Filter

CWDM Mux/Demux Filter thumbnail-1
CWDM Mux/Demux Filter photo-1
US$ 60 - 380 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LINKET
Model Number:
2 channel CWDM with SC/UPC Connector
Contact Supplier Request Quote Chat Now
Changzhou LINKET Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzheng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LINKET
Model Number 2 channel CWDM with SC/UPC Connector
Product Description

1. Why choose LINKET ?

----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, TD Telecom

----- Largest PLC Splitter Manufacturer in China: 10Kpcs/day, 40% market share

----- Most Professional on Key Technology: Wafer Dicing and Coupling

----- Import wafer only from South Korea and Reliable relationship with wafer suppliers

----- Direct Factory Price



 2. Technical Specs for CWDM

Parameter

Unit

Value

Channels Number

-

2

4

8

16

Operation Wavelength

nm

1260-1460 or 1460-1620 or 1260-1620

Channel Central Wavelength

nm

1271/1291/1311/1331/1351/1371/1391/1411/1431/

1451/1471/1491/1511/1531/1551/1571/1591/1611

Channel Spacing

nm

20

Passband at 0.5dB

nm

≥14

Pass band

nm

λITU±6.5

Pass band Flatness

dB

≤0.5

Insertion Loss (Typ.)

dB

0.8

1.3

2.4

4.6

Insertion Loss (Max.)

dB

0.9

1.5

2.8

5.0

Adjacent Channel Isolation

dB

≥30

Non-adjacent Channel Isolation

dB

≥40

Return Loss

dB

≥50

Polarization Mode Dispersion

ps

≤0.10

≤0.10

≤0.15

≤0.15

Polarization Dependent Loss

dB

≤0.10

≤0.15

≤0.20

≤0.25

Insertion Loss Temperature Sensitivity

dB/°C

≤0.005

≤0.005

≤0.007

≤0.007

Wavelength Temperature Shifting

nm/°C

≤0.002

Directivity

dB

≥50

Operation Temperature

°C

-10~+70

Storage Temperature

°C

-40~+85

Package Dimension

mm

ABS box G: 100X80X10, H: 125X96X16

I: 141X115X18, O: customized

Note: 1. All parameters are for device without connectors.

2. Rack-mounted customization is available.

3. Special specifications can be customized according to customer requirements.

3. Different Models

CWDM Mux/Demux Filter



Company Information

1. Our Advantage- Integrated Total Chain, Direct Factory Price



Production/Manufatcurer Level Cut Wafer and Produce Chips Make V-Groove Make Fiber Array Coupling Produce Patch Cords and Install Connector
1st Level (LINKET) √ √ √ √ √
2nd Level   √ √ √ √
3rd Level     √ √ √
4th Level       √ √
5th Level         √
LINKET intergrates the total chain, is the top-level PLC Splitter manufacturer in China. With over 10K/day production capacity, our PLC Splitters occupy over 40% market share in China.

2. CE, TLC, ISO 9001 Certified

CWDM Mux/Demux Filter

3. Workshop Overview

CWDM Mux/Demux Filter
