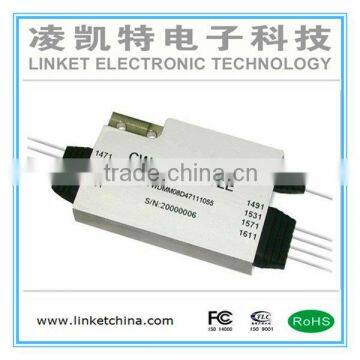

Passive Mini CWDM Module

Changzhou LINKET Electronics Technology Co., Ltd.
Passive Mini CWDM Module thumbnail-1
Passive Mini CWDM Module photo-1
US$ 60 - 380 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LINKET
Model Number:
2 channel CWDM with SC/UPC Connector
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzheng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LINKET
Model Number 2 channel CWDM with SC/UPC Connector
Product Description

1. Why choose LINKET ?

----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, TD Telecom

----- Largest PLC Splitter Manufacturer in China: 10Kpcs/day, 40% market share

----- Most Professional on Key Technology: Wafer Dicing and Coupling

----- Import wafer only from South Korea and Reliable relationship with wafer suppliers

----- Direct Factory Price



 2. Technical Specs for CCWDM

Item

Unit

Values

Channels Number

-

4

8

Min.

Typ.

Max.

Min.

Typ.

Max.

Channel Space

nm

20

Central Wavelength









1271/1291/1311/1331/1351/1371/1391/1411/1431/

1451/1471/1491/1511/1531/1551/1571/1591/1611

Operating wavelength

nm

1260-1460 or 1460-1620 or 1260-1620

Passband

nm

λITU±6.5

CWDM Channel Insertion Loss

dB

0.8

1.3

1.5

1.0

2.2

2.8

Adjacent Channel Isolation

dB

30

-

-

30

-

-

Non-adjacent Channel Isolation

dB

40

-

-

40

-

-

Polarization Mode Dispersion

ps

-

-

0.2

-

-

0.2

Polarization Dependent Loss

dB

-

-

0.2

-

-

0.2

Return Loss

dB

40

45

-

40

45

-

Directivity

dB

50

55

-

50

55

-

Insertion Loss Temperature Sensitivity

dB/°C

0.005

-

-

0.005

-

-

Wavelength Temperature Shifting

nm/°C

0.002

-

-

0.002

-

-

Power (max.)

mW

-

300

500

-

300

500

Operation Temperature

°C

-10~+70

Storage Temperature

°C

-40~+85

Package Dimension

mm

50×28.8×6.5 or customized

 Note: 1. All parameters are for device without connectors.

2. Special specifications can be customized according to customer requirements.

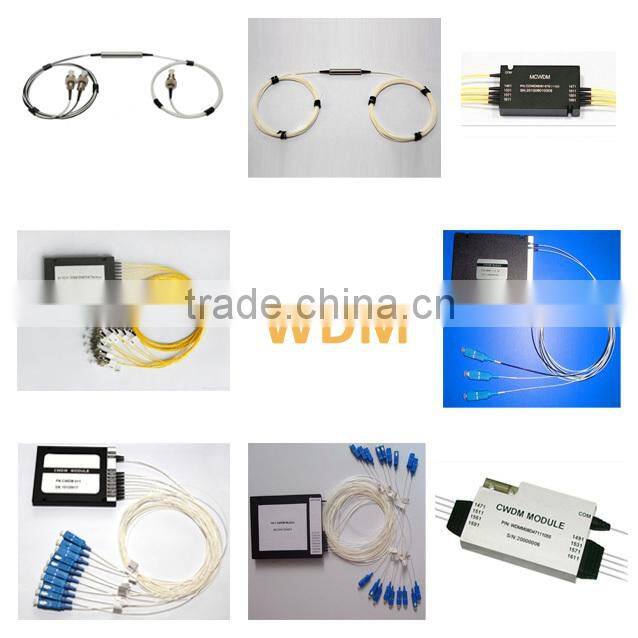

3. Different Models

Passive Mini CWDM Module



Company Information

1. Our Advantage- Integrated Total Chain, Direct Factory Price



Production/Manufatcurer LevelCut Wafer and Produce ChipsMake V-GrooveMake Fiber ArrayCouplingProduce Patch Cords and Install Connector
1st Level (LINKET)√√√√√
2nd Level √√√√
3rd Level  √√√
4th Level   √√
5th Level    √
LINKET intergrates the total chain, is the top-level PLC Splitter manufacturer in China. With over 10K/day production capacity, our PLC Splitters occupy over 40% market share in China.

2. CE, TLC, ISO 9001 Certified

Passive Mini CWDM Module

3. Workshop Overview

Passive Mini CWDM Module
